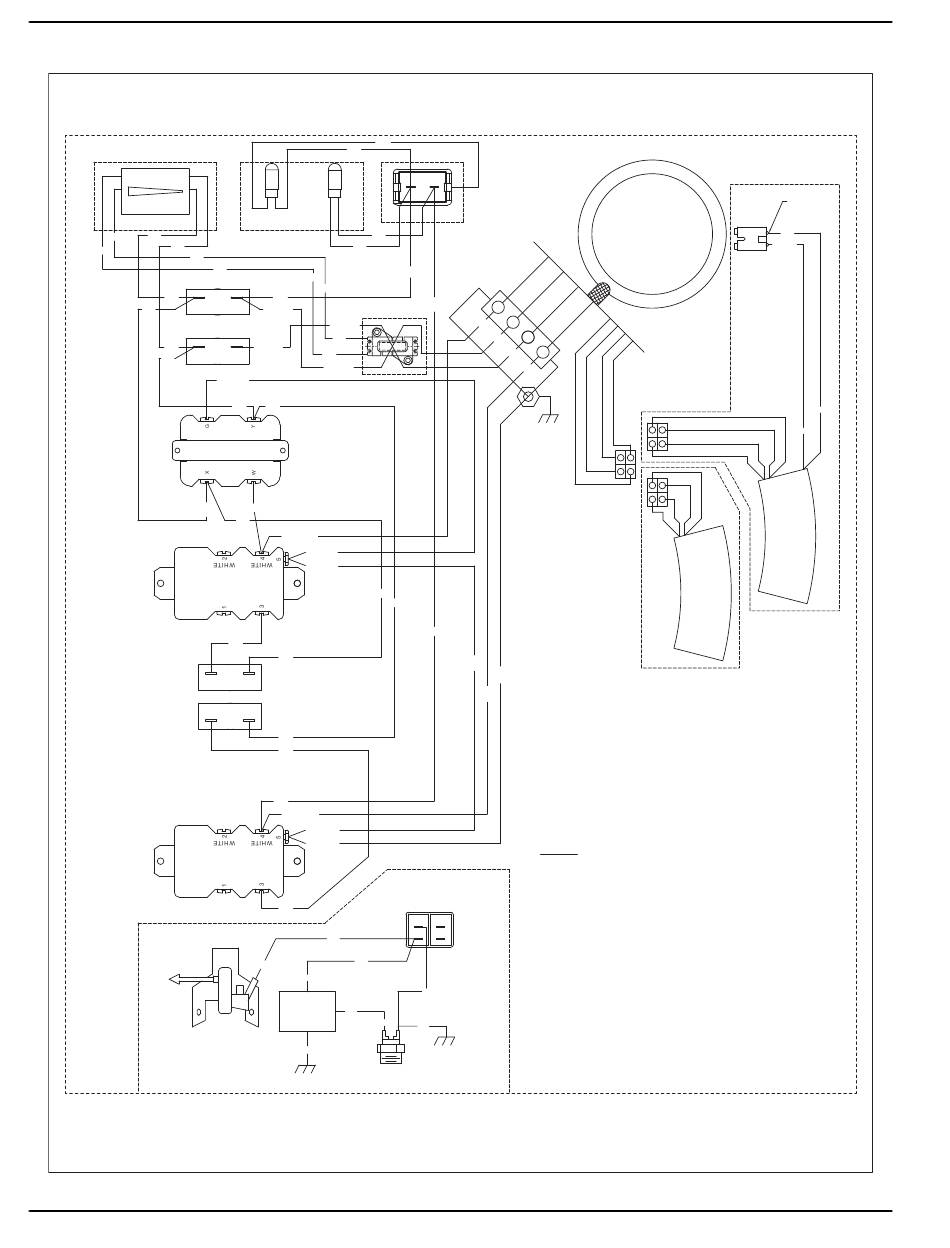

Wiring Diagram and Electrical Schematic, XG6500 Drawing No. 0H2780-F

PBAR
BLK
BLK
RED
RED
BLK
CB 1
BLK
BLK
CB 2
RED
RED
BLK
RCT B
20A GFCI
NEMA 5-20R
RCT C
20A GFCI
NEMA 5-20R
SP
REVISION: F
DATE: 8/21/09
90
RED
BLK
LED
BLK
BLU
RED
RED
BLK
BLK
44(BLK)
ICT
11(RED)
BLK
11(RED)
RED
44(BLK)
GRN/YEL
RED RED
RCT A
30A NEMA L14-30R
WHT
BLK
33(WHT)
GRN/YEL
GRN/YEL
BLK
HOT HOT
RED
BLK
BLK
CB 3 20A
CB 4 20A
RED
RED
WHT
22(WHT)
GRN/YEL
GRN/YEL
HOT HOT
RED
IM
WHT
WHT
WHT
WHT
LOW OIL
SHUTDOWN
BLK
MODULE
BLK
GRN
HM
BLK
TB
WHT
L1
L2
33
R1
44
R2
11
22
GRD
WHT
GRN/
YEL
GRN/
YEL
22
(WHT)
LEGEND:
AVR - AUTOMATIC VOLTAGE REGULATOR
BA - BRUSH ASSEMBLY
ENGINE WIRING
C1 - AVR OR CAP CONNECTOR
CAP - CAPACITOR
SW1
CB 1 - *PUSH BUTTON CIRCUIT BREAKER
CB 2 - *PUSH BUTTON CIRCUIT BREAKER
CB 3 - 20AMP PUSH BUTTON CIRCUIT BREAKER
CB 4 - 20AMP PUSH BUTTON CIRCUIT BREAKER
IM - IGNITION MODULE
ICT - IDLE CURRENT TRANSFORMER (IF EQUIPPED)
HM - HOUR METER (IF EQUIPPED)
LED - PANEL ILLUMINATION (IF EQUIPPED)
LOP - LOW OIL PRESSURE
BLK
PBAR - POWERBAR LOAD INDICATOR (IF EQUIPPED)
RCT A - RECEPTACLE [120/240VAC 30A NEMA L14-30R]
RCT B - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
RCT C - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
BLK
SP - SPARK PLUG
SW1 - RUN-STOP SWITCH
TB - ALTERNATOR TERMINAL BLOCK
LOP
* - 5kW AND 5.5kW = 25AMP; 6.5kW, 7.0kW = 30AMP
CLOSEST TO
BEARING
BA
WHT
STATOR
RED(+)
C1
RED(+)
AVR
CAP
FOR BRUSH TYPE
ALTERNATOR
FOR CAPACITOR EXCITATION
TYPE ALTERNATOR
WIRING - DIAGRAM
GP/XG5000-GP/XG8000
DRAWING #: 0H2780
