Wiring Diagram And Electrical Schematic, Hl6500E Drawing No. 0L2474-A - Generac Power Systems XT-EFI Series Manual

50/60 hz gc/rs/xc/xg/xp//hl/xt and portable generators
Hide thumbs
Table of Contents

Advertisement

Section 7 Electrical Data

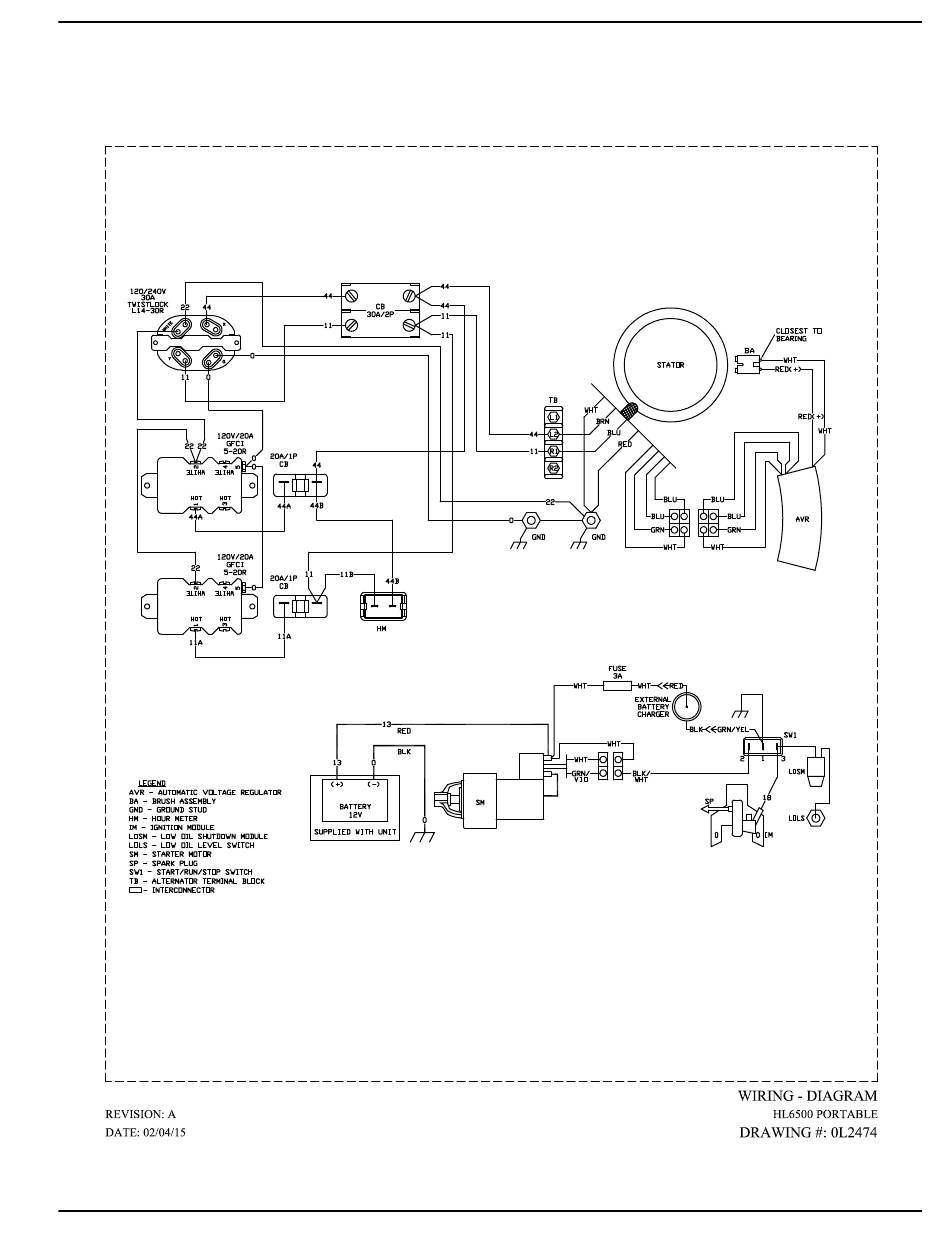

Wiring Diagram and Electrical Schematic, HL6500E Drawing No. 0L2474-A

Diagnostic Repair Manual
