Section 7 Electrical Data

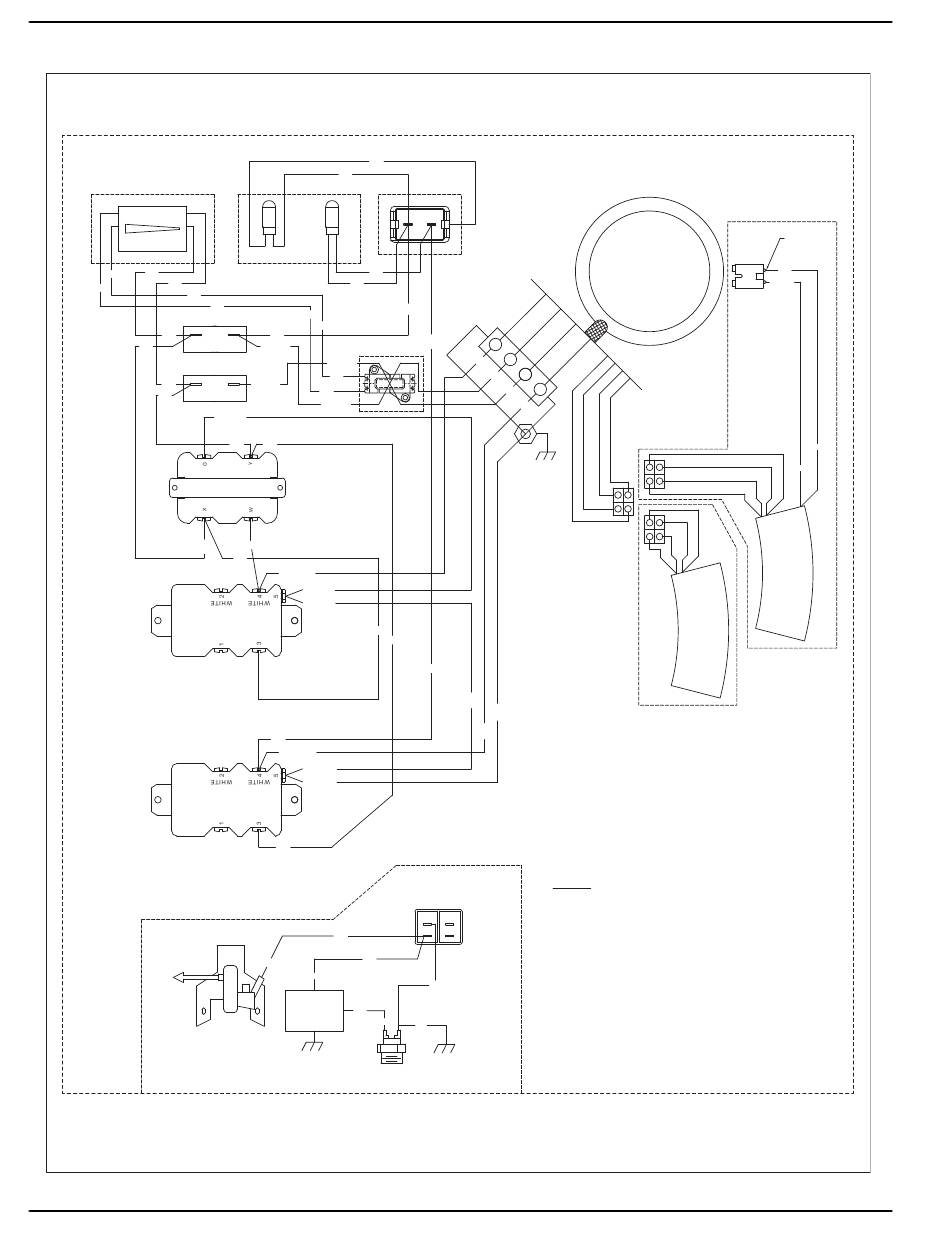

Wiring Diagram and Electrical Schematic, XG4000 Drawing No. 0H3339-E

PBAR
BLK
BLK
RED
RED
BLK
CB 1 20A
BLK
BLK
CB 2 20A
RED
RED
BLK
RCT B
20A GFCI
NEMA 5-20R
RCT C
20A GFCI
NEMA 5-20R
SP
REVISION: E
DATE: 8/12/09
84
RED
BLK
LED
RED
BLK
RED
RED
BLK
BLK
44(BLK)
ICT
11(RED)
BLK
11(RED)
RED
44(BLK)
GRN/YEL
RED RED
RCT A
20A NEMA L14-20R
WHT
BLK
33(WHT)
GRN/YEL
GRN/YEL
BLK
HOT HOT
RED
WHT
22(WHT)
GRN/YEL
GRN/YEL
HOT HOT
RED
IM
WHT
WHT
WHT
WHT
LOW OIL
SHUTDOWN
BLK
MODULE
BLK
HM
BLK
TB
WHT
L1
33 L2
R1
44
11 R2
22
GRD
WHT
GRN/
YEL
GRN/
YEL
22
(WHT)
ENGINE WIRING
LEGEND:
SW1 AVR - AUTOMATIC VOLTAGE REGULATOR
BA - BRUSH ASSEMBLY
C1 - AVR OR CAP CONNECTOR
CAP - CAPACITOR
CB 1 - 20AMP PUSH BUTTON CIRCUIT BREAKER
CB 2 - 20AMP PUSH BUTTON CIRCUIT BREAKER
IM - IGNITION MODULE
ICT - IDLE CURRENT TRANSFORMER (IF EQUIPPED)
HM - HOUR METER (IF EQUIPPED)
BLK
LED - PANEL ILLUMINATION (IF EQUIPPED)
LOP - LOW OIL PRESSURE
PBAR - POWERBAR LOAD INDICATOR (IF EQUIPPED)
RCT A - RECEPTACLE [120/240VAC 20A NEMA L14-20R]
BLK
RCT B - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
RCT C - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
SP - SPARK PLUG
LOP
SW1 - RUN-STOP SWITCH
TB - ALTERNATOR TERMINAL BLOCK
CLOSEST TO
BEARING
BA
WHT
STATOR
RED(+)
C1
RED(+)
AVR
CAP
FOR BRUSH TYPE
ALTERNATOR
FOR CAPACITOR EXCITATION
TYPE ALTERNATOR
WIRING - DIAGRAM
GP/XG4000
DRAWING #: 0H3339
