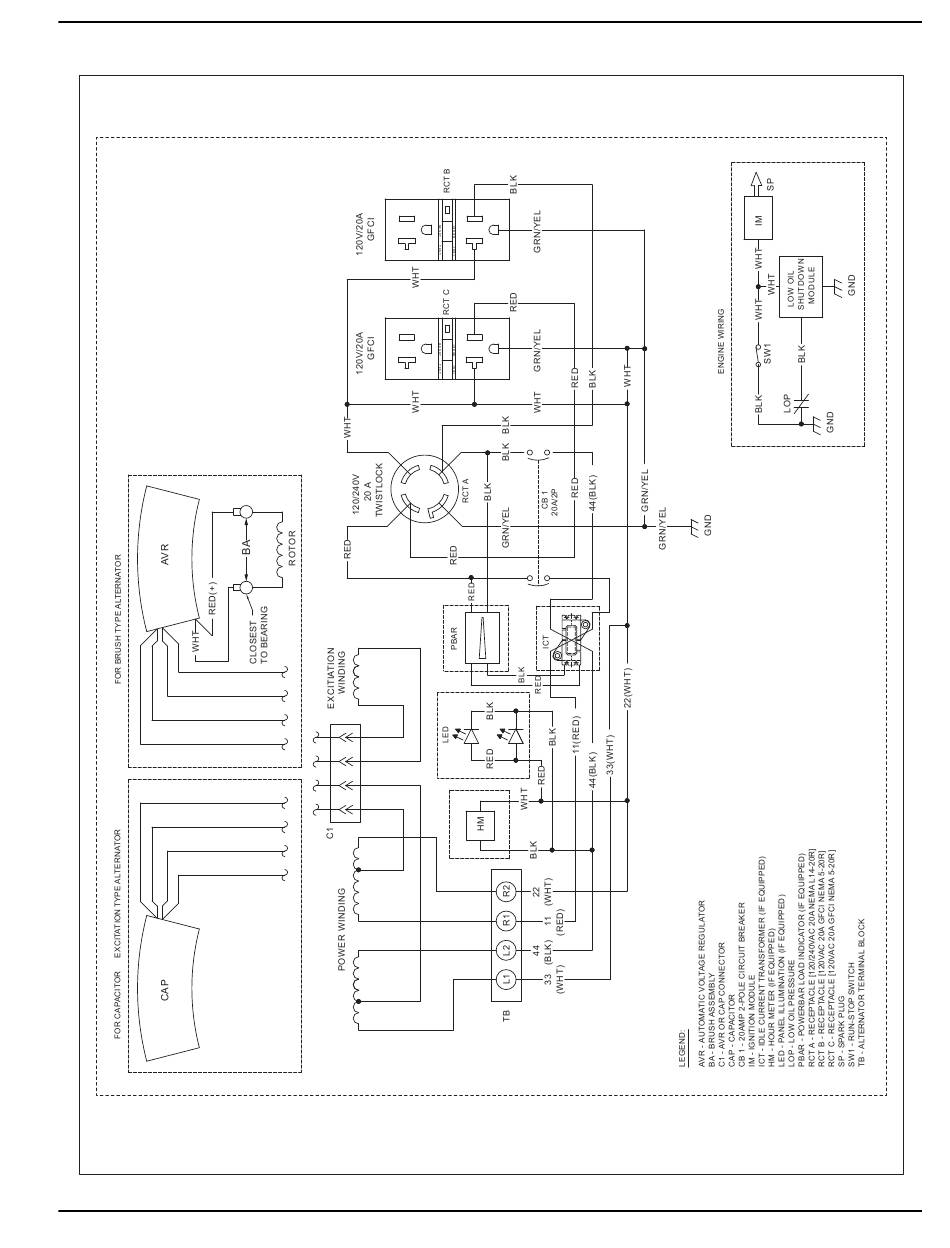

Wiring Diagram and Electrical Schematic, XG4000 Drawing No. 0H5278-A
REVISION: A
DATE: 9/09/09
Diagnostic Repair Manual
Section 7 Electrical Data
SCHEMATIC - DIAGRAM
XG4000 CAL/CSA
DRAWING #: 0H5278
