Generac Power Systems XT-EFI Series Manual page 91

50/60 hz gc/rs/xc/xg/xp//hl/xt and portable generators
Hide thumbs
Table of Contents

Advertisement

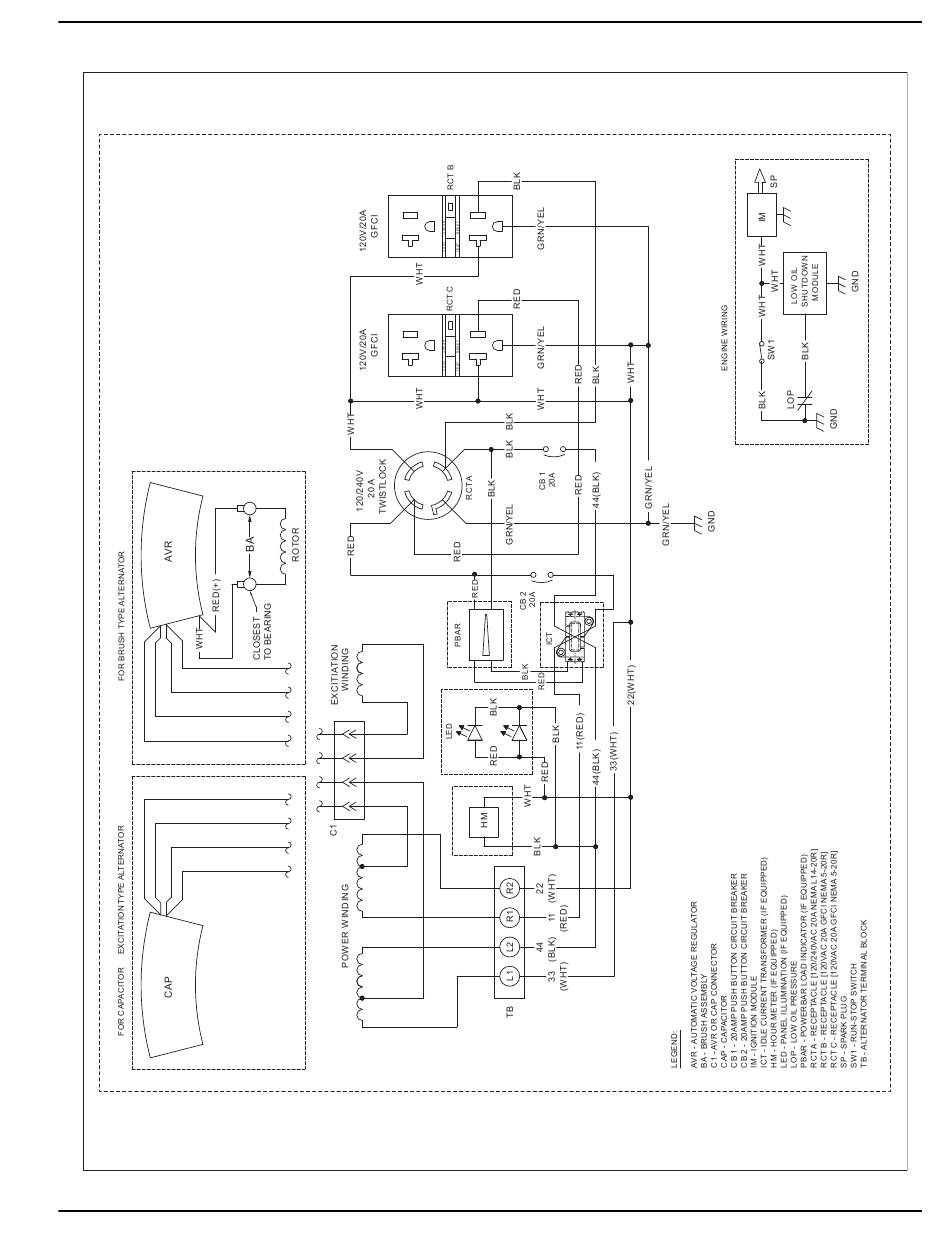

Wiring Diagram and Electrical Schematic, XG4000 Drawing No. 0H3339-E
REVISION: E
DATE: 8/12/09
Diagnostic Repair Manual
Section 7 Electrical Data
SCHEMATIC - DIAGRAM
GP/XG4000
DRAWING #: 0H3339
