Instrument Configuration

NOTE:
Instrument configuration can also be modified through DataView
NOTE:
The instrument must be configured the first time it is used. The configuration
is saved in memory when the instrument is turned OFF.

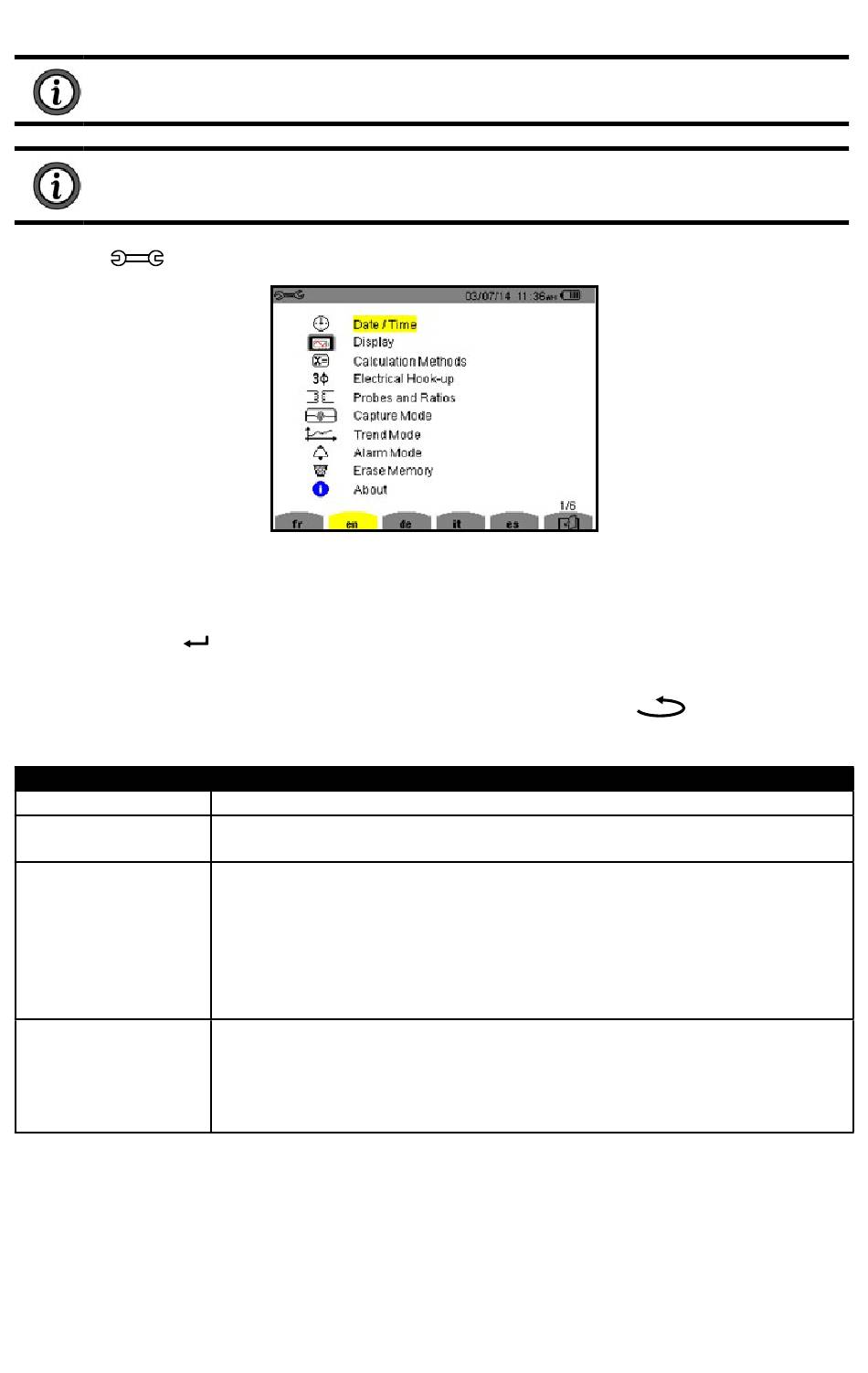

Press the button to configure the unit. The following sub-menus appear:
• Press the yellow button corresponding to the language to set the display language.
• The parameter that is ready to be configured will be highlighted in yellow. To move to a
different parameter, use the ▲ and ▼ buttons.
• Press the Enter
• Use the ◄ and ► buttons to change a value or setting.
• When finished, return to the Configuration menu by pressing the
PARAMETER
Date / Time
Display
Calculation Meth-
ods
Electrical Hook-up
button to select a parameter.
Sets the date and time format
Adjusts the contrast and brightness of the display;
Defines the color of the voltage and current curves
Determines if harmonics are used or not used in calculations of reac-
tive quantities
(power and energy)
• With harmonics: Harmonics are taken into account when calculating
reactive parameters.
• Without harmonics: Only the fundamental part is used for the calcu-
lation of reactive parameters
Determines the type of connection to the network
• Single-Phase
• Split-Phase
• 3-Phase 4-Wire
• 3-Phase 5-Wire
FUNCTION
software.
®
button.
