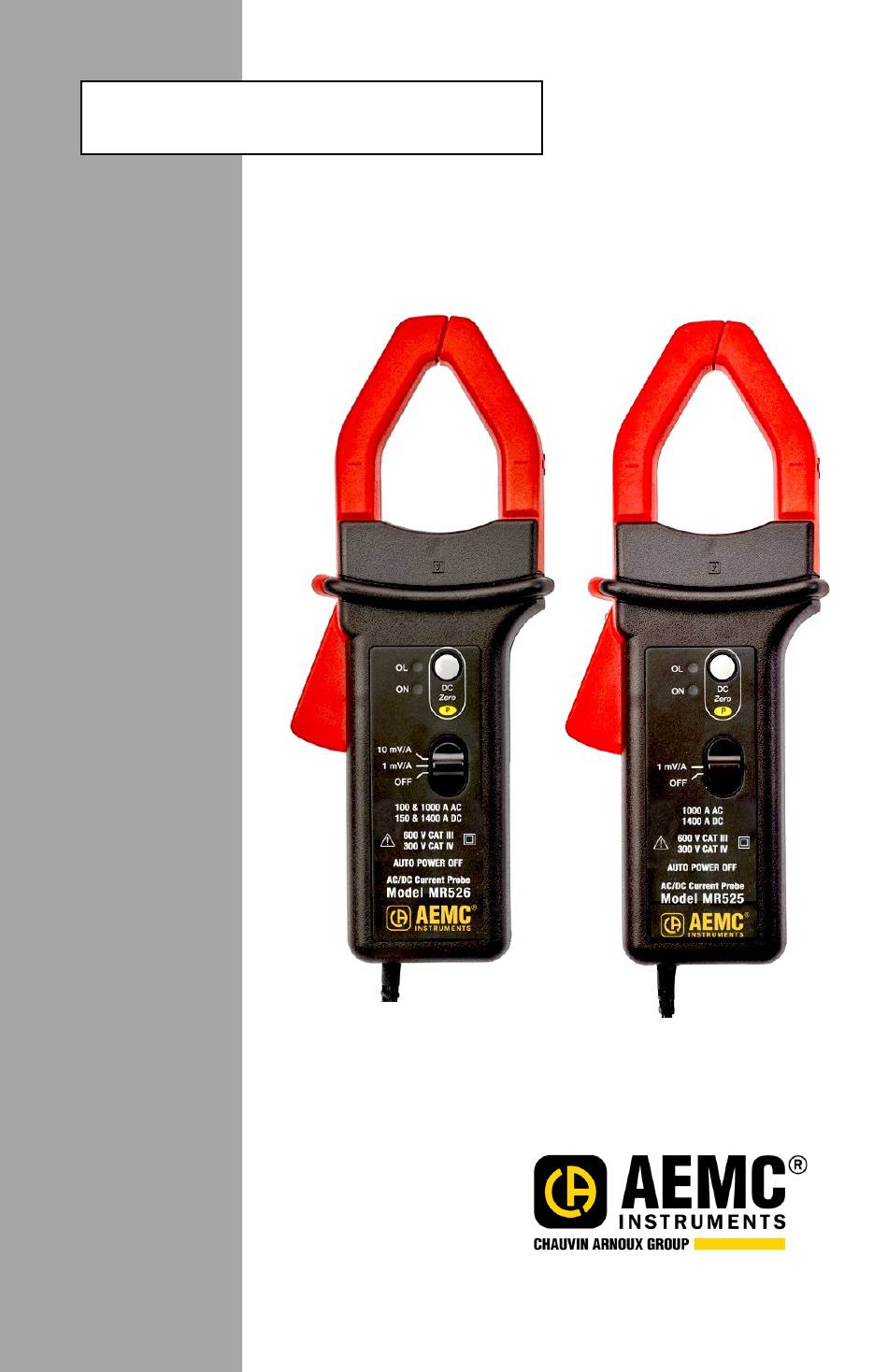

- Page 1 MR525 ■ AC/DC CURRENT PROBE MR526 ENGLISH User Manual...
- Page 2 Refer to our repair and calibration section at www.aemc.com Serial #: 1200.81 / 1200.83 Catalog #: MR525/ MR526 Model #: Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: ® Chauvin Arnoux , Inc. ® d.b.a AEMC Instruments www.aemc.com Current Probe Models MR525/526...
-
Page 3: Table Of Contents
3.9 Electromagnetic Compatibility ................21 4 MAINTENANCE ..................... 22 4.1 Cleaning ........................ 22 4.2 Battery Replacement ................... 22 REPAIR AND CALIBRATION ................23 TECHNICAL AND SALES ASSISTANCE ............23 LIMITED WARRANTY ..................24 Warranty Repairs ....................... 24 Current Probe Models MR525/526... - Page 4 Thank you for purchasing the Current Probe MR525 or MR526. For best results from your instrument and for your safety, read the following operating instructions carefully and comply with the precautions for use. This instrument is compliant with the IEC 61010-2-032 safety standard for voltages of 300V with respect to earth in measurement category IV, or 600V in category III.
- Page 5 When handling the instrument, keep your fingers behind the physical guards. Use suitable means of protection. All troubleshooting and metrological checks must be performed by competent and accredited personnel. Current Probe Models MR525/526...
- Page 6 Save the damaged packing container to substantiate your claim. Ordering Information AC/DC Current Probe Model MR525 ........... Cat. #1200.81 Includes 9V battery, multi-language safety data sheet and user manual AC/DC Current Probe Model MR526 ........... Cat. #1200.83...
-
Page 7: Description

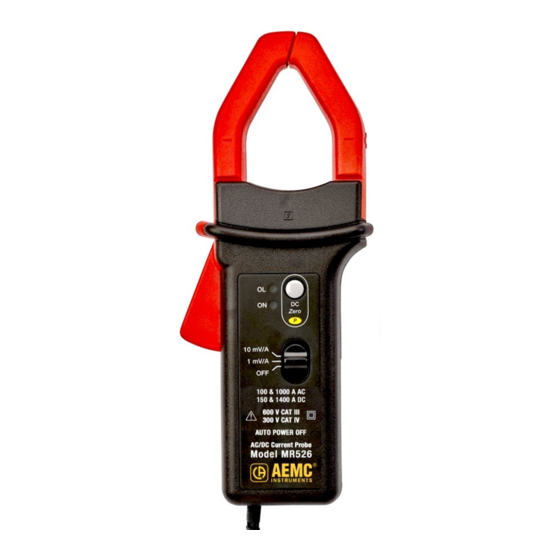

1 DESCRIPTION The Models MR525 and MR526 are clamp-on current probes that measure DC currents up to 1400A, AC currents up to 1000A (1400A peak), and combined AC+DC currents without opening the circuit in which the currents flow. They indicate the shape and amplitude of the current measured in the form of a voltage. -
Page 8: Interface
Arrow indicating current flow direction DC Zero button OL (overload) and ON indicators. ON is green when Auto Standby is enabled, yellow when it disabled. Slide switch (2-position for MR525, 3-position for MR526) USB port Trigger Hand guard Mobile jaw... -
Page 9: Operation
When operating on external power, the Auto Standby feature is disabled. The color of the ON indicator shows whether automatic standby is enabled (green) or disabled (yellow). Current Probe Models MR525/526... -
Page 10: Turning On The Instrument
2.3 Turning ON the Instrument Turn on the clamp by pushing the slide switch to the 1mV/A or 10mV/A setting: 1mV/A corresponds to the 1400A range (MR525 and MR526) 10mV/A corresponds to the 150A range (MR526) The green ON indicator should light up: If indicator blinks, less than 4 hours of battery life remains ... -
Page 11: Measurements
Figure 3 (MR526 shown) 2.6.2 Converting to Current The MR525 and MR526 can both measure current up to 1400A, with 1mV of output corresponding to 1A. In addition, the MR526 provides a second measurement range up to 150A, with 10mV corresponding to 1A. -
Page 12: Specifications
1000 to 1400 Measurement range AC/DC AC/DC AC/DC ≤±(1.5%R + Intrinsic uncertainty ≤±2.5%R ≤±4%R ≤±5%R 1 mV) Phase error (45 to 65Hz) Specified 3 to 200A 200 to 1000A Measurement range Phase shift ≤ -2° ≤ -1.5° Current Probe Models MR525/526... - Page 13 Typical amplitude error curve at 60Hz Error (%) Current (A) Typical amplitude error curve in DC Error (%) Current (A) Typical phase error curve at 60Hz Current Probe Models MR525/526...
-
Page 14: Frequency Specifications, 1Mv/A Sensitivity
Phase shift (°) Current (A) 3.2.2 Frequency Specifications, 1mV/A Sensitivity Bandwidth -3dB: DC to 30kHz Frequency 50Hz 400Hz 1kHz 10kHz Insertion impedance <0.01mΩ 0.05mΩ 0.14mΩ 3.4mΩ Typical amplitude error versus frequency curve at 100A Error (%) Frequency (Hz) Current Probe Models MR525/526... -
Page 15: Electrical Specifications, 10Mv/A Sensitivity (Mr526)
Specified 0.5 to 40A 40 to 100A 100 to 150A AC/DC AC/DC Measurement range Intrinsic uncertainty ≤±(3%R + 5mV) ≤±1.5%R ≤±1.5%R Phase error (45 to 65Hz) Specified Measurement range 10 to 100A Phase shift ≤‑ -2° Current Probe Models MR525/526... - Page 16 Typical amplitude error vs current curve at 60Hz Error (%) Current (A) Typical amplitude error vs current curve in DC Error (%) Current (A) Current Probe Models MR525/526...
-
Page 17: Frequency Specifications, 10Mv/A Sensitivity (Mr526)
Bandwidth -3dB: DC to 30kHz Frequency 50Hz 400Hz 1kHz 10kHz Insertion impedance <0.01mΩ 0.05mΩ 0.14mΩ 3.4mΩ Typical amplitude error versus frequency curve at 100A Error (%) Frequency (Hz) Typical phase versus frequency error curve at 100A Current Probe Models MR525/526... -
Page 18: Operating Limits
In AC: 1000A permanent up to 1kHz from 1kHz, I = 1000/f (kHz) Conductor temperature: ≤ 194°F (90°C), 230°F (110°C) peak Temperature of the jaws: ≤ 176°F (80°C) Curve of derating versus frequency Current (A) Frequency (kHz) Current Probe Models MR525/526... -
Page 19: Variations In The Range Of Use
The instrument is powered by a 9V battery (type 6LR61, 6LF22, or NEDA 1604). The average battery life is 50 hours with an alkaline battery. The instrument can also be powered by an external supply (5V , 100mA) via the type B micro‑USB connector. Current Probe Models MR525/526... -
Page 20: Environmental Conditions
The instrument must be used in the following environmental conditions. °C 1 = Range of reference 2 = Operating range 3 = Storage range Indoor use Degree of pollution: 2 Altitude: < 6500’ (2000m) Transport altitude: ≤ 40,000’ (12,000m) Current Probe Models MR525/526... -
Page 21: Mechanical Specifications
The instrument is compliant with IEC 61010-2-032, 300 V in CAT IV or 600 V in CAT III. Double or reinforced insulation Type of current sensor per IEC 61010-2-032: type A 3.9 Electromagnetic Compatibility The device is in conformity with standard IEC 61326-1. Current Probe Models MR525/526... -
Page 22: Maintenance
4. Insert the replacement battery into the snap-in battery connector, and place it into the battery compartment. 5. Replace the battery compartment cover. Spent batteries must not be treated as ordinary household waste. Take them to the appropriate collection point for recycling. Current Probe Models MR525/526... -
Page 23: Repair And Calibration
® ® Chauvin Arnoux , Inc. d.b.a. AEMC Instruments 200 Foxborough Boulevard Foxborough, MA 02035, USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 techsupport@aemc.com www.aemc.com NOTE: Do not ship instruments to our Foxborough, MA address. Current Probe Models MR525/526... -
Page 24: Limited Warranty
(603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: All customers must obtain a CSA# before returning any instrument. Current Probe Models MR525/526... - Page 25 NOTES Current Probe Models MR525/526...
- Page 26 NOTES Current Probe Models MR525/526...
- Page 27 NOTES Current Probe Models MR525/526...
- Page 28 03/20 99-MAN 100523 v2 Chauvin Arnoux ® , Inc. d.b.a. AEMC ® Instruments 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
