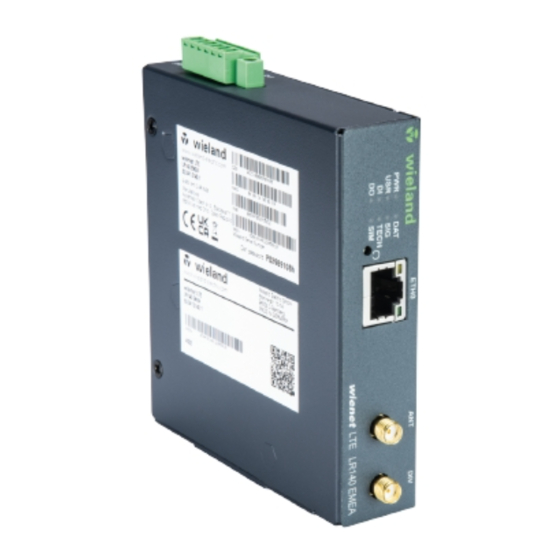

- Page 1 LTE LR140 EMEA Industrial mobile LTE router User manual Doc. No. BA001293 Last Update: 02/2023 (Rev. A)
- Page 2 Wieland Electric. wienet LTE is a trademark of Wieland Electric. Other product or brand names mentioned in this document are brand trademarks or registered trademarks of their respective owners. Usage of these names and trademarks by third parties for their own purposes could violate the rights of the owners.
-
Page 3: Table Of Contents
Access to the Internet from LAN Backup access to the Internet (from LAN) Secure networks interconnection or using VPN Mounting and Removal Mounting Recommendations DIN Rail Mounting Removing from the DIN rail Wall mounting clip Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) - Page 4 Router Configuration Technical Specifications Basic Parameters Standards and Regulations Type Tests and Environmental Conditions Parameters of Cellular Module Technical parameters of the I/O port System Configuration Troubleshooting Disposal Service and Support Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A)
-
Page 5: About This Manual
• Those who can prove that they have the corresponding training and already have corresponding basic knowledge of commissioning electrical installations. • System integrators • Qualified electricians • Electrical system operators Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 6: Symbols And Notations
Notes concerning the special functions of the device. NOTICE Instructions also tell you about a potentially harmful situation. If it is not avoided, the system can be damaged or something in their environment. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 7: Safety
All antennas, antenna cables and wiring have not been evaluated as external wiring. Provision shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 140 % of the rated voltage when applies in Zone 2 environments. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 8: General Safety Instructions
• The router may cause interference when used in close proximity to TV sets, radio receivers or personal computers. • It is recommended that you create an appropriate copy or backup of all important settings that are stored in the memory of the device. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 9: Product Overview
• Security system • Telematic • Remote monitoring • Vending and dispatcher machines Router Versions The wienet LTE LR140 EMEA router is supplied in the following version, see Table 2. Table 2: Router versions Type Wi-Fi LR140 EMEA 1 ×... -
Page 10: Delivery Identification
Order codes overview is shown in Table 4. Table 4: Order Codes Overview Product name Article number Features – interfaces LTE LR140 EMEA 83.041.0140.1 1× ETH, 1× DI, 1× DI, 1× SIM Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 11: Hardware Overview
The router case preview is shown in Figure 3and Figure 4. A short description of hardware parts of the router is listed in Table 5, including the links to the chapters with a detailed description. Figure 3: Front view Figure 4: Rear view Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 12: Package Contents
The router is delivered without additional parts as standard. If you require a DIN rail, this can be found under item number F0.000.0053.8. Table 6: Package Contents Item# Description Figure Q'ty router 1 pcs 6-pin terminal 1 pcs Wall mounting kit with screws Installation instructions Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 13: Product Dimensions
The dimensions of the product can be found in Figure 5and Figure 6. Please note that all sizes are indicated in millimeters. Figure 5: Product Dimensions – Front View Figure 6: Product Dimensions (with wall mounting clip) – Top View Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 14: Product Usage Examples
The router is primarily intended for these four basic situations. Access to the Internet from LAN Figure 7: Access to the Internet from LAN Backup access to the Internet (from LAN) Figure 8: Backed up access to the Internet Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 15: Secure Networks Interconnection Or Using Vpn
Product Usage Examples Secure networks interconnection or using VPN Figure 9: Using VPN Tunnel Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 16: Mounting And Removal
To ensure the correct functioning of the router we recommend the use of an earth bonding distribution frame for the grounding of the grounding screw, see chapter 6.4 "Power Supply ", p. 20. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 17: Din Rail Mounting
4 mm. More detailed information about the installation dimensions can be found Figure 6 in chapter 3.8 "Product Dimensions", p. 13. Tightening the screws When mounting the wall mounting clip, tighten the screws with a max. torque of 0.4 Nm. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 18: Hardware Functionality
• NOTICE Recommended tightening moment for screwing the antenna to the SMA connector is 0.9 Nm. • The diversity antenna improves the radio capability of the router at low signal strength. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 19: Ethernet Interfaces
Receive Data – positive pole — — — — RXD- Receive Data – negative pole — — — — The isolation barrier of the Ethernet ports against the ground is 1500 V. NOTICE Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 20: Power Supply
If recommended for the installation environment, protect the router by grounding it properly by the grounding screw on the right panel, see Figure 15. Figure 15: Position of the Grounding Screw Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 21: I/O Port Interfaces
The functional connection scheme for the binary input and binary output can be found in Figure 17. Figure 17: Functional Scheme of the Binary Interface Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 22: Led Status Indication
SIM card problem (missing SIM or PIN not entered). ETH0 Green Always on ETH0 Orange The network cable is connected. Orange Blinking Data transmission. Orange The network cable is not connected. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 23: Reset Functions
• If it does not help (router does not start at all), turn off the router configuration (power supply). Push and hold the RST button, then turn on the and reboots the router and hold the RST button for more than 10 seconds. router Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 24: First Use
For security reasons, we highly recommend updating the router's firmware to the latest version regularly. Downgrading the firmware to an older version than the production version or uploading firmware intended for a different device may cause the malfunction of the device. CAUTION Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) - Page 25 First use Figure 19: Router's Web Interface A detailed description of the router settings in the web interface can be found in the configuration NOTICE manual of the router. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A)
-
Page 26: Technical Specifications
EN 301 489-1, EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 Safety EN 62368-1, IEEE 802.3 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 27: Type Tests And Environmental Conditions
• VSWR: <2:1 (Antenna input impedance response as function of frequency. This shows the antenna resonances and its bandwidth). • SMA: 50 Ω • For good diversity performance, the primary and secondary antennas should have different polarizations. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 28: Technical Parameters Of The I/O Port
The main parameters of the system are listed in Table 17. Table 17: System Configuration Other technical parameters CPU architecture ARM926EJ-S CPU frequency 600 MHz Flash Memory 64 MB NOR Flash RAM size 128 MB Watchdog HW Watchdog Battery Backup RTC Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 29: Troubleshooting
• It will not work with a private APN. • If the same IP address is recorded in your canonic name as a dynamically assigned address, it means that the operator is using NAT or a firewall. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) - Page 30 Port 22 of the router. The username and password are the same as for the web interface. Telnet can be activated here: "Configuration", "Services", "Telnet" section. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A)
-
Page 31: Disposal
At the end of its life this product MUST NOT be mixed with other commercial waste for disposal. The device contains the battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed apart accordingly. Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) -
Page 32: Service And Support
Service and Support SERVICE AND SUPPORT Service-Hotline: +49 951 9324-991 E-Mail: industry@wieland-electric.com Web: http://eshop.wieland-electric.com Wieland Electric GmbH Brennerstraße 10 – 14 DE-96052 Bamberg Wieland Electric GmbH | BA001293 | 02/2023 (Rev. A) - Page 33 Wieland Electric GmbH Brennerstraße 10 – 14 DE-96052 Bamberg Tel +49 951 9324-0 Fax +49 951 9324-198 info@wieland-electric.com www.wieland-electric.com...
