wienet LTE LR240/241
Industrial mobile LTE router
Manual
Doc. No. BA001291
Last Update: 07/2022 (Rev. A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wienet LTE LR240 and is the answer not in the manual?

Questions and answers

Related Manuals for Wieland wienet LTE LR240

Summary of Contents for Wieland wienet LTE LR240

  • Page 1 LTE LR240/241 Industrial mobile LTE router Manual Doc. No. BA001291 Last Update: 07/2022 (Rev. A)
  • Page 2 Wieland Electric. wienet LTE is a trademark of Wieland Electric. Other product or brand names mentioned in this document are brand trademarks or registered trademarks of their respective owners. Usage of these names and trademarks by third parties for their own purposes could violate the rights of the owners.

  • Page 3: Table Of Contents

    Access to the Internet from LAN Backed up access to the Internet (from LAN) Secure networks interconnection or using VPN Serial Gateway Mounting and Removal Mounting Recommendations DIN Rail Mounting Removing from the DIN rail Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)
  • Page 4 Powering up the Router Router Configuration Technical Specifications Basic Parameters Standards and Regulations Type Tests and Environmental Conditions Parameters of Cellular Module Parameters of I/O Ports System Configuration Troubleshooting Disposal Service and Support Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 5: About This Manual

    This manual is intended for: • Those who can prove that they have the corresponding training and already have corresponding basic knowledge of commissioning electrical installations. • System integrators • Electricians • Electrical system operator Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 6: Symbols And Notations

    Refer to notes for special features of a device. NOTE Instructions also tell you about a potentially harmful situation. If it is not avoided, the system can be damaged or something in their environment. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 7: Safety

    Input voltage must not exceed 48 V DC. This equipment is not suitable for use in locations where children are likely to be present. The SIM card could be swallowed by small children. DANGE R Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)
  • Page 8 • The router may cause interference when used in close proximity to TV sets, radio receivers or personal computers. • It is recommended that you create an appropriate copy or backup of all important settings that are stored in the memory of the device. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 9: Product Overview

    • Remote monitoring • Vending and dispatcher machines Router Versions The wienet LTE LR240/241 router is supplied in the following versions, see Table 2. All versions are available in metal box according to customer requirements. Table 2: Router versions Type...

  • Page 10: Delivery Identification

    Features – interfaces name LTE LR240 83.041.0240.1 2× ETH, 1Di, 1DO, 2× SIM, 1× RS232, 1× RS485 LTE LR241 83.041.0241.1 2× ETH, 1Di, 1DO, 2× SIM, 1× RS232, 1× RS485, WLAN Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 11: Hardware Overview

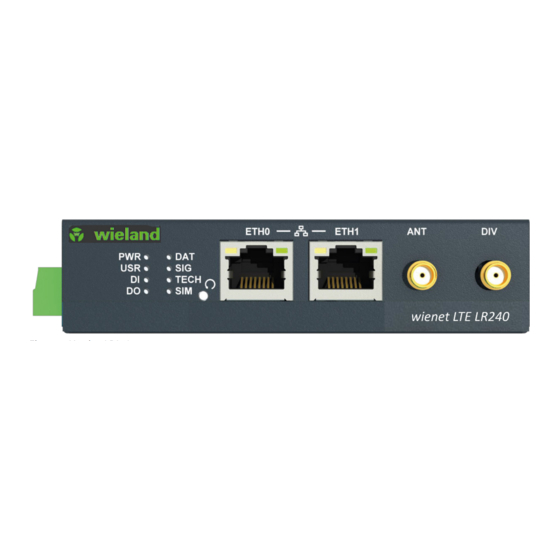

    The router case preview is shown in Figure 3 and Figure 4. A short description of hardware parts of the router is listed in Table 5, including the links to the chapters with a detailed description. Figure 3: Front view Figure 4: Rear view Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 12: Package Contents

    Wall mounting clip, included as standard accessories. Package Contents The standard set of router includes items listed in Table 6. Table 6: Package Contents Item# Description Figure Q'ty Router 1 pcs DIN rail clip 1 pcs Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 13: Product Dimensions

    For the dimensions of the product see Figure 5 and Figure 6. Note that all sizes are measured in millimeters. Figure 5: Product Dimensions – Front View Figure 6: Product Dimensions (with wall mounting clip) – Top View Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 14: Product Usage Examples

    The router is primarily intended for these four basic situations. Access to the Internet from LAN Figure 7: Access to the Internet from LAN Backed up access to the Internet (from LAN) Figure 8: Backed up access to the Internet Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 15: Secure Networks Interconnection Or Using Vpn

    Product Usage Examples Secure networks interconnection or using VPN Figure 9: Using VPN Tunnel Serial Gateway Figure 10: Serial Gateway Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 16: Mounting And Removal

    Figure 11. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. CAUTION Figure 11: Position of the DIN Rail Clip Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 17: Removing From The Din Rail

     Push the router down lightly, so the bottom part of the DIN rail clip (hitched to the DIN rail) gets out of the rail.  Pull out the bottom part of the router away from the DIN rail. Figure 12: Removing Router from the DIN Rail Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 18: Hardware Functionality

    • NOTE Recommended tightening moment for screwing the antenna to the SMA connector is 0.9 Nm. • The diversity antenna improves the radio capability of the router at low signal strength. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 19: Ethernet Interfaces

    Receive Data – positive pole — — — — RXD- Receive Data – negative pole — — — — The isolation barrier of the Ethernet ports against the ground is 1500 V. NOTE Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 20: Power Supply

    If recommended for the installation environment, protect the router by grounding it properly by the grounding screw on the right panel, see Figure 16. Figure 16: Position of the Grounding Screw Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 21: I/O Port Interfaces

    8.5 "Parameters of I/O Ports", p.29. The functional scheme of connection for the binary input and binary output is in Figure 18. Figure 18: Functional Scheme of the Binary Interface Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 22: Serial Interfaces

    Table 11: Connection of RS232 Signal mark Description Ground (common with RS485) Received Data Transmit Data Request to Send Clear to Send The serial interfaces are not electrically isolated from the router. NOTE Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 23: Led Status Indication

    Selected 100 Mbps bit rate. ETH1 Green Selected 10 Mbps bit rate. ETH0 Orange The network cable is connected. ETH1 Orange Blinking Data transmission. Orange The network cable is not connected. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 24: Reset Functions

    • If it does not help (router does not start at all), turn off the router Reset default configuration (power supply). Push and hold the RST button, then turn on the and reboots the router and hold the RST button for more than 10 seconds. router Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 25: First Use

    For security reasons, we highly recommend updating the router's firmware to the latest version regularly. Downgrading the firmware to an older version than the production version or uploading firmware intended for a different device may cause the malfunction of the device. CAUTION Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)
  • Page 26 First Use Figure 21: Router's Web Interface A detailed description of the router settings in the web interface can be found in the configuration NOTE manual of the router. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 27: Technical Specifications

    EN 301 489-1, EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 Safety EN 62368-1:2018, IEEE 802.3 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 28: Type Tests And Environmental Conditions

    • VSWR: <2:1 (Antenna input impedance response as function of frequency. This shows the antenna resonances and its bandwidth). • SMA: 50 Ω • For good diversity performance, the primary and secondary antennas should have different polarizations. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 29: Parameters Of I/O Ports

    CPU power 4,72 DMIPS/MHz Flash memory 64 MB NOR Flash • 12 MB for Router Apps • 2 MB for customer data RAM size 128 MB Watchdog HW Watchdog Battery Backup RTC Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 30: Troubleshooting

    Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)
  • Page 31 SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on LR240/241 routers can be enabled here: "Configuration" section, "Services", "Telnet". Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 32: Disposal

    At the end of its life this product MUST NOT be mixed with other commercial waste for disposal. The device contains the battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed apart accordingly. Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)

  • Page 33: Service And Support

    Web: http://eshop.wieland-electric.com Wieland Electric GmbH Brennerstraße 10 – 14 DE-96052 Bamberg UKCA – for UK: Wieland Electric Ltd | Ash House, Tanshire Park | Shackleford Road | Elstead, Godalming GU8 6LB Wieland Electric GmbH | BA001291 | 07/2022 (Rev. A)
  • Page 34 Wieland Electric GmbH Brennerstraße 10 – 14 DE-96052 Bamberg Tel +49 951 9324-0 Fax +49 951 9324-198 info@wieland-electric.com www.wieland-electric.com...

This manual is also suitable for:

Wienet lte lr241
