- Page 1 LR77 v2 Mobile router LTE User manual Doc. no. BA000868 Last updated: 08/2021 (Rev. C)
- Page 2 Wieland Electric. wienet is a trademark of Wieland Electric. Other product or brand names mentioned in this docu- ment are brand trademarks or registered trademarks of their respective owners. Usage of these names and trademarks by third parties for their own purposes could violate the rights of the owners.
-
Page 3: Table Of Contents
LED status indicators 5.6.2 Power connector PWR 5.6.3 Antenna connector ANT 5.6.4 SIM card reader 5.6.5 Ethernet port ETH 5.6.6 PORT1 5.6.7 PORT2 5.6.8 USB port 5.6.9 I/O port 5.6.10 Reset and reboot Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) - Page 4 Technical data of LTE module supporting 450 MHz 7.2.2 Technical data of GPS Technical data of processor Technical data of I/O port Technical data of expansion port Maintenance and troubleshooting Maintenance Troubleshooting Product disposal Service and support Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C)
-
Page 5: About This Document
This manual is aimed at planners, engineers, installers and service personnel who are planning a re- mote control or remote maintenance solution and put into operation. Other applicable documents You can also use our website eshop.wieland-electric.com. You can also download the following files: NOTICE •... -
Page 6: Symbols And Notations
Refer to notes for special features of a device. NOTICE Instructions also tell you about a potentially harmful situation. If it is not avoided, the system can be damaged or something in its environment. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 7: Safety Instructions
• The router may cause interference when used in close proximity to TV sets, radio receivers or personal computers. • It is recommended that you should create an appropriate copy or backup of all the important settings that are stored in the memory of the device. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 8: Router Description
VPN server Wie-Service24. Examples of possible applications • remote support industry • mobile office • fleet management • security system • telematic • telemetric • remote monitoring • vending and dispatcher Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 9: Scope Of Delivery
• assembly instruction In addition to the basic components the following items can be ordered: • Accon NetLink Pro – MPI to Ethernet adapter for S7-Remote-Support • different antennas • power supply Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 10: Router Design

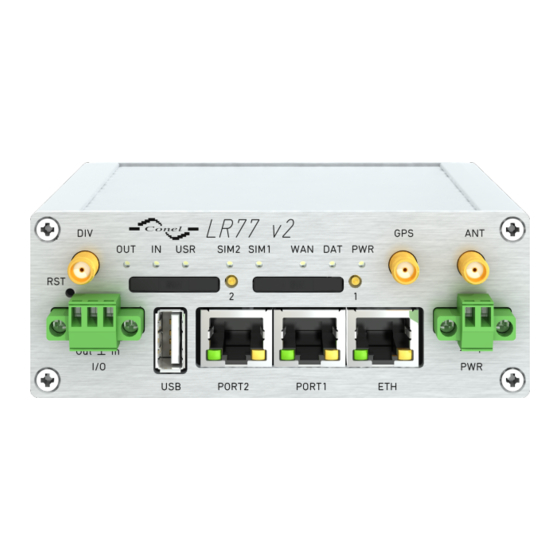

RS-232, RS-485/422, Ethernet, M-Bus, CNT, 3-Port-Switch (together with PORT2) PORT2 RS-232, RS-485/422, M-Bus, WIFI/WLAN, 3-Port-Switch (together with PORT1) Figure 1: Front panel LR77 v2B SL Figure 2: Front panel LR77 v2F SL Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 11: Article Numbers
VPN, IPsec, DHCP (Client/Server), Web-Interface, FTP, NAT, PAT, SNMP, VRRP, DynDNS, NTP, SSH, SMS, eMail, automatic update Article number Port 1 Port 2 Housing 83.041.0500.1 – – Metal 83.041.0505.3 Ethernet – Metal 83.041.0565.3 WIFI/WLAN Metal Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 12: Basic Dimensions Of The Metal Housing
MPI-ETH ADAPTER ACCON-NETLINK-PRO ACCON-NetLink-PRO compacts a handy communica- F0.000.0031.8 tion and programming adapter between PC and S7 controllers. Basic dimensions of the metal housing Figure 3: Basic dimensions of the metal housing Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 13: Mounting Recommendations
Keep a distance of 50 mm between data cables and power supply cables with ~ 230 V/50 Hz. • All signals to sensors must be twisted pairs Figure 5: Cable routing Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 14: Removal From Din Rail
PL-2303 and FTDI USB/RS232 converter. 3-pin Connector for the binary input and output. SIM1 – Holder for first SIM card SIM2* – Holder for second SIM card * only available in full version Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 15: Led Status Indicators
* For value ranges of signal strength see chapter Mobile WAN Status in the Configuration manual, BA001039, see 1.4 Other applicable documents, p. 5. State indication of WAN LED is updated every 10 seconds. NOTICE Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 16: Power Connector Pwr
The positive pole VCC is marked by a red socket on the power. • All metal parts are connected together with the negative pole of power supply (common pole). However, the router box may not be connected to the negative pole properly. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 17: Antenna Connector Ant
The antenna is connected to screw the antenna connector SMA to SMA connector on the router head. (See figure below.) Diversity antenna improves radio features of the router at low signal strength. NOTICE Figure 10: Connecting the antenna Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 18: Sim Card Reader
Make sure that the gold contact side of the SIM card is facing up and orient yourself in the mechani- cal slot on the upper guide grooves. Figure 11: Ejected SIM card Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 19: Ethernet Port Eth
Figure 12: Ethernet port Port ETH is not POE (Power Over Ethernet) compatible. CAUTION Plug Ethernet cable into the RJ45 connector labeled as ETH (see the figure below). Figure 13: Connection Ethernet cable Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 20: Port1
Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal – negative pole Input/Output USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage Figure 15: USB port Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 21: I/O Port
Connect I/O cable into the I/O connector on the router head and tighten locking screws. (See figure below.) Figure 17: Connection I/O cable Circuit example of a binary input or output equipment with router: Figure 18: Connection input and output of router Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 22: Reset And Reboot
After green LED starts to blink it is possible to restore initial settings of the router by pressing button RST on front panel. After press button RST it is restoration of factory configuration and reboot (green LED is on). Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 23: First Use
The web interface can be accessed by entering the IP address of the router into the web browser. The default IP address of the router is 192.168.1.1. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) - Page 24 After successfully entering login information, the user gains access to the router via his internet browser. A detailed description of the router settings via the Web interface can be found in the Configuration NOTICE manual, BA001039, see 1.4 Other applicable documents, p. 5. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C)
-
Page 25: Configuration Over Ssh Or Telnet
Telnet protocol is disabled by default. For a detailed description of SSH and Telnet configuration, see the Configuration manual, BA001039, NOTICE see 1.4 Other applicable documents, p. 5. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 26: Technical Data
Safety • EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, • EN 62311:2008 E-Mark – EMC for • E-Mark homologation number: 10R – 04 7056 devices in trans- portation Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 27: Technical Data Of Mobile Modules
Bit rate 100 Mbps (DL) / 50 Mbps (UL), UE CAT. 3 3GPP rel. 9 standard Supported bandwidths: 5 Mhz, 10 Mhz, 20 Mhz Supported frequencies: B31 (450 MHz) Rated Output Power: B31: Class 3 MIMO (Multi-Input Multi-Output) antenna support Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 28: Technical Data Of Gps
120 mA / max. 30 V Technical data of expansion port Technical data of the expansion ports can be found in the manual of the expansion ports, BA000917, NOTICE see 1.4 Other applicable documents, p. 5. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 29: Maintenance And Troubleshooting
It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router. Available on "LAN Configuration" page in the router Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) - Page 30 SSH client on port 22 of the router. User and password are the same as for the Web inter- face. Telnet on v2 routers can be enabled here: "Configuration" section > "Services" > "Telnet". Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C)
-
Page 31: Product Disposal
The device contains the battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed apart accordingly. Check the terms and conditions of your supplier for disposal information. Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) -
Page 32: Service And Support
49 (0) 951 / 9324-0 49 (0) 951 / 9324-128 E-Mail info@wieland-electric.com http://eshop.wieland-electric.com http://www.wieland-electric.com Admission: Wieland Electric hereby declares that the router narrated in this user's guide fits all basic demands of directive 1999/5/EC (R&TTE). Wieland Electric GmbH | BA000868 | 08/2021 (Rev. C) - Page 33 Wieland Electric GmbH Brennerstraße 10 – 14 DE-96052 Bamberg Tel +49 951 9324-0 Fax +49 951 9324-198 info@wieland-electric.com www.wieland-electric.com...
