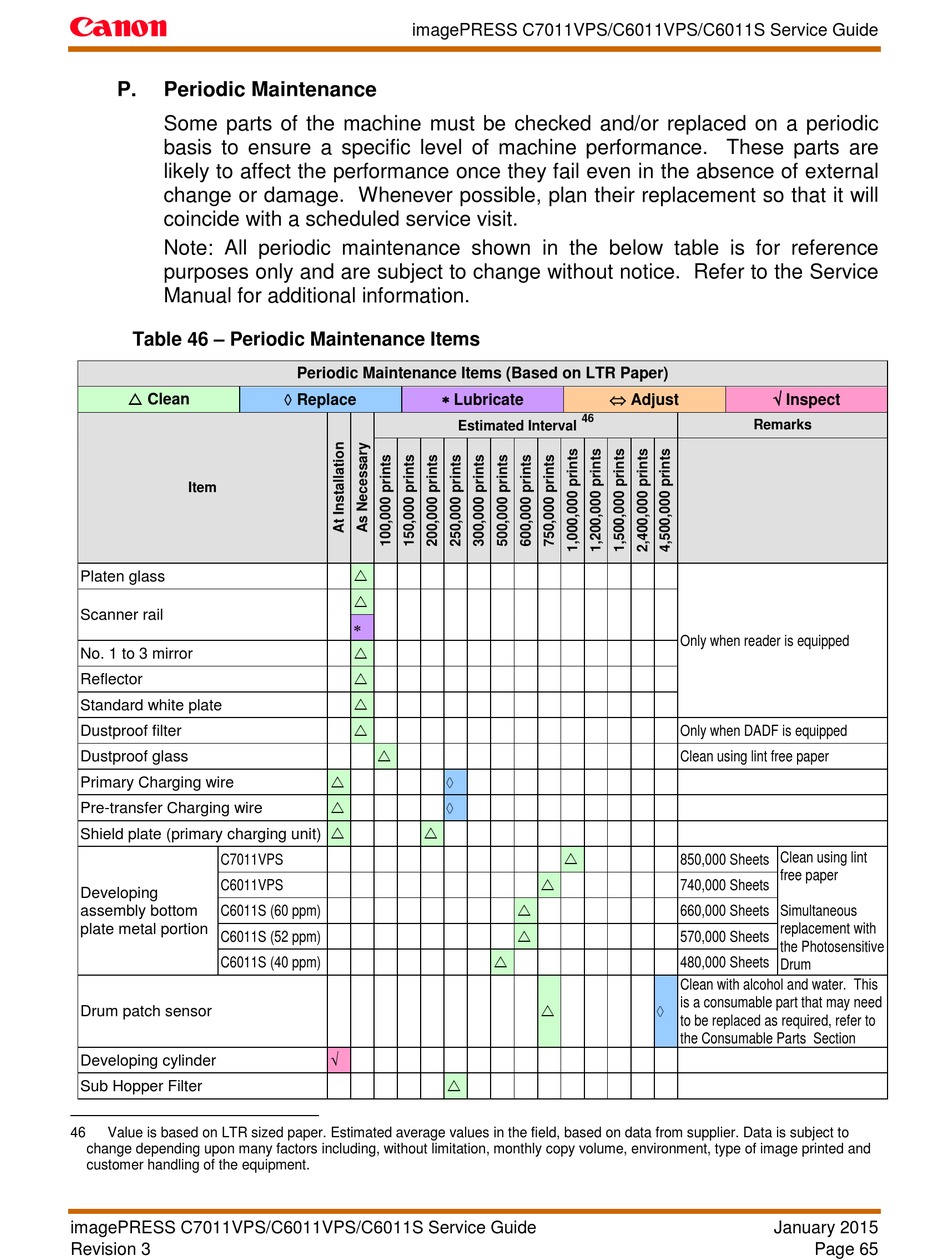

Periodic Maintenance

Some parts of the machine must be checked and/or replaced on a periodic
basis to ensure a specific level of machine performance. These parts are
likely to affect the performance once they fail even in the absence of external
change or damage. Whenever possible, plan their replacement so that it will
coincide with a scheduled service visit.
Note: All periodic maintenance shown in the below table is for reference
purposes only and are subject to change without notice. Refer to the Service
Manual for additional information.
Table 46 – Periodic Maintenance Items
 Clean
Item
Platen glass
Scanner rail
No. 1 to 3 mirror
Reflector
Standard white plate
Dustproof filter
Dustproof glass
Primary Charging wire
Pre-transfer Charging wire
Shield plate (primary charging unit) 
C7011VPS
C6011VPS
Developing
C6011S (60 ppm)
assembly bottom
plate metal portion
C6011S (52 ppm)
C6011S (40 ppm)
Drum patch sensor
Developing cylinder
Sub Hopper Filter
46 Value is based on LTR sized paper. Estimated average values in the field, based on data from supplier. Data is subject to
change depending upon many factors including, without limitation, monthly copy volume, environment, type of image printed and
customer handling of the equipment.
imagePRESS C7011VPS/C6011VPS/C6011S Service Guide
Revision 3
imagePRESS C7011VPS/C6011VPS/C6011S Service Guide
Periodic Maintenance Items (Based on LTR Paper)
◊ Replace ∗ Lubricate
Estimated Interval


∗





 ◊
◊


√

⇔ Adjust
46





◊

√ Inspect
Remarks
Only when reader is equipped
Only when DADF is equipped
Clean using lint free paper
850,000 Sheets Clean using lint
free paper
740,000 Sheets
660,000 Sheets Simultaneous
replacement with
570,000 Sheets
the Photosensitive
480,000 Sheets
Drum
Clean with alcohol and water. This
is a consumable part that may need
to be replaced as required, refer to
the Consumable Parts Section
