Model WS-6020U
Solar Station

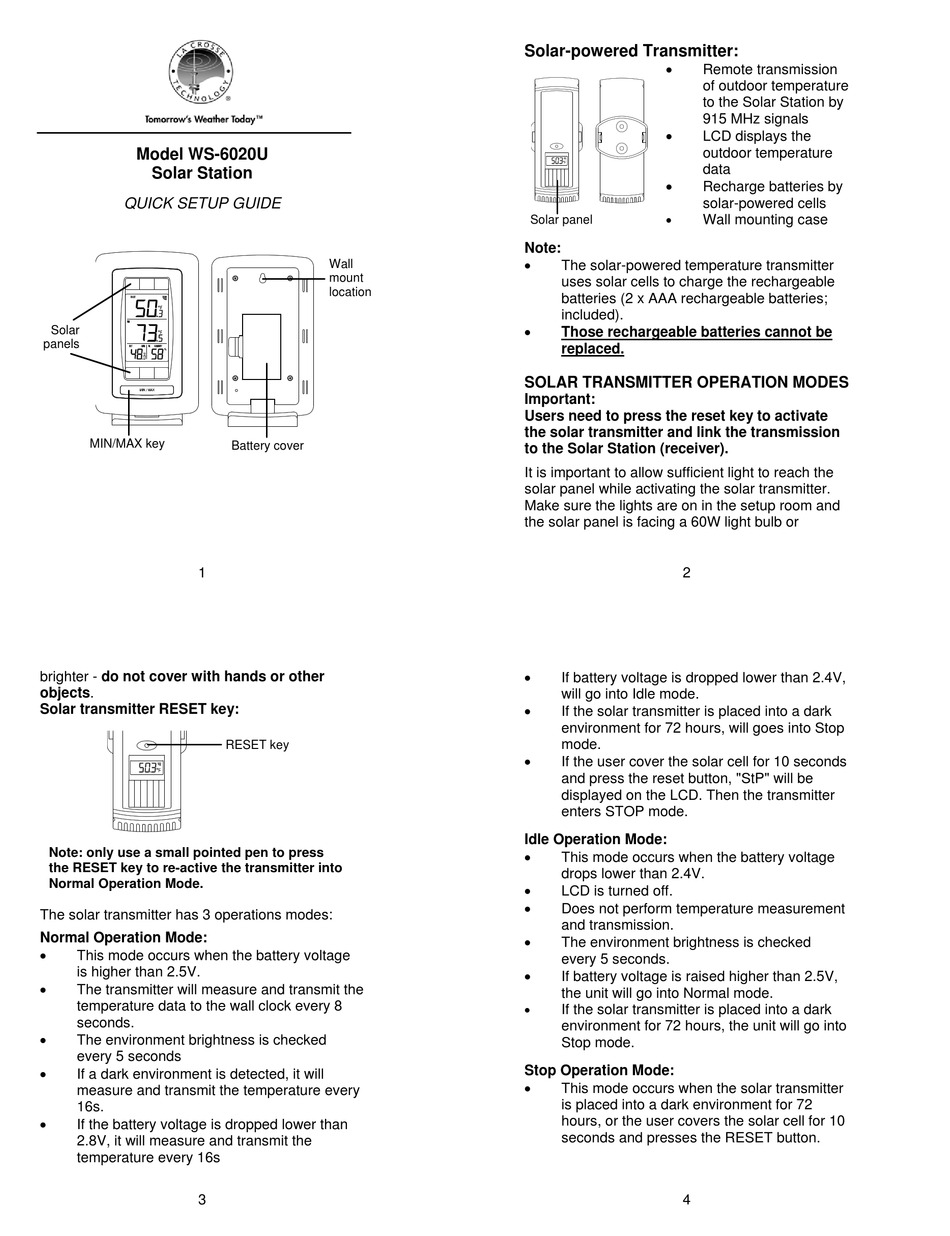

QUICK SETUP GUIDE
Solar
panels
MIN/MAX key
1
brighter - do not cover with hands or other
objects.
Solar transmitter RESET key:
Note: only use a small pointed pen to press
the RESET key to re-active the transmitter into
Normal Operation Mode.
The solar transmitter has 3 operations modes:
Normal Operation Mode:
This mode occurs when the battery voltage
is higher than 2.5V.
The transmitter will measure and transmit the
temperature data to the wall clock every 8
seconds.
The environment brightness is checked
every 5 seconds
If a dark environment is detected, it will
measure and transmit the temperature every
16s.
If the battery voltage is dropped lower than
2.8V, it will measure and transmit the
temperature every 16s
3
Wall
mount
location
Battery cover
RESET key

Solar-powered Transmitter:

Solar panel
Note:
The solar-powered temperature transmitter
uses solar cells to charge the rechargeable
batteries (2 x AAA rechargeable batteries;
included).
Those rechargeable batteries cannot be
replaced.

SOLAR TRANSMITTER OPERATION MODES

Important:
Users need to press the reset key to activate
the solar transmitter and link the transmission
to the Solar Station (receiver).
It is important to allow sufficient light to reach the
solar panel while activating the solar transmitter.
Make sure the lights are on in the setup room and
the solar panel is facing a 60W light bulb or
2
If battery voltage is dropped lower than 2.4V,
will go into Idle mode.
If the solar transmitter is placed into a dark
environment for 72 hours, will goes into Stop
mode.
If the user cover the solar cell for 10 seconds
and press the reset button, "StP" will be
displayed on the LCD. Then the transmitter
enters STOP mode.
Idle Operation Mode:
This mode occurs when the battery voltage
drops lower than 2.4V.
LCD is turned off.
Does not perform temperature measurement
and transmission.
The environment brightness is checked
every 5 seconds.
If battery voltage is raised higher than 2.5V,
the unit will go into Normal mode.
If the solar transmitter is placed into a dark
environment for 72 hours, the unit will go into
Stop Operation Mode:
This mode occurs when the solar transmitter
is placed into a dark environment for 72
hours, or the user covers the solar cell for 10
seconds and presses the RESET button.
4
Remote transmission
of outdoor temperature
to the Solar Station by
915 MHz signals
LCD displays the
outdoor temperature
data
Recharge batteries by
solar-powered cells
