Antrica ANT-35100H Manual

1080p60 video enconder

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

H.265/H.264 Encoder (HDMI only)

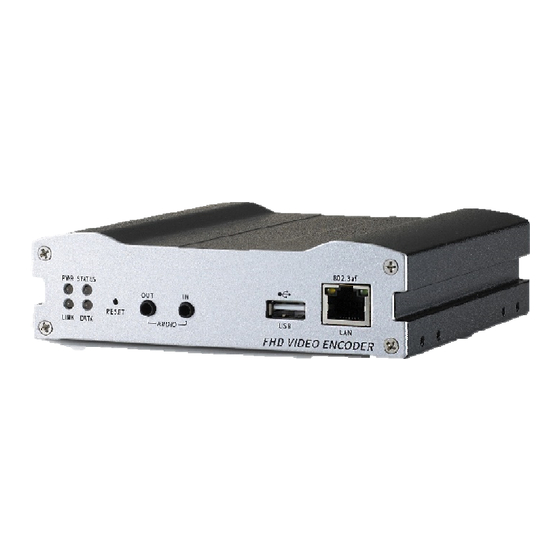

Please note the images of the ANT-35100H used in the document are representations of the

finished items, and the enclosure you have may be a different design and colour.

Document info

Version

date

author

1.0

12-Dec-23

K Y J

1.1

11-Jan-24

David M

ANT-35100H

1080p60 Video Enconder

Comments

Initial draft

Minor text and layout changes

For further help and advice please contact Antrica on:

Email:

support@antrica.com

Phone: +44 1628 626098, during UK office hours, and ask

for technical support

Table of Contents

Need help?

Do you have a question about the ANT-35100H and is the answer not in the manual?

Questions and answers

Summary of Contents for Antrica ANT-35100H

Page 1 1080p60 Video Enconder H.265/H.264 Encoder (HDMI only) Please note the images of the ANT-35100H used in the document are representations of the finished items, and the enclosure you have may be a different design and colour. For further help and advice please contact Antrica on: Email: support@antrica.com...
Page 2 ANT-35100H_User_Manual_v1.1.doc Safety Precaution We appreciate your purchasing video server. Before installing the product, please read the following with care  Make sure to turn off the power before installing video server.  Do not install under the direct sunlight or in dusty areas. ...
Page 3: Table Of Contents
ANT-35100H_User_Manual_v1.1.doc 1. Introduction .......................... 4 About this manual ....................... 4 Features ..........................4 Product and Accessories ...................... 5 Part Names and Functions ....................6 System Connections ......................9 2. Installation .......................... 11 Connecting Video ......................11 Connecting Audio ......................11 Connecting Serial Ports ......................
Page 4: Introduction
ANT-35100H_User_Manual_v1.1.doc 1. Introduction About this manual This User Manual provides information on installation setup and operation of the video server, as well as how to manage troubleshooting. Features A Video server is a video and audio transmission system that provides broadcast quality audio and video, based on IP network through LAN and ADSL/VDSL.
Page 5: Product And Accessories
ANT-35100H_User_Manual_v1.1.doc Sensor and Alarm Support direct connections of external sensor and alarm devices Event Alarm Connection to internal or external USB storage for remote access, recording and playback User Interface Diagnose and upgrade through dedicated program called True Manager System configuration using web browser High Reliability Reliable embedded system System recovery by dual watch-dog functions...
Page 6: Part Names And Functions
ANT-35100H_User_Manual_v1.1.doc Part Names and Functions Front View Parts Function ① Display system status ② Audio Input Audio Input ③ Audio Output Audio Output ④ USB Port USB 2.0 ⑤ Ethernet/802.3af 1000/100/10MB Base-T Ethernet ⑥ Reset Button Initialization of network setting 6/72...
Page 7 ANT-35100H_User_Manual_v1.1.doc Rear View Part Function Power DC +12V power input ① ② RS-232 Serial port for PTZ control and etc ③ RS-422/485 Serial port for PTZ control and etc Sensor Sensor Input ④ Alarm Alarm or Relay Output ⑤ ⑥ HDMI Input HDMI Video &...
Page 8: System Connections
ANT-35100H_User_Manual_v1.1.doc System Connections Video server operates as one mode; Encoder. Video server can be connected in either 1-to-1 fashion where one encoder is connected one decoder or 1-to-many fashion where one encoder connected to many decoders. Following chart shows data status of video, audio and serial data. System Mode Video Audio...
Page 9 ANT-35100H_User_Manual_v1.1.doc  1:N Connection (Unidirectional Transmission). Remote Center (Decoder or VMS System Site (Encoder) In this configuration, a site can be monitored from many remote center locations. Maximum connections would be limited by the network bandwidth. Functionally, the VMS (Video Management System) software can be replaced as the decoder. Multicast Mode In the network supporting multicast mode, if Multicast is setup as a system protocol, you can use bandwidth efficiently regardless of the number of decoders.
Page 10 ANT-35100H_User_Manual_v1.1.doc  VMS(Video Management System) Site Remote Center Site Remote Center (Decoder) VMS (Video Management System) that supports Onvif is a Windows based remote monitoring program to access multiple encoders for real-time monitoring or control of the encoders and connected cameras. 10/72...
Page 11: Installation
ANT-35100H_User_Manual_v1.1.doc 2. Installation Connecting Video Encoder system mode Connect camera or other video source such as computer’s video output line to the encoder (video server) video input port. HDMI cable ver. is 2.2. Connecting Audio It is possible to set the mode as Tx-only, Rx-only, Tx-Rx or audio off. Connect audio input and output ports to audio devices accordingly.
Page 12: Front Led Display And Button
ANT-35100H_User_Manual_v1.1.doc Front LED display and button ○ PWR ○ STATUS ○ LINK ○ DATA □ USB3.0 Description of LED PWR STATUS LAN DATA ◎ System status can be monitored with LED display State Description Power off Green Power on Not operating STATUS Green blinking Normally operating...
Page 13: System Operation
ANT-35100H_User_Manual_v1.1.doc 3. System Operation Remote Video Monitoring There are two ways to monitor video when the center system and IP camera are connected. In order for a proper operation, an IP address must be set accordingly. Default password is requested modification for better security.
Page 14 ANT-35100H_User_Manual_v1.1.doc  Select the Video stream to be viewed: Primary, Secondary #1, #2, Video Select This video server is capable of quadruple streaming; primary streaming and secondary streaming #1~#3. Video will be displayed according to the resolution set on video configuration.
Page 15 ANT-35100H_User_Manual_v1.1.doc   Pattern, Swing, Group can be activated as configured PTZ Page. Select List  Sensor Input and Alarm Output Display the status of the sensor in real time. When the sensor of the video server is working, the sensor light turns red and you can operate the alarm device by pressing the number icon.
Page 16 ANT-35100H_User_Manual_v1.1.doc Initialize of IP Address If a system IP address is lost, the system can be reset to the system default IP address using the reset button in the back side of the system. 1. While the system is in operation, press the reset button for more than 5 seconds. 2.
Page 17: Remote Configuration
ANT-35100H_User_Manual_v1.1.doc 4. Remote Configuration Using Web Browser Remote setting is available by using web browser. Enter the IP address of Video Server and a live view screen will appear as below. Press Setup button located in the upper right area of the monitoring screen to go to the server setup.
Page 18: Video & Audio
ANT-35100H_User_Manual_v1.1.doc Video & Audio Information Video and Audio status showed at this page including Algorithm, Resolution, Bitrate etc. 18/72...
Page 19 ANT-35100H_User_Manual_v1.1.doc Video Performance Calculation This calculation shows the performance usage rate according to the value set Input Format Choose the input format from the list that is matched to the output of the camera or other video source. Video Input Auto Detect Full Auto provides fixed resolution as input format.
Page 20 ANT-35100H_User_Manual_v1.1.doc Algorithm Select compression algorithm. Note that MJPEG is supported only for Secondary streams. Resolution Select video encoding resolution. Scaling option is used when encoding resolution is different from input resolution. Without Scaling option, input video will be cut according to encoding resolution. On the other hand, if Scaling is selected, input video will be adjusted according to the encoding resolution.
Page 21 ANT-35100H_User_Manual_v1.1.doc I-Frame Interval Determine I-frame Interval between 1 and 255. H.264 Profile Select H.264 Profile: High Profile or Baseline Profile The standard defines various sets of capabilities which are referred to as profiles that target specific classes of application. High Profile The Primary profile for broadcast and disc storage applications are used particularly for high- definition television application.
Page 22 ANT-35100H_User_Manual_v1.1.doc H.265 Profile For a better view of the scene with less buffer, you may select the H.265 profile. Please have in mind that the browsers Chrome, Edge and Mozilla have not yet developed full capability of streaming 100% of H.265 profile. To check the actual H.265 stream, please use a separate video streaming software.
Page 23 ANT-35100H_User_Manual_v1.1.doc Mode Select audio operation mode Mode Action No operation Tx-Only Transmit only Rx-Only Receive only Tx & Rx Transmit and Receive Input Gain Set audio input gain from 0 to 31. Output Output Format Select the format of output when Enable Preview is selected. Audio Output Audio Output: The input audio is transmitted to the encoder Loopback: Does not transmit the audio to the encoder.
Page 24: Image
ANT-35100H_User_Manual_v1.1.doc Image Mask There are 4 regions that user draw on the video as shown above. 24/72...
Page 25: Network
ANT-35100H_User_Manual_v1.1.doc Network IP & Port 25/72...
Page 26 ANT-35100H_User_Manual_v1.1.doc Local Select the IP mode: Fixed IP or DHCP Depending on the selected mode, further configuration items come as follows, IP Mode Selection Description Local IP Fixed IP address Fixed IP LocalGateway Gateway IP address Local Subnet Subnet mask DHCP Please ask IP address information from ISP provider or network manager.
Page 27 ANT-35100H_User_Manual_v1.1.doc  HTTPS Port (443, 1025~65535) Enter HTTPS port used secured HTTP connection.  RTSP Port (554, 1025~65535) Enter RTSP port used for RTSP-based connection. The default TRSP port is 554. RTSP (Real Time Streaming Protocol) is a standard for media streaming between server and client. ...
Page 28 ANT-35100H_User_Manual_v1.1.doc RTSP Multicast RTSP Multicast used to specify the multicast address to be used when the client requests RTSP multicast via ONVIF command. 28/72...
Page 29 ANT-35100H_User_Manual_v1.1.doc QoS (Quality of Service) guarantees a certain level of a specified resource to selected traffic on a network. A QoS-aware network prioritizes network traffic and provides greater network reliability by controlling the amount of bandwidth and application may use. Using DSCP (Differentiated Services Codepoint) values, Video Server can mark the following types of traffic: live video, event/alarm traffic and management traffic.
Page 30 ANT-35100H_User_Manual_v1.1.doc Discovery UPNP By the setting UPNP to ON, it allows the discovery by the client according to UPNP (Universal Plug and Play) protocol. Zeroconf By setting Zeroconf to ON, it allows the discovery by the client according to zeroconf protocol. WS Discovery Discovery function based on web service is enabled.
Page 31 ANT-35100H_User_Manual_v1.1.doc One-way Video Server provides two kinds of one-way (unidirectional) streaming based on UTP to clients; MPEG-TS and RTMP. Both are a kind of broadcasting where traffic from clients to a server is not generated at all. MPEG-TS is a standard format for transmission and storage of audio, video, and data, and is used in broadcast systems such as DVB and ATSC.
Page 32 ANT-35100H_User_Manual_v1.1.doc  Destination IP : Set the IP Address of the destination system which will receive RTMP Stream.  StreamName : Enter the streamname that will be used as session name  User Name : Enter the user name that will be used as session name ...
Page 33 ANT-35100H_User_Manual_v1.1.doc SNMP This Setup is used for SNMP (Simple Network Management Protocol). It is compatible to both SNMPv1 and SNMPvec. Settings for using SNMP are as following; SNMP Listen Port (0, 161, 1025 ~ 65535) The port is for connecting external device when system operates as a SNMP client. SNMP is not used by setting 0 value.
Page 34 ANT-35100H_User_Manual_v1.1.doc SNMP Version Select SNMP Version 1, 2C or 3 DDNS Select DDNS (Dynamic DNS) server to use. One of the two can be selected. TrueDNS True DNS service is used in the mode. Systems can be registered on the website for True DNS service, http://ns1.truecam.net.
Page 35 ANT-35100H_User_Manual_v1.1.doc Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device, such as a router or computer system using the Internet Protocol Suite, to notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its configured hostnames, addresses or other information stored in DNS.
Page 36 ANT-35100H_User_Manual_v1.1.doc E-mail E-mail Specify the information to send event information, when E-mail is selected as an event action.  Server Address Enter an address of mail (SMTP) server  Port Specify a port for SMTP operation (Port 25 is the default port in SMTP operation. If a different port is configured in the SMTP server, this ports needs to be changed accordingly.) ...
Page 37 ANT-35100H_User_Manual_v1.1.doc  E-mail Test E-mail sending can be tested with this button. Please note that configured settings should be saved first by pressing Apply button before using E-mail Test function. One of the following messages will come as a result of the test. E-mail Notification ...
Page 38 ANT-35100H_User_Manual_v1.1.doc Specify the information to upload event information, when FTP is selected as an event action.  Server Address Enter an address of an RTP server to receive video files  Port Specify a port for FTP operation (port 21 is the default port in FTP operation. If a different port is configured in the FTP server, this port needs to be changed accordingly.) ...
Page 39 ANT-35100H_User_Manual_v1.1.doc %YYYY : year %MM : month %DD : day %hh : hour %mm : minute %ss : second %EVENT : event type (Sensor1, Motion, ...) %ADDR : address of the server (Domain name when DDNS is used. Otherwise IP address) “.avi”...
Page 40 ANT-35100H_User_Manual_v1.1.doc  Continuous Upload Continuous upload ‘ON’ allows video clips to be transmitted regularly regardless of occurrence of event. When this mode is activated, FTP upload by event is suppressed.  Upload Duration Specify recording duration of a video clip to be transmitted. (max 300 sec.) ...
Page 41: Event
ANT-35100H_User_Manual_v1.1.doc Event Notification Local When a decoder instead of a PC client is connected to an IP camera, one system becomes a Local system and the other a Remote system (Generally a system which is being used by the user is called a Local system).
Page 42 ANT-35100H_User_Manual_v1.1.doc Sensor1 / Sensor2 Configure the actions when the sensor is activated. Multiple actions can be set for a single event. On Video Loss Configure the actions when video input signal is lost. Multiple actions can be set for a single event. On Motion Configure the actions when motion is detected.
Page 43 ANT-35100H_User_Manual_v1.1.doc Motion Detection Use Motion Detection Determine to use Motion Detection function. Motion Detection Area Editing Configure region for motion detection. Regions of arbitrary shape can be configured by the following steps; Select Enable on Edit tab. Select editing mode. Set is for including cells to motion detection region and Erase is for excluding.
Page 44 ANT-35100H_User_Manual_v1.1.doc Audio Detection Silence Detection When silence is detected for a specified amount of time, it will work with event. Detection level is between -10dBFS and -60 dBFS and time can be set up to 120 seconds. Sound Detection When sound is detected for a specified amount of time, it will work with event. Detection level is between -10dBFS and -60 dBFS and time can be set up to 120 seconds.
Page 45 ANT-35100H_User_Manual_v1.1.doc Sensor Sensor Type There are two sensor input ports on the video server. Each of the sensor ports can be configured to the followings; Function Operation Not used NO (Normally Open) The port is normally open and activated when closed. NC (Normally Closed) The port is normally closed and activated when opened.
Page 46 ANT-35100H_User_Manual_v1.1.doc Alarm Set the duration of alarm or beep activation in case of an event. If it is set to continuous, it will be in active state until the operator resets it manually. Event OSD User can create OSD in any position with above options with different colors. 46/72...
Page 47: Record
ANT-35100H_User_Manual_v1.1.doc HTTP Action According to Event, Video Server will transmit HTTP API to Device. (User should put in HTTP API) Before starting this feature, please enable HTTP Action on Notification page Record General Use record  Off : Recording function will not be used when “OFF” is selected. ...
Page 48 ANT-35100H_User_Manual_v1.1.doc Select Video Select video stream to record. Manual record When On is selected, record is operated regardless of schedule. Overwrite When the disk becomes full, the oldest data are deleted automatically. It is valid only when Use Record is set to Use disk. Max File Size / Max File Length Max File Size option is for limiting the size of AVI file.
Page 49 ANT-35100H_User_Manual_v1.1.doc Schedule Event Type Three recording modes are supported: Continuous, Event, Disconnect. In case of Event recording, event types can be selected among several events. Selected event type is used for configuring the schedule table. Up to 4 event types can be configured and each event type can be a combination of sensor, video loss and motion event.
Page 50 ANT-35100H_User_Manual_v1.1.doc Disk Information USB memory stick or USB HDD can be used, and at least 1GB size is recommended. Either EXT3 or FAT32 file system can be used. A disk with either EXT3 or FAT32 file system can be read in Linux PC. However, only disk with FAT32 file system can be read in Windows PC.
Page 51 ANT-35100H_User_Manual_v1.1.doc Search Page Recorded video and audio data can be saved as AVI or MP4 file format in the disk. In general, one AVI file is created for an event in case of event-based recording. However, it is possible that recorded data by series of events happening continuously can be merged to a single AVI file depending on pre/post event time setting.
Page 52 ANT-35100H_User_Manual_v1.1.doc Playback 1. Selecting an AVI file will show a dialog for opening or saving the file 2. Pressing Save button, the file will be stored in the PC. The AVI file can be played with Windows Media Player. 3. If you press Open in the dialog, the file will be downloaded and played automatically with Media Player.
Page 53: Device
ANT-35100H_User_Manual_v1.1.doc Device Information The information provides current serial communication status. Serial Serial Protocol: There are two serial ports, RS-232, RS-422/485 and select option accordingly. Serial Port Configuration: The serial ports can be configured as follows. Each of the serial ports configurations must be same as the connecting device 53/72...
Page 54: Ptz
ANT-35100H_User_Manual_v1.1.doc General PTZ Type Select the type of PTZ camera or receiver. PTZ ID Since it is possible to control multiple PTZ cameras or receivers over a single control line, each camera or receiver will be assigned with a unique ID. Enter PTZ ID of a camera or receiver to control. The ID value range can be between 0 and 255.
Page 55 ANT-35100H_User_Manual_v1.1.doc Preset Max 500 preset positions can be defined. Select Preset Number: Select an entry in the list to be assigned to current camera position. Focus Mode: Select the focus mode after preset Goto is executed.  Do not change: current focus mode is not changed. ...
Page 56 ANT-35100H_User_Manual_v1.1.doc Group This function is that the camera memorizes the combination of Presets, Pattern and/or Swings sequentially and runs Presets, Pattern and/or Swings repetitively on activation. Max 8 groups are programmable. Each group can have a max of 20 actions which are the combinations of Preset, Pattern and Swing.
Page 57 ANT-35100H_User_Manual_v1.1.doc Advanced Power Up Action Specify if the camera will continue previous action such as pattern, swing or group after it is rebooted by power.  Group-1: When it will reboot, start to Group-1  Preset-1: When it will reboot, start to Preset-1 ...
Page 58 ANT-35100H_User_Manual_v1.1.doc Motion Detection and Tampering disable on PTZ User can disable Motion detection and tampering on PTZ Auto Parking Auto parking is a function to return to the previous preset position or to resume operation such as Pattern, Swing or Group when a specified time expires after user stopped PTZ control. Parking time can be set from 0 to 3600 seconds and “0”...
Page 59 ANT-35100H_User_Manual_v1.1.doc Range # - On: regardless of coordinate value, user can see specific OSD. X - Coord: Position of horizontal Y - Coord: Position of vertical Font size: Font size Hue: Color 59/72...
Page 60: User
ANT-35100H_User_Manual_v1.1.doc User User List - User can be registered and privilege level of a user can be specified. User configuration is allowed only to admin user. Max 16 users can be registered and each user can have one of four privileges. Privilege Allowed Operations Remarks...
Page 61 ANT-35100H_User_Manual_v1.1.doc Change Password Press Modify Password button. The following window will appear. Enter the current password and then set a new password. Modify Privilege Level Press Modify Privilege button to change User level. It is not allowed to change the privilege level of admin user.
Page 62 ANT-35100H_User_Manual_v1.1.doc Authentication) is supported. Skip Login Skip Login provides for convenient access to the Video Server when authentication is not required. When Skip Login is set to Enable, login step is skipped. Privilege Level After Login Skipped The privilege level after login in this way is determined by the setting of Privilege Level After Login Skipped.
Page 63: System
ANT-35100H_User_Manual_v1.1.doc System Information System information Followed network information is displayed (Read only) Model Display the model name. Version Display the current firmware version. ONVIF Version Display the current Onvif version. OpenSSL Version Display the current OpenSSL Version. Mac Address Display the MAC address of the camera. In case the camera is registered at DDNS server, the MAC address is used in DDNS registration.
Page 64 ANT-35100H_User_Manual_v1.1.doc Upgrade & Reboot Firmware Version : Display the current firmware version Upgrade: To upgrade firmware; 1. Press Browse button to select a firmware file from PC. 2. Press Firmware Upgrade button to start upgrading. 3. A message for showing status (downloading / upgrading) will be displayed. 4.
Page 65 ANT-35100H_User_Manual_v1.1.doc Config Backup & Retore Backup All the setting of configuration can be stored. Restore Stored configuration can be browsed and restored. The server is rebooted once Config Restore button is pressed. Reboot Reboot the camera Do not press the Reboot button unless the server needs a reboot. Factory Reset All settings including user accounts and logs are cleared.
Page 66 ANT-35100H_User_Manual_v1.1.doc Enter a new date and time then press Set Current Time button to update date & time. Time Format Change the time format. The selectable time formats are as below; I. YYYY/MM/DD hh:mm:ss (Eg. 2012/10.30 12:30:45) II. DD/MM/YYYY hh:mm:ss (Eg. 10/30/2012 12:30:45) III.
Page 67 ANT-35100H_User_Manual_v1.1.doc System ID Enter System ID that is used as a Video Server name. The set System ID is displayed with video image on a Web Browser. The System ID is also transferred to remote software, such as VMS, and displayed on it. BurnIn OSD Insert system ID and date/time in the compressed video.
Page 68 ANT-35100H_User_Manual_v1.1.doc 2 : Both System ID and Time are displayed 1 : Either System ID or Time can be displayed. When both are enabled, System ID is displayed. 0 : No items are displayed. This is because video area is too small to display OSD text in large text. User defined OSD You can enter any text you like independent.
Page 69 ANT-35100H_User_Manual_v1.1.doc System Mode Video Server’s log can be shown and saved as txt file. Various filters could be selected. User Log User (Client) log can be shown and saved as txt file. Save Log Option Various options can be included or excluded. 69/72...
Page 70: Appendix A : Sensor And Alarm Port
ANT-35100H_User_Manual_v1.1.doc Appendix A : Sensor and Alarm Port Sensor Port  Terminal Type Color : Green  Sensor Signal Input Type NO Contact Signals  Connection to External Device (Using switch) 70/72...
Page 71 ANT-35100H_User_Manual_v1.1.doc Alarm Port  Power Rating (User has to use following spec) Voltage Rating: 12VDC Current Rating : 0.1A  Alarm Signal Output Type NO/NC Contact Signals  Connection to External Device External alarm line power is under 12V/0.1A External alarm line power is over 12V/0.1A 71/72...
Page 72: Appendix B : Serial Port
ANT-35100H_User_Manual_v1.1.doc Appendix B : Serial Port RS-232 Port  Port Type 3 PIN Pin Arrangement Pin Description Pin NO Pin Name Description RS232 TX(Transmit) RS232 RX(Receive) Ground RS-422/485 Port  Port Type 4 PIN Pin Diagram Pin Description Pin No. Pin Name Description RS422 RX-...
