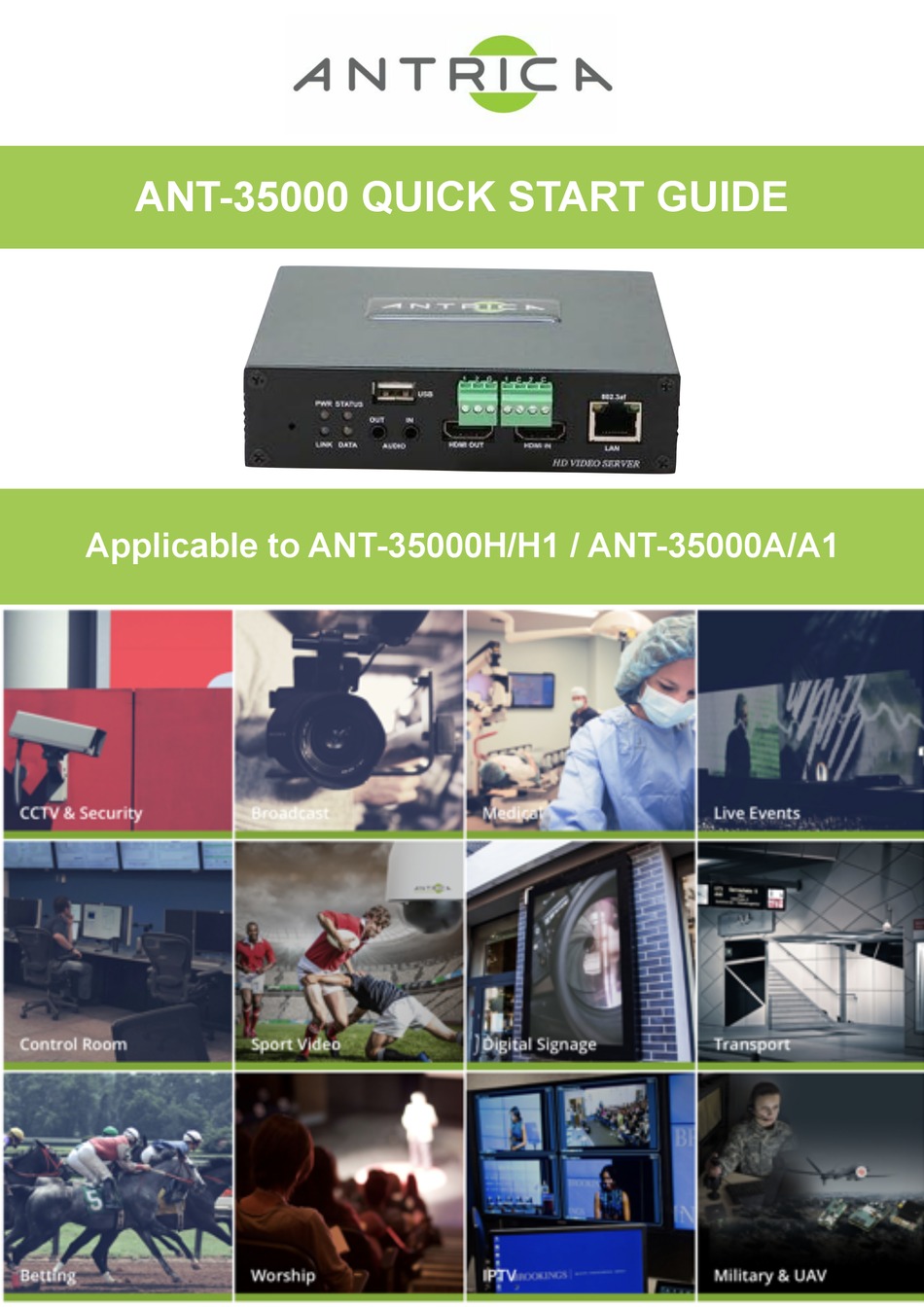

- Page 1 ANT-35000 QUICK START GUIDE Applicable to ANT-35000H/H1 / ANT-35000A/A1 Page ! 1 Antrica Quick Start Guide ANT-35000 Series V12018...
- Page 2 Contents 1 Whats in the box 2 Setting up the ANT-35000 3. Configuring the ANT-35000 3.1 Video Information 3.2 Video Encode 3.3 Network & IP Port 4. Streaming 4.1 RTSP over TCP to VLC player 4.1.1 How to configure VLC 4.2 MPEG Transport Stream to VLC...

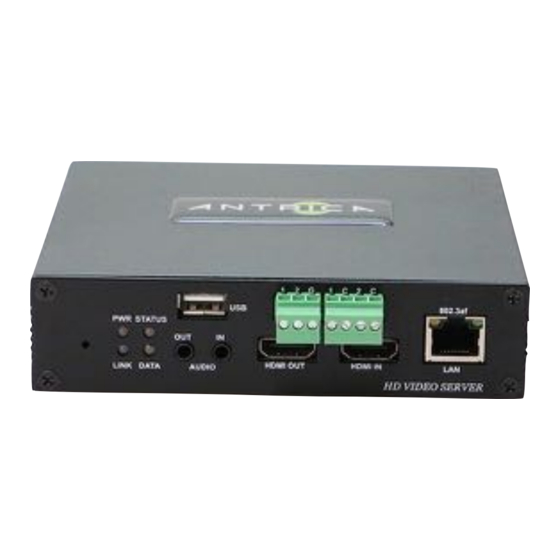

- Page 3 Connect the 12 volt power input (or use PoE )and switch on. The ANT-35000 will take approximately 2 minutes to boot up. You will see 4 LEDs. On powering the Red power LED is ON, after boot up the Green Status LED will flash.
- Page 4 Chrome requires a plugin and the old internet explorer uses an Active X plug in. These will only load if the browser can access the internet. 3.2 Video Encode:Settings Input format HDMI only for ANT-35000 Input format Detected in Auto...
- Page 5 Settings may vary with other players 4.1 RTSP over TCP to VLC player: RTSP streaming only requires one setting to be changed in the ANT-35000. This is the RTSP port which can be found under Network-IP&Port. By default this Port 554 The ANT-35000 RTSP URL is as follows: rtsp://<IP ADDRESS>:<PORT>/video1 (video only streaming of primary stream)
- Page 6 4.2 MPEG Transport Stream over UDP To stream MPEG TS first we need to setup ONE WAY STREAMING in the ANT-35000 which can be found under NETWORK-One way streaming. Select MPEG TS and click Apply . Here you can select and Enable any or all of the 4 streams.
- Page 7 Router in this building will need to PORT FORWARD this stream( port number chosen above) to the internal IP address of the computer. Further data on Port Forwarding and Router setup contact support@antrica.com . Multicast is not supported over the Internet.
- Page 8 5.0 Help and Further Support 5.1 ONVIF Support The ANT-35000 series supports ONVIF profile S+G and uses port 80 as standard and login user name and password (admin: 1234). Profiles are as defined in the 4 stream settings in section 3.2 of this Quick Start Guide.
