Matrix II Wi-Fi

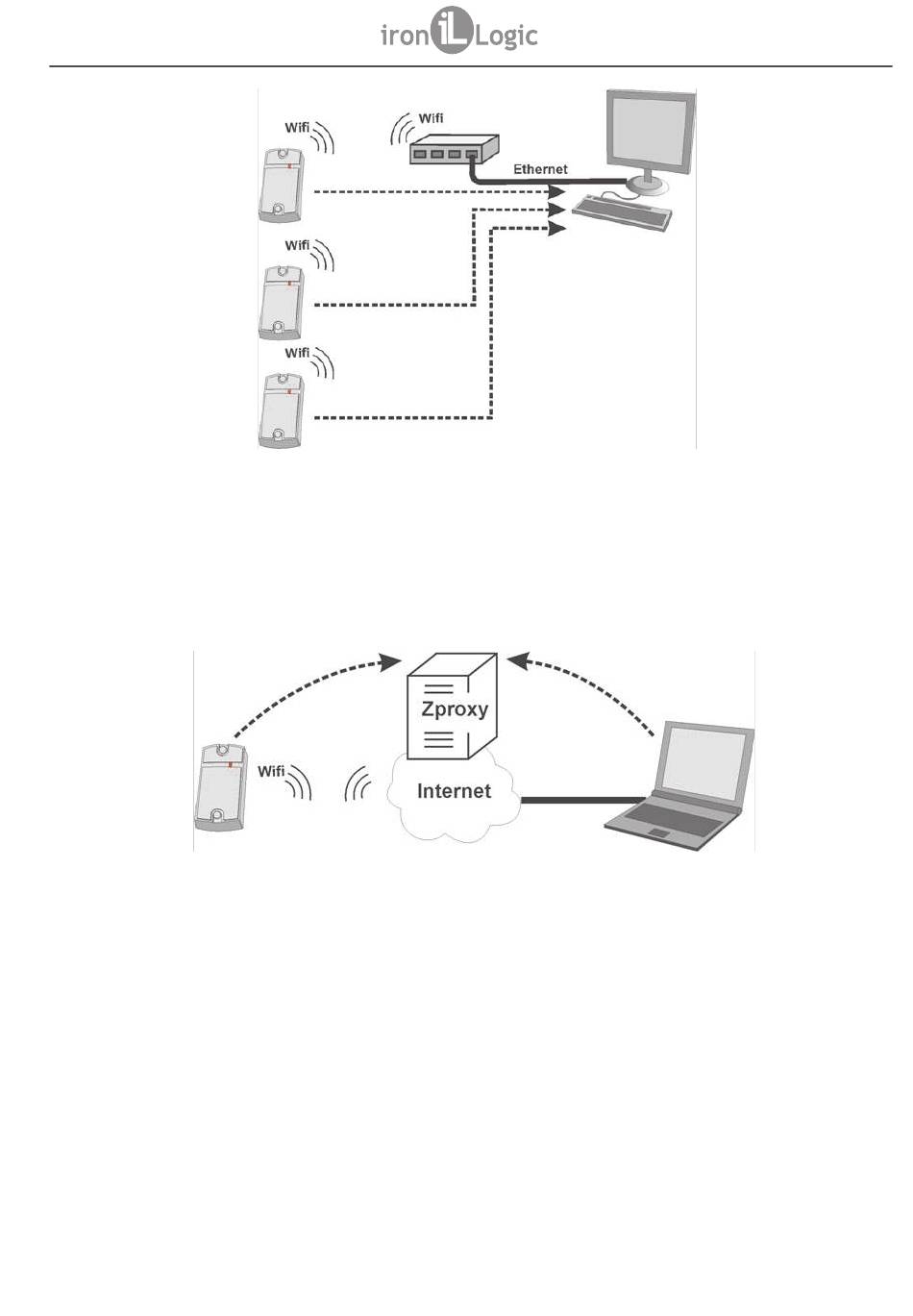

- Zproxy Server (available at zproxy.con.ru) allows the (proxied) connection between the controller
and the control software, where direct TCP/IP connection is impossible, e.g. if the controller and the
software are in different LANs. If Internet access is available, the controller connects to ZProxy
server, the control software connects to that server too and requests connection to the required
controller using a password.
If no connection exists to control software, the controller will work in Standalone mode.

5. WEB INTERFACE

The Web interface is used to configure connection parameters and connected equipment. To run
initial configuration, a device with Wi-Fi network connection (tablet, notebook, or smartphone) and
with an integrated web-browser (Internet Explorer, FireFox, Opera, Chrome etc.) is required. Please
follow these steps to access the Web interface of controller's preferences:
6. Set on-board jumper into CFG position (please refer to Section 6: "Power up and getting started");
7. Power up the device;
8. Connect to the device via Wi-Fi:
-Wait until a Wi-Fi access point with the name Matrix_II_WiFi_XXXXXX appears;
-Connect to that Wi-Fi;
Factory default password is called AUTH_KEY. It contains 8 characters and can be found either on
the sticker on the back side of the device's housing, or in the end of this manual. Please note, that the
AUTH_KEY password is case-sensitive, please type it exactly as shown.
4. Browse http://192.168.10.1 (login: matrix, pasword: AUTH_KEY);
5. Go trough appearing menu tab by tab and configure parameters on each tab. Please do not forget
to save the changes on each tab.
