Matrix II Wi-Fi
Where:
Server Address: IP address of a target server system running the control software, or IP address or
server name of a ZProxy server (zproxy.con.ru).
Server Port: TCP port on the server listening for connections (25000 for Zproxy).
After setting is complete, please save parameters by pressing Save button.
5.4.4 Standalone
The initial ACS setup, done by jumpers on other controllers (like on Z-5R controller), is performed in
Standalone mode on this device. This mode is intended to operate controller keys database via Web
interface, without using the Master key. Recording and modifying the keys database can thus be
done in two ways. First is via Web interface, second is using a special Proximity card called a Master
key (controller programming with a Master key will be explained later). It is possible to use either
integrated or external iButton reader to operate keys database of Matrix II Wi-Fi device. Operating
keys database via Wiegand reader is not supported!

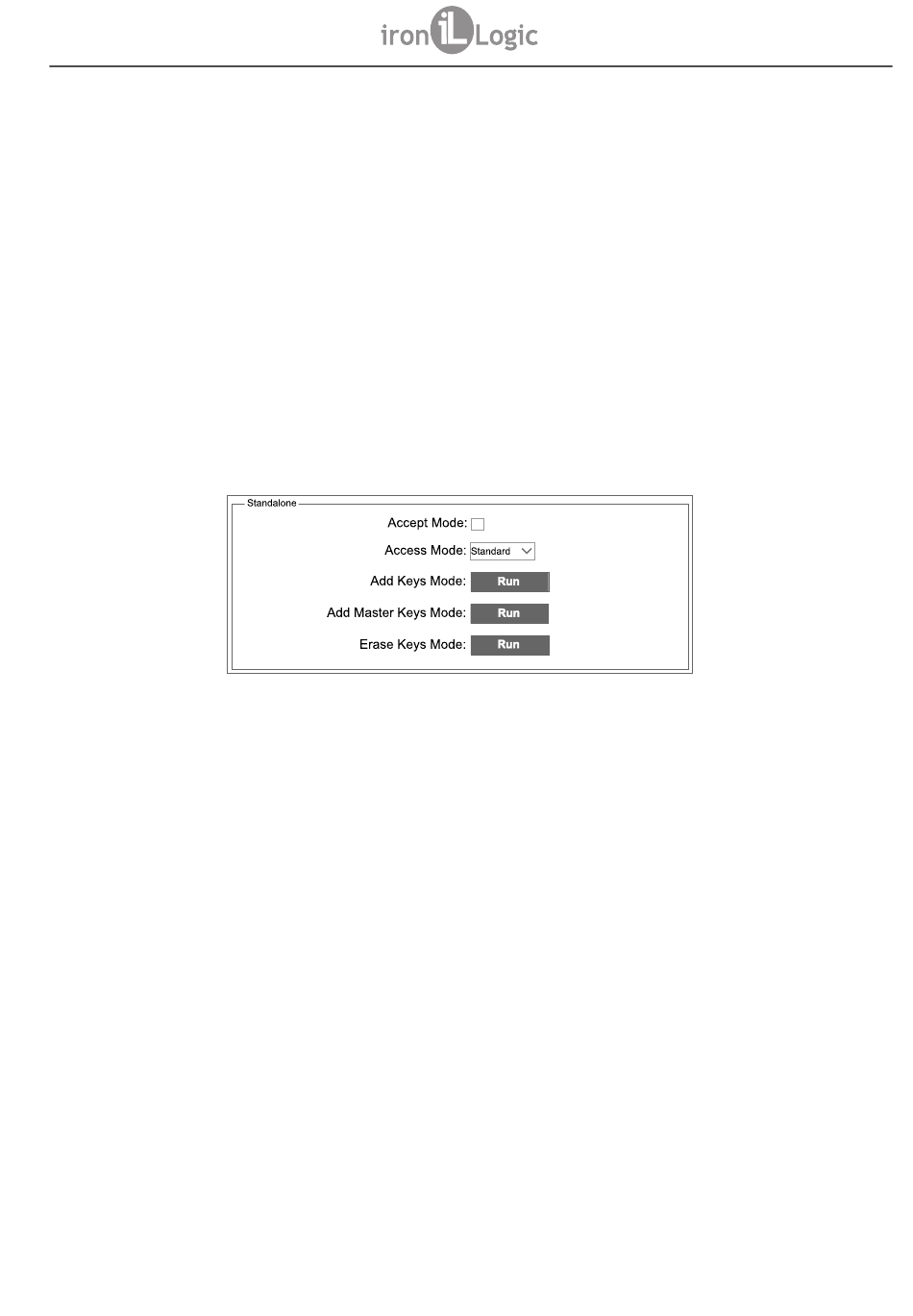

Please select Standalone mode to configure keys database via Web interface. The interface will
look as follows:
Accept Mode: activates Accept mode, where all new keys will be stored into memory as new
Standard keys.
Access mode: available access modes: Standard mode (regular access mode),
Block mode (access granted to Blocking cards), Free access (doors unlocked), Waiting (can be
turned on only via Web interface; when an access point is in Block mode, and Waiting mode is turned
on, the first submitted Standard or Blocking card (but not Master card!) will convert access mode into
Free access).
Add Keys Mode: activates Add Standard and Blocking Keys mode on the device (more details in
Section 7.1).
Add Master Keys Mode: activates Add Master Keys mode on the device (more details in Section
7.2).
Erase Keys Mode: erases Standard and Blocking keys touching the reader from the keys database
(more details in Section 7.2).
Master keys can't be erased in this mode.
When Add Keys, Add Master Keys or Erase Keys mode is selected, an additional pop-up will display a
timer, showing remaining time before this mode gets automatically terminated.
