Z-5R NET
RS-485 network controller with 2024 keys memory
1. OVERVIEW
Z-5R NET controller is used to control access to residential and industrial areas, log access and
other security events.
The controller can operate in standalone mode or as networked device.
Z-5R NET is connected to network via RS-485 (2-wire connection).
Z-5R NET can work with the following equipment:
- Contactless card reader working via iButton (DS1990A emulation) or Wiegand-26 protocols;
- Contact key reader (iButton probe);
- Electromagnetic lock
- Electromechanical lock/latch;
- Door release button (normally open);
- External buzzer, external LED (same as the ones present on controller's PCB);
- Door sensor (normally open type).
Proximity card readers can be connected to the controller via iButton or Wiegand-26 protocols.
2. CONNECTING AND MOUNTING
Entrance
Reader
MATRIX II
Z-5R NET
User Manual
20 mm
47 mm
65 mm

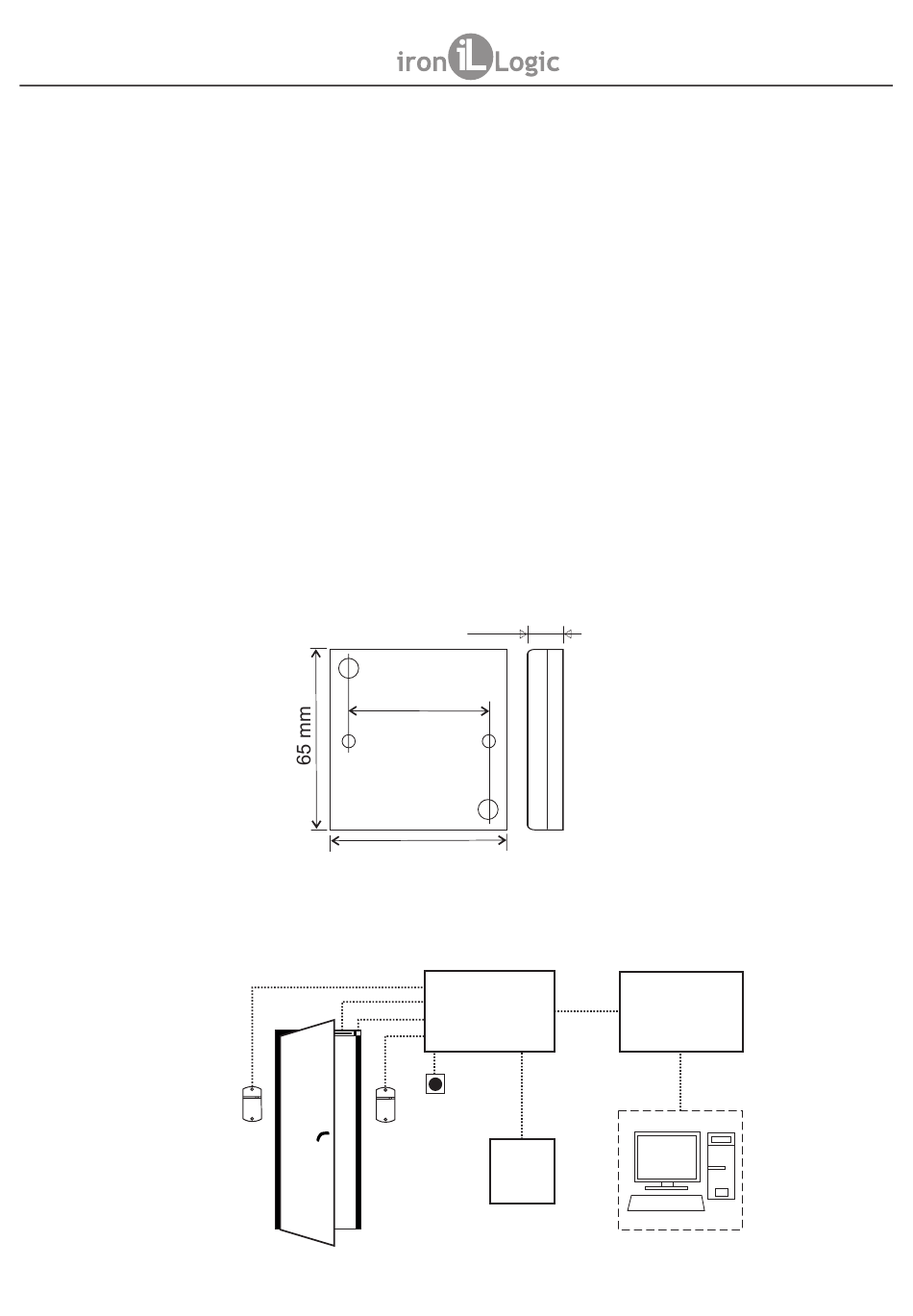

Figure 1: Device dimensions
controller
Z-5R Net
Lock
Door sensor
Door
button
Exit
Reader
MATRIX II
Figure 2: Z-5R NET Connections Layout
www.ironlogic.me
converter
RS-485
USB - RS-485
(Z397)
+12 V
power
USB
page 1
Advertisement
Table of Contents
Related Manuals for ironLogic Z-5R NET
Summary of Contents for ironLogic Z-5R NET
- Page 1 RS-485 network controller with 2024 keys memory User Manual 1. OVERVIEW Z-5R NET controller is used to control access to residential and industrial areas, log access and other security events. The controller can operate in standalone mode or as networked device.
- Page 2 Z-5R NET www.ironlogic.me Socket Terminals: ZUMM 1. ZUMM External buzzer External buzzer 2. TM TM central input 3. GND Common ground (-) EXIT button 4. EXIT Door release button 5. LED External LED (+) LOCK lock 6. LOCK Lock +12V 7.
-
Page 3: Operation
Z-5R NET www.ironlogic.me 3. OPERATION 3.1 Programming the controller for standalone operation (no network). Initial controller power-up (key database is empty). Short beeps are emitted for 16 seconds, indicating that the key database is empty and Add Master Keys mode is activated. While the beeps are sounding, touch the probe with a key, and it will be recorded as new Master key. - Page 4 Z-5R NET www.ironlogic.me Table 1. Programming Modes Modes Mode Legend Activation Programming using Master keys 1…5 - number of 1. Add Normal Keys 1 М touches. 2. Add Blocking Keys 1 М Letters denote Key 3. Add Master Keys 1 m, 1 М...
- Page 5 Z-5R NET www.ironlogic.me On the fourth touch, the Controller emits four beeps and enters Door Opening Time programming mode. Within 6 s after last touch, press the door release button for the period of time required to keep it open for. When the button is released, the controller beeps and stores the time the button was pressed to its memory.
- Page 6 3.2 Networked Operation. Controllers Z-5R Net can be networked via RS-485 interface and operate under control of control software running on a PC. Specialised software (described in detail on company website) allows for controllers programming, operation control, event log downloads. However, the access decisions are still made by the controller, be it standalone or networked.
-
Page 7: Specifications
- Case material: ......................ABS plastic; - PCB dimensions, mm: ..................60 x 50 x 12; - Weight: ..........................80 g. Z-5R NET Networked operation specifications. - Maximum cards/keys number: 2024; - Event log memory: 2048; - Maximum Controllers on the network: 255;... -
Page 8: Limited Warranty
Z-5R NET www.ironlogic.me 6. PACKAGE - Z-5R NET controller ......1 - Case .............1 - Jumper block ........1 - CR2032 (watch type) battery ....1 9. LIMITED WARRANTY. This Device is covered by limited warranty for 24 months. The warranty becomes void, if: - this Manual's guidelines are not followed;...
