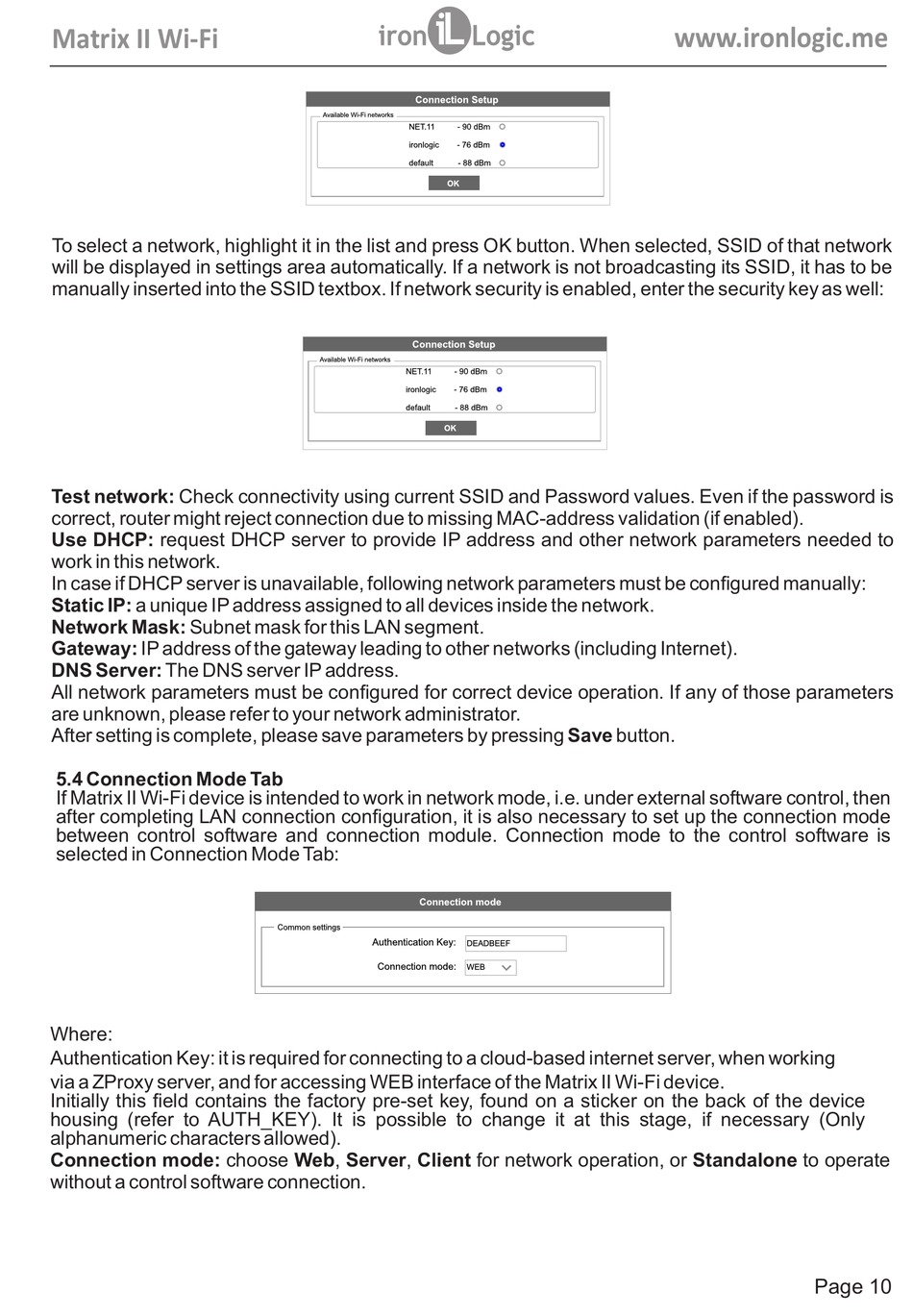

Matrix II Wi-Fi
To select a network, highlight it in the list and press OK button. When selected, SSID of that network
will be displayed in settings area automatically. If a network is not broadcasting its SSID, it has to be
manually inserted into the SSID textbox. If network security is enabled, enter the security key as well:
Test network: Check connectivity using current SSID and Password values. Even if the password is
correct, router might reject connection due to missing MAC-address validation (if enabled).
Use DHCP: request DHCP server to provide IP address and other network parameters needed to
work in this network.
In case if DHCP server is unavailable, following network parameters must be configured manually:
Static IP: a unique IP address assigned to all devices inside the network.
Network Mask: Subnet mask for this LAN segment.
Gateway: IP address of the gateway leading to other networks (including Internet).
DNS Server: The DNS server IP address.
All network parameters must be configured for correct device operation. If any of those parameters
are unknown, please refer to your network administrator.
After setting is complete, please save parameters by pressing Save button.
5.4 Connection Mode Tab
If Matrix II Wi-Fi device is intended to work in network mode, i.e. under external software control, then
after completing LAN connection configuration, it is also necessary to set up the connection mode
between control software and connection module. Connection mode to the control software is
selected in Connection Mode Tab:
Where:
Authentication Key: it is required for connecting to a cloud-based internet server, when working
via a ZProxy server, and for accessing WEB interface of the Matrix II Wi-Fi device.
Initially this field contains the factory pre-set key, found on a sticker on the back of the device
housing (refer to AUTH_KEY). It is possible to change it at this stage, if necessary (Only
alphanumeric characters allowed).
Connection mode: choose Web, Server, Client for network operation, or Standalone to operate
without a control software connection.






