Matrix II Wi-Fi

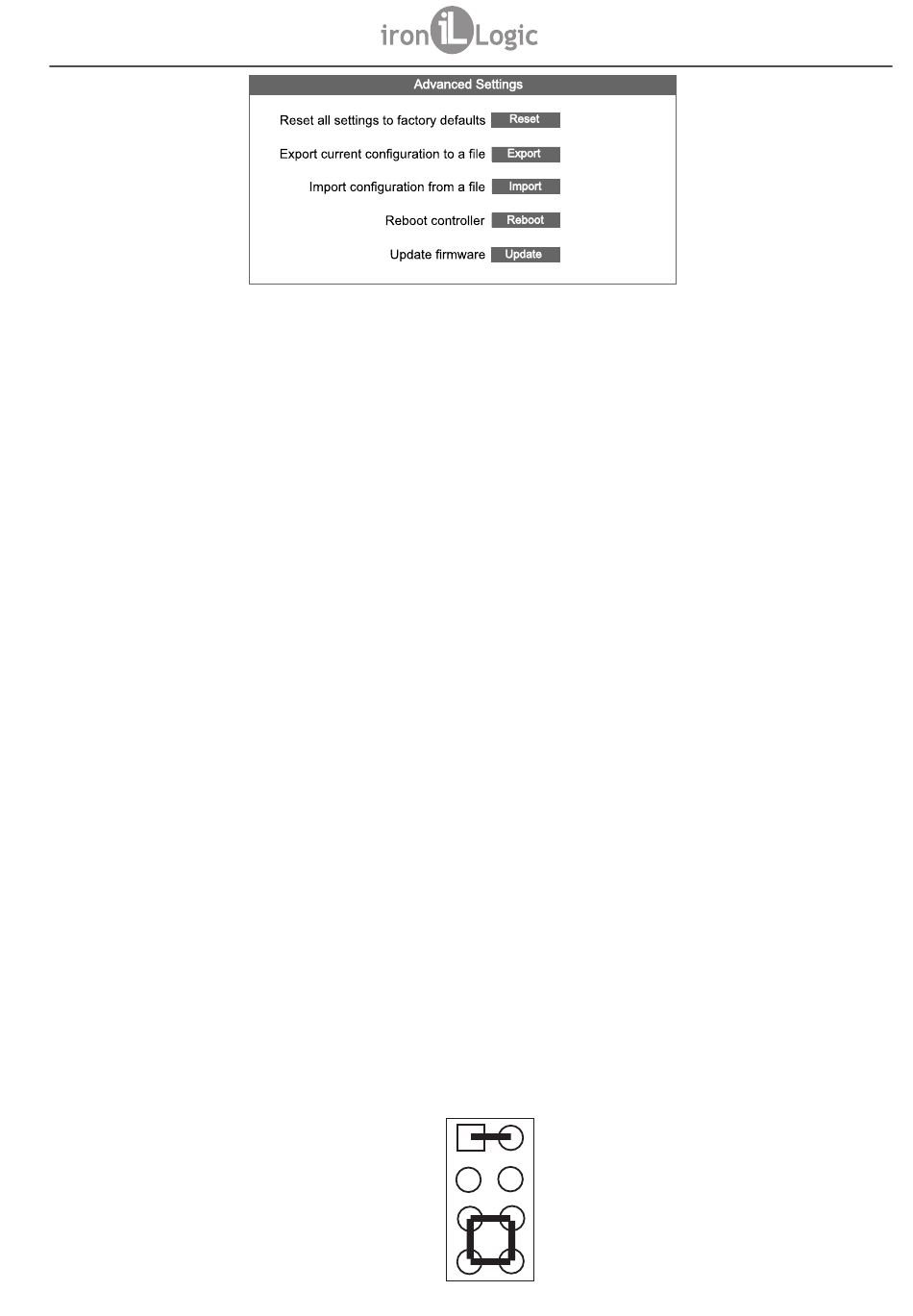

Reset to Factory Defaults: resets all settings to factory defaults.
Export Config to File: exports the current controller configuration to a file on the local computer
running the Web interface.
Import Config from File: imports the controller configuration from a file on the local computer
running the Web interface.
Reboot Controller: reboots the controller to apply the changed network settings.
Firmware Update: allows to update both controller's and connection module's firmware.
5.7 Ending Web interface operation
To finish working with the Web interface, please remove the on-board jumper from CFG position, if
present (please refer to Section 6: "Power up and getting started"), go to Advanced Settings tab and
choose the Reboot Controller function there.
6. POWER-UP AND GETTING STARTED
Connect external devices to your controller as per Section 3 of this manual. Factory default settings of
Matrix II Wi-Fi device network module are as follows:
Network name: «mySSID»;
Password: «WiFiPassword»;
Wi-Fi and DHCP enabled;
Connection mode: WEB, server: hw.guardsaas.com.
Important! Changing the connection module configuration is only possible via Web-interface.
To use the device in network mode with network settings, different to factory defaults, please adjust
settings as described in Section 5 of this manual.
To use the controller in Standalone mode, launch the Web interface and select Control Software
Connection Mode tab, set the connection mode there to Standalone and create at least one Master
key (please refer to Section 7).
Stay in Standalone mode, exit the Web interface and create all needed keys for access.
After saving the changed settings, turn power off. Remove on-board jumper from CFG position and
install it according to the used lock type. Turn power on. The device is ready to operate in a mode
defined during configuration.
To use the device in standalone mode only, on-board jumper may be used to set the device up:
Figure 7. On-board jumper
5
CFG
2
CLR
4
1
ADD
3
