Matrix II Wi-Fi

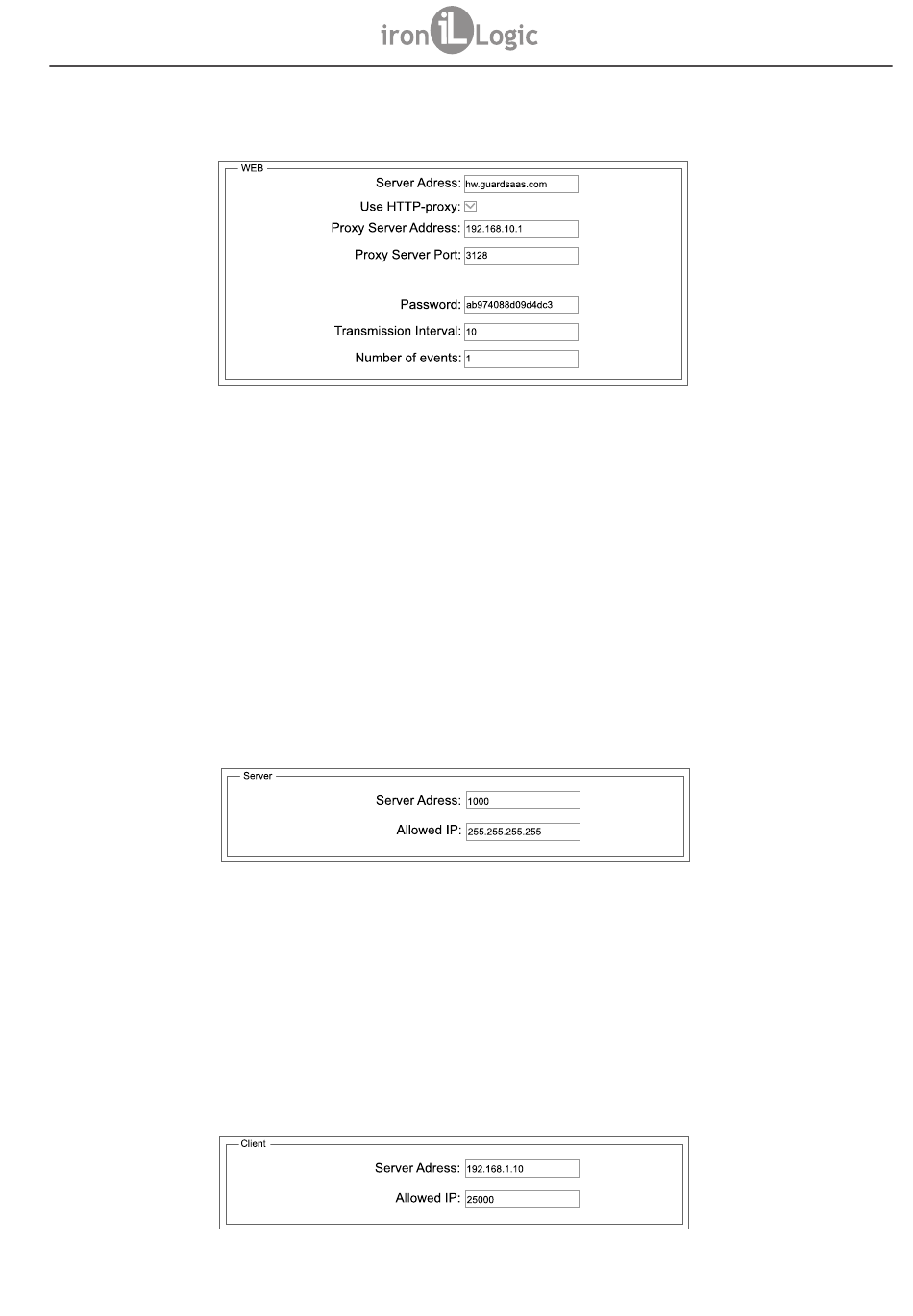

5.4.1 Web
Web connection mode provides connection to a cloud SaaS (Security as a Service). To set it up,
the following parameters are required from SaaS vendor:
Server Address: name or IP address of the cloud service Web server, where the controller
should connect.
Use HTTP-proxy: specify if addressing a special local server for internet access is required.
Proxy Server Address: network address of the proxy server in local network.
Proxy Server Port: port ID for connecting to proxy server.
Password: data access password on the cloud Web server.
Transmission Interval: the interval between connections to the Web server in seconds.
Number of events: number of pending controller events that trigger an out-of-sequence data
transmission to Web server, before the current Transmission Interval has elapsed.
After setting is complete, please save parameters by pressing Save button.
5.4.2 Server
In Server connection mode, the connection module is listening for control software connection on a
local port. If this mode is selected, the following parameters must be specified:
Where:
Local Port: Local TCP port listening for control software connection.
Allowed IP: Source IP address from which control software can connect to controller. (To allow
connections from any IP, please use 255.255.255.255 value).
After setting is complete, please save parameters by pressing Save button.
5.4.3 Client
In Client connection mode, the connection module regularly attempts to establish connection to
the control software. Also select this mode, if the controller connects to a ZProxy server. The
following parameters have to be provided:
