Matrix II Wi-Fi

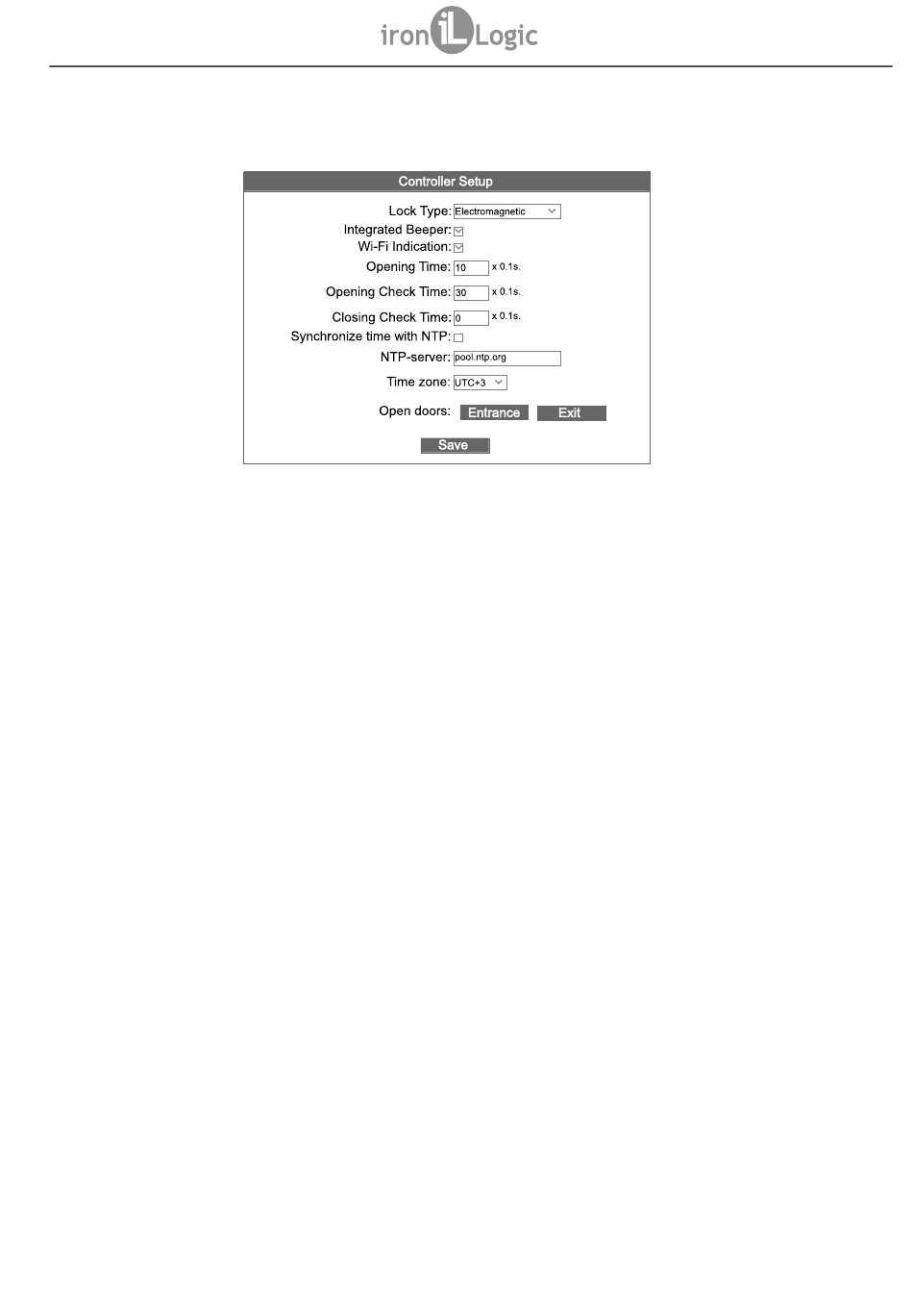

5.5 Controller Setup Tab
Controller Setup tab allows to set up controller operational parameters of Matrix II Wi-Fi device:
Lock Type: Electric Latch, Electromagnetic, or Electromechanical.
If the lock type is regulated by control software, then this field shows the name of the defined access
point, and its adjustment is not possible until resetting the device to factory default settings via Web-
interface or via on-board jumper (position #2, please refer to p. 50).
Integrated Beeper: enables/disables the built-in beeper.
Wi-Fi Indication: enables/disables Wi-Fi connectivity status notification, which blinks with blue light
indicator. Indications legend: continuous blinking – searching and connecting to a Wi-Fi network;
blinking with 3 flashes – configuration mode is on (on-board jumper is set to CFG position); blinking
with 2 flashes – connection with control software (server) is established; single flashes – waiting for
control software (server) connection.
Opening Time: Duration of the impulse sent into the lock to unlock the door. Depending on Lock
Type, the impulse can apply voltage or remove it.
Opening Check Time: Maximum time after access has been granted till the door is open. The door
opened after this interval is considered as Forced. If Opening Check Time is shorter than "Opening
Time", then "Opening Time" is used for this function.
Closing Check Time: Maximum time while the door stays open. If within Closing Check Time the
door has not closed, a "Door Held" event is generated into the log. To disable Closing Check, set this
parameter to 0.
Synchronize time with NTP: Allows connection to a NTP time server to synchronize device's time
settings.
NTP-server: IP address of a NTP server, which is used for time synchronization.
Time zone: identifies the time zone in which the time is synchronized.
Open doors: Lock release buttons on entrance or on exit.
After setting is complete, please save parameters by pressing Save button.
5.6 Advanced Settings tab
Advanced Settings tab allows to install software updates, export and import configuration to/from a
file, update the device firmware, reset the controller to factory defaults and reboot Matrix II Wi-Fi
device:
