3. CONNECTING EXTERNAL DEVICES

Dimensions and Terminals layout are shown on Figure 1.

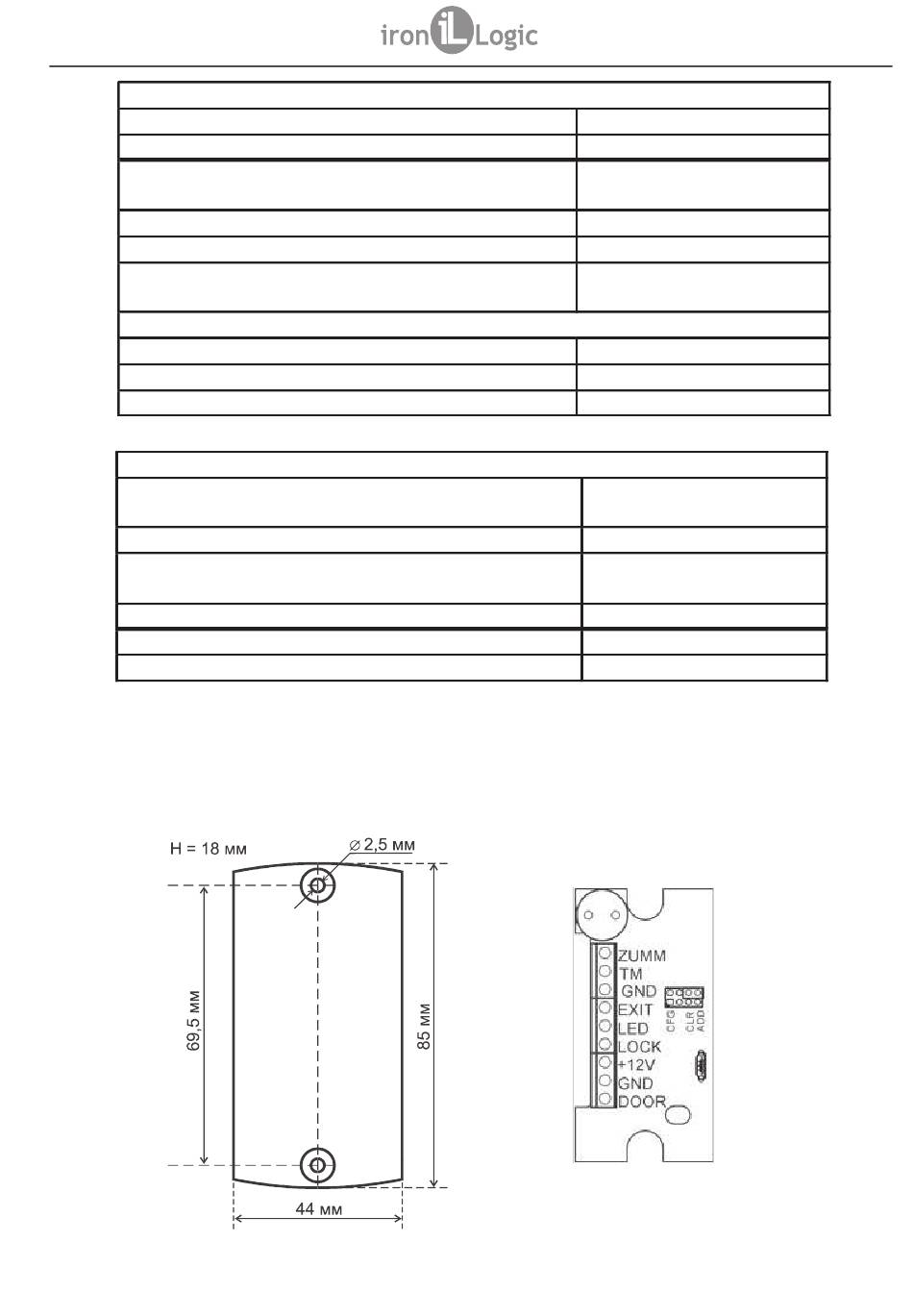

Figure 1. Dimensions and Terminals layot
Wi-Fi connection module
USB Interface
Other parameters
www.ironlogic.me
IEEE 802.11b, IEEE 802.11g
2.4-2.4835 GHz
11g: 54Mbit/s
11b: 11Mbit/s
<20dBm (<100mW)
Hotspot, Client
W PA/WPA2, WPA-
PSK/WPA2-PSK
Micro USB, Type A
USB 2.0
Device, Full/Low Speed
yes
12 (within range 9~24)
100
yes
85x44x18
1 00
