NTI 3G-SDI Screen Splitter/Multiviewer

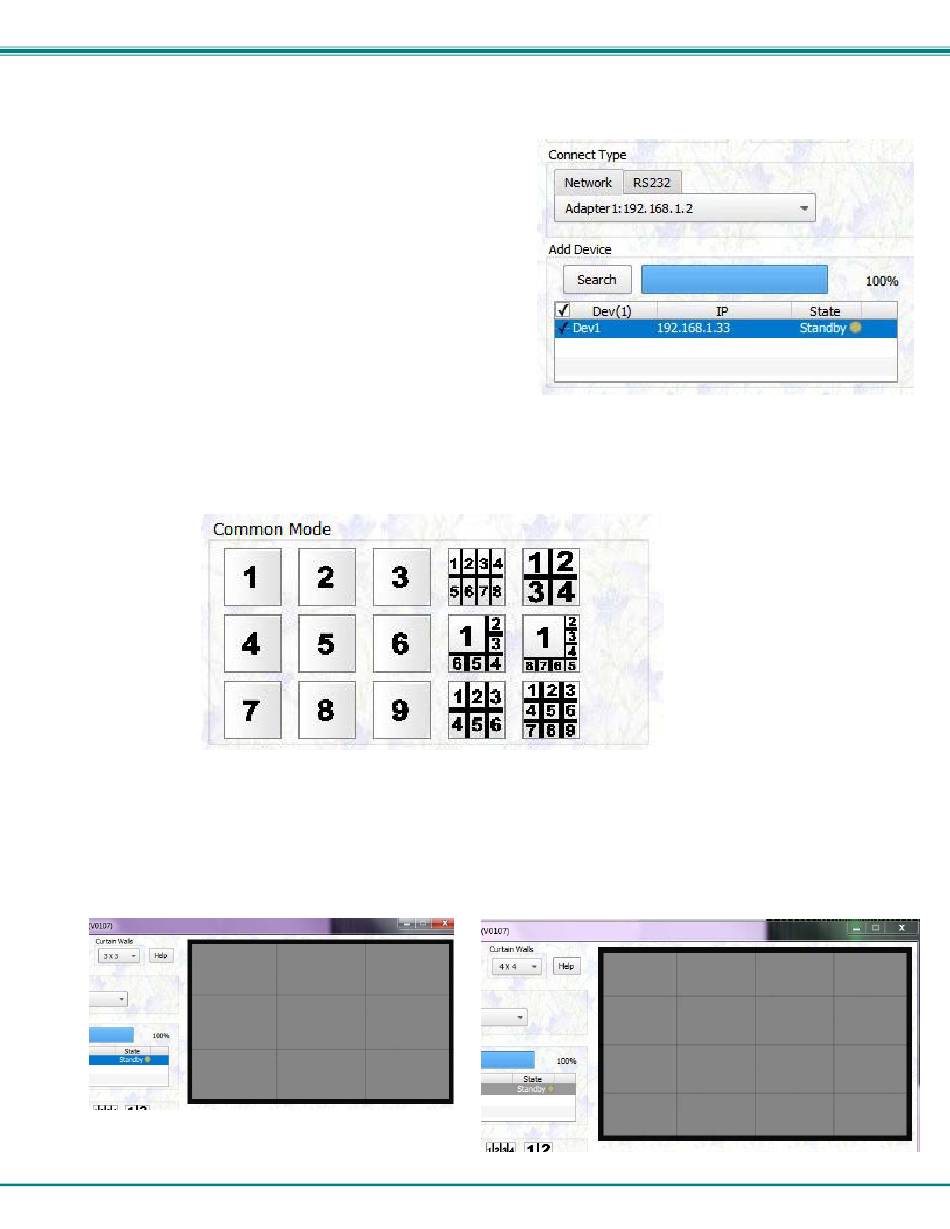

Ethernet
Connect an Ethernet cable, wired straight through, between the "LAN"
port on the SPLITMUX and an Ethernet port on a computer. Open
the application, and select the "Network" tab under "Connect Type".
Click the "Search" button under "Add Device", and double click the
IP address of the SPLITMUX.
A connection to the SPLITMUX will be made.
You are now ready to control the display mode of the SPLITMUX.
Modes
Select between the display modes available under "Common Mode". Choose between inputs 1 through 9, or any of 6 other pre-
determined combinations.
If a custom mode is desired, select between S1 - S4, and then drag the inputs you want to view, CH1 -CH9, up into the display
box. Stretch the Channel borders to the way you want to view it. Once you have applied all of the Channels for your custom
layout, click Save and that layout will be saved as the S# you have selected. Going forward, anytime you want to see that layout,
click that S#. To delete that layout, click "Delete".
To help with positioning, you can select 3X3 or 4X4 curtain walls to provide and outline to assist in placing your channel borderes.
