NTI 3G-SDI Screen Splitter/Multiviewer

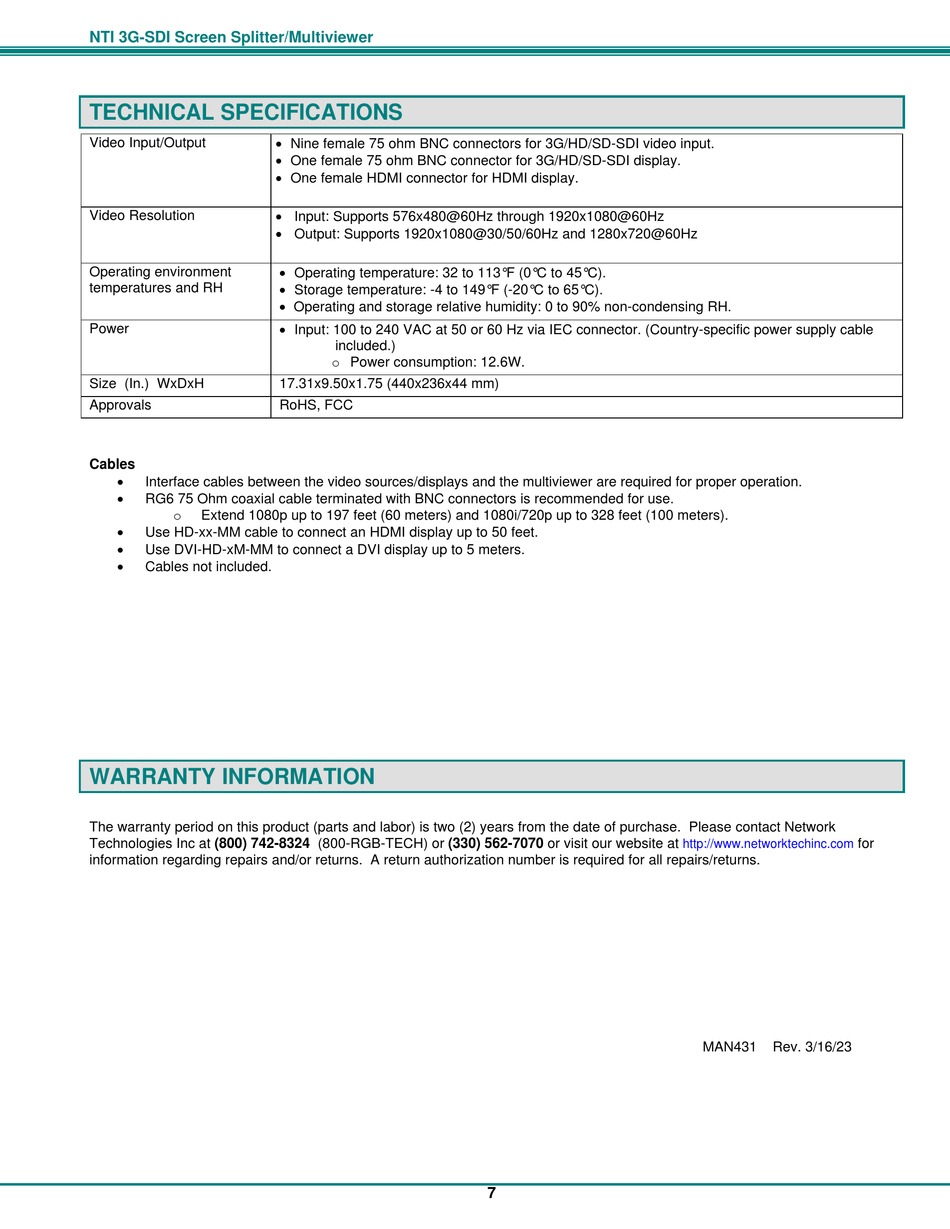

TECHNICAL SPECIFICATIONS

Video Input/Output
Video Resolution
Operating environment
temperatures and RH
Power
Size (In.) WxDxH
Approvals
Cables

Interface cables between the video sources/displays and the multiviewer are required for proper operation.

RG6 75 Ohm coaxial cable terminated with BNC connectors is recommended for use.
Extend 1080p up to 197 feet (60 meters) and 1080i/720p up to 328 feet (100 meters).
o

Use HD-xx-MM cable to connect an HDMI display up to 50 feet.

Use DVI-HD-xM-MM to connect a DVI display up to 5 meters.

Cables not included.

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at
information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
 Nine female 75 ohm BNC connectors for 3G/HD/SD-SDI video input.
 One female 75 ohm BNC connector for 3G/HD/SD-SDI display.
 One female HDMI connector for HDMI display.
 Input: Supports 576x480@60Hz through 1920x1080@60Hz
 Output: Supports 1920x1080@30/50/60Hz and 1280x720@60Hz
 Operating temperature: 32 to 113°F (0°C to 45°C).
 Storage temperature: -4 to 149°F (-20°C to 65°C).
 Operating and storage relative humidity: 0 to 90% non-condensing RH.
 Input: 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable
included.)
o Power consumption: 12.6W.
17.31x9.50x1.75 (440x236x44 mm)
RoHS, FCC
7
for
http://www.networktechinc.com
MAN431 Rev. 3/16/23
