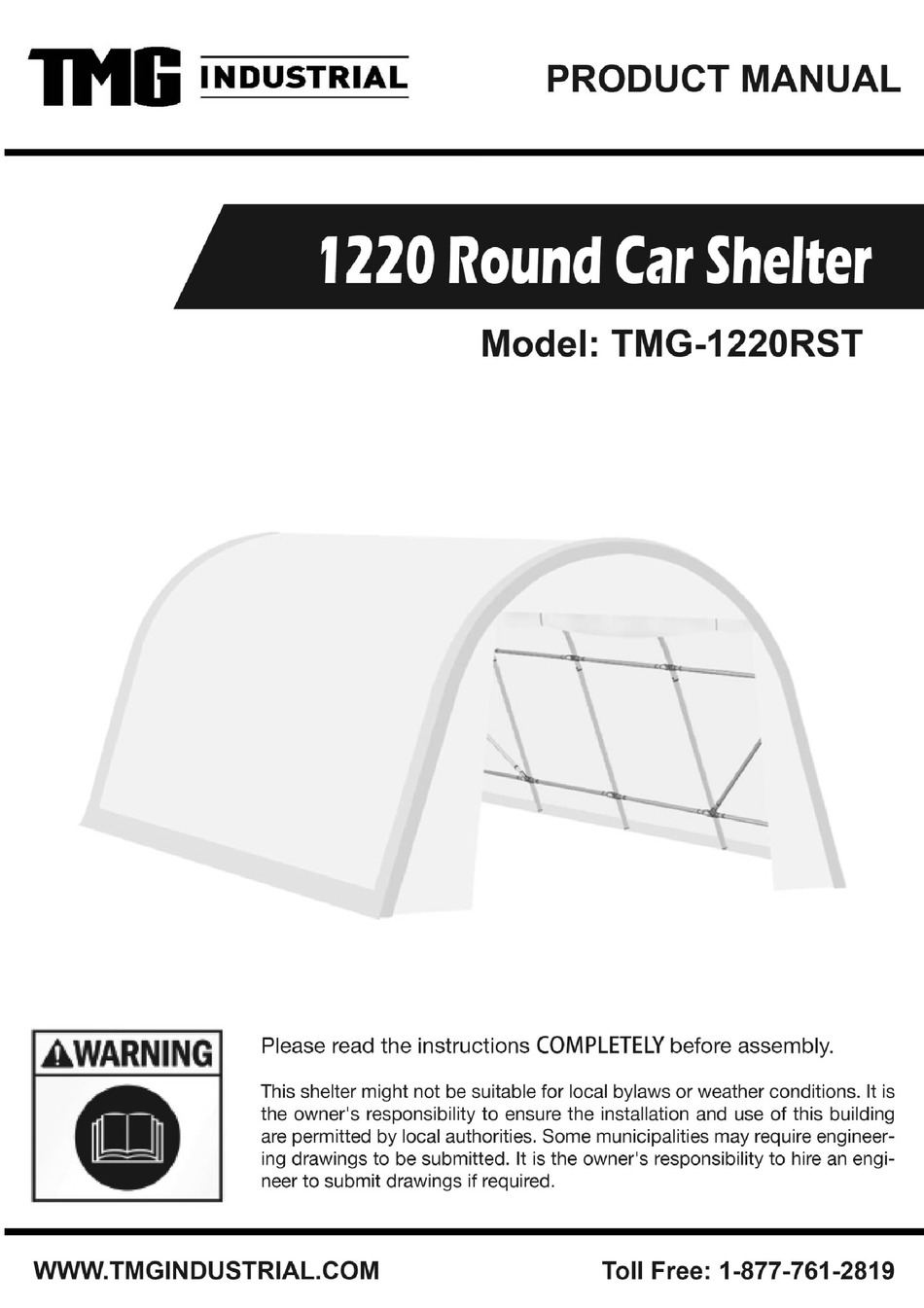

- Page 1 主要规格: 总装配尺寸: L6 x W3.66 x H2.44 (m) / 12ft x20ft x8ft 外侧宽度: 3.66 m / 12ft Page 0 of...
- Page 2 Main Specifications : Overall assembled size : W3.66 x L6 x H2.44 (m) / 12 x 20 x 8(ft) Front roll-up door : Height clearance : 75 inch Width clearance : 79 inch (top)-100 inch (bottom) Prior to assembly Please read the instructions carefully before installation.
- Page 3 122008RST Part List Parts Graphial Description Quantity Code Peak arch tube Middle arch tube Lower straight tube Purlins Diagonal bracing bar Corner baseplate Middle baseplate Tube clamp Expansion bolt M10*100mm Half round head bolt M10*60mm Hex bolt M8*60mm Fabric Top cover Front cover panel w/roll up door Rear cover panel...
- Page 4 Mark the ground with a line showing the positions of base plates, front, and rear doors. All lines should be drawn from center to center of all baseplate tubes. Diagonal line X must be equal to Y. Baseplates: all baseplates must be installed firmly with expansion bolts (#9) on this step (Figure 1).
- Page 5 Lay down all (5) trusses on the ground as Figure 3 when the assembly is all completed and before moving to next step. Figure 3 Step 3 : Put up all trusses Put up all 5 trusses, use hex bolt (#11) to secure the truss to the baseplates , but do not bolt it completely firmed yet (refer to Figure 4) Figure 4 Page 4 of...
- Page 6 Install all 5 purlins (#4) on each section, and the two diagonal bracing bars (#5) on the first and last section,use bolt (#10), (#8) and tube clamp (#8). See Figure 5. Figure 5 Step 4 : Install front and rear cover panels The front and rear cover must be zipped before the installation.
- Page 7 Figure 7 Step 5 : Install roof cover. Do not install the cover during windy weather! Unpack the top cover and place it along one of the long sides of the structure. Pull the cover over the top of the structure from both ends, to have one person standing inside to push upwards will help to move the cover smooth without any damage (Figure 8).
- Page 8 Step 6 : Stretch and tighten top cover. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the cover. Start from the top center and go toward both sides on each end.
