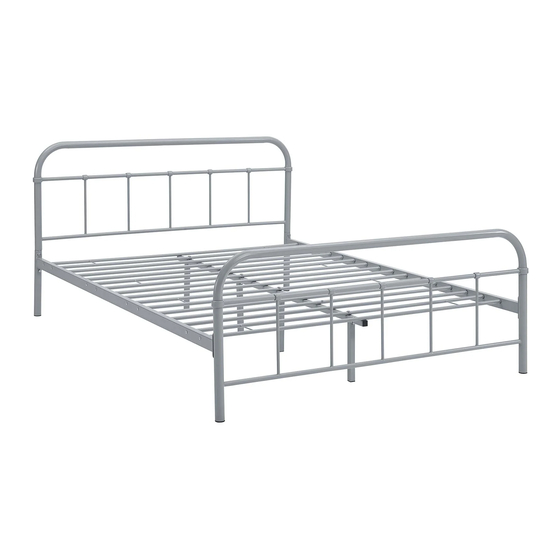

MOD-5532/5533
Thank you for purchasing the MODWAY FULL/QUEEN BED！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximately assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensur e that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.

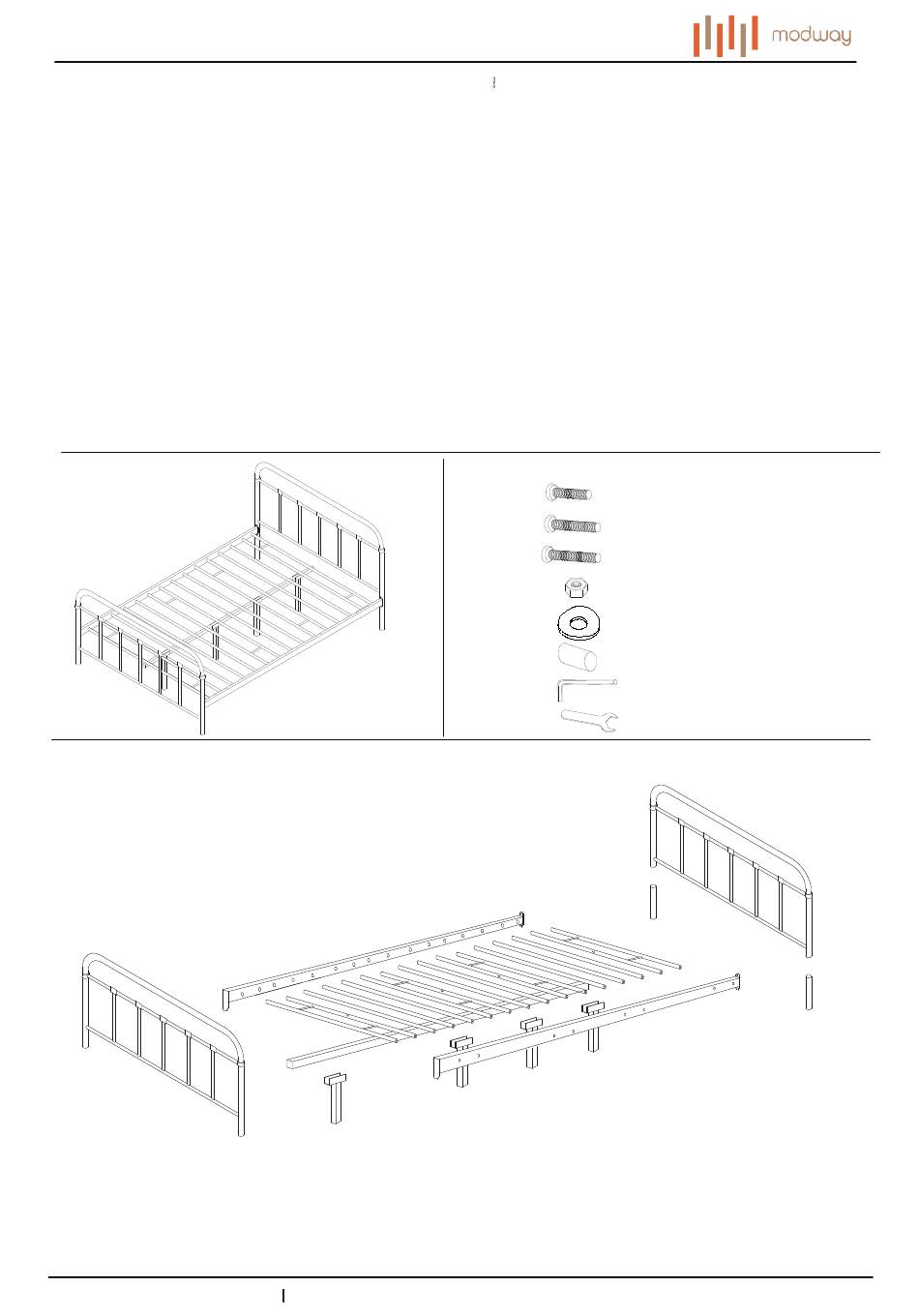

Component:
2
1
Headboard
3
Side Rail
5
Single Slat
7
Center Rail
Customer Service 908-368-1025︱www.modwayfurniture.com
FULL/QUEEN BED
3
4
5
4
7
8
x1
x2
x8
x1
Hardware:
A
B
C
D
E
F
G
H
4
5
4
5
8
8
8
2
Footboard
4
Double Slat
6
Low Post
8
Support Leg
Short Bolt M6x20mm
Medium Bolt M6x35mm
Long Bolt M6x50mm
Nut M6
Arc Washer
Rubber Insert
Allen Wrench
Open Wrench
1
6
3
x1
x4
x2
x4
Page 1 of 3
x28
x4
x4
x8
x4
x16
x1
x1
6
