Comeup WK-100H Installation Instruction

WK-100H
INSTALLATION INSTRUCTION
Includes:
1.Wireless Receiver
2.Wireless Transmitter.883844
Specifications:
Control module
Frequency band
Typical operating range
Applicable current
Function
Current range
Power Input
Power lead for main power source
Power lead for winch
Power Output
Control lead
contactors Number
Power supply
Receiver
Function
Protection degree
Power supply
Button
Power consumption
Battery
Protection degree
Operating temperature
Storage temperature
Humidity
Complied with RED directive
AC110V PN:883874
AC220V PN:883875
AC240V PN:883881
Wireless Control Kit For COMEUP CSH Winch
Indirect control +Wireless Control
433MHz
100 M (328 ft)
AC 110V 15A / 220V 7.5A / 240V 7.5A
Go up / Go down / Emergency stop
110V OR 220V OR 240V
2.0 mm × 3C/3P quick connector
2.0 mm × 3C/3P quick connector
2.0 mm × 6C/6P quick connector
3 sets
AC 110V / 220V / 240V
Go up / Go down / built-in buzzer
IP67
DC3V
Emergency stop switch, Power on switch
16mA
LR6(AA)1.5V*2
IP65
-25°C ~ + 55°C
-40°C ~ + 65°C
90%RH
2014/53/EU
1

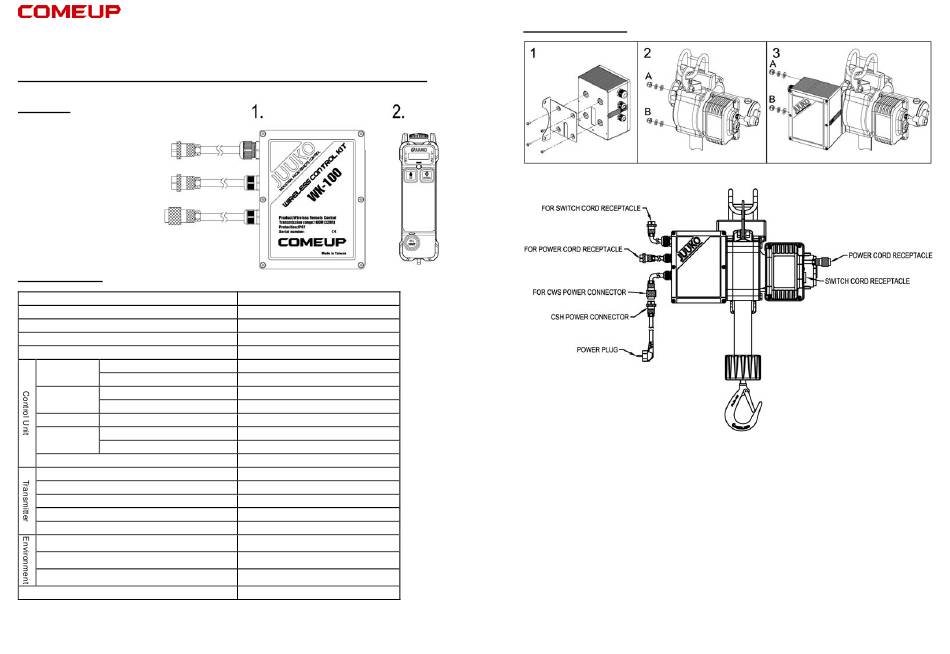

Installation Guide:
1. Assemble the bracket and wireless control kit with M5x12L screw.
2. Disassemble the A and B nut (M10) on CSH winch.
3. Assemble the wireless control kit and CSH winch. (wireless remote bracket passing
through the screw, then fasten with A and B nut.)
2
