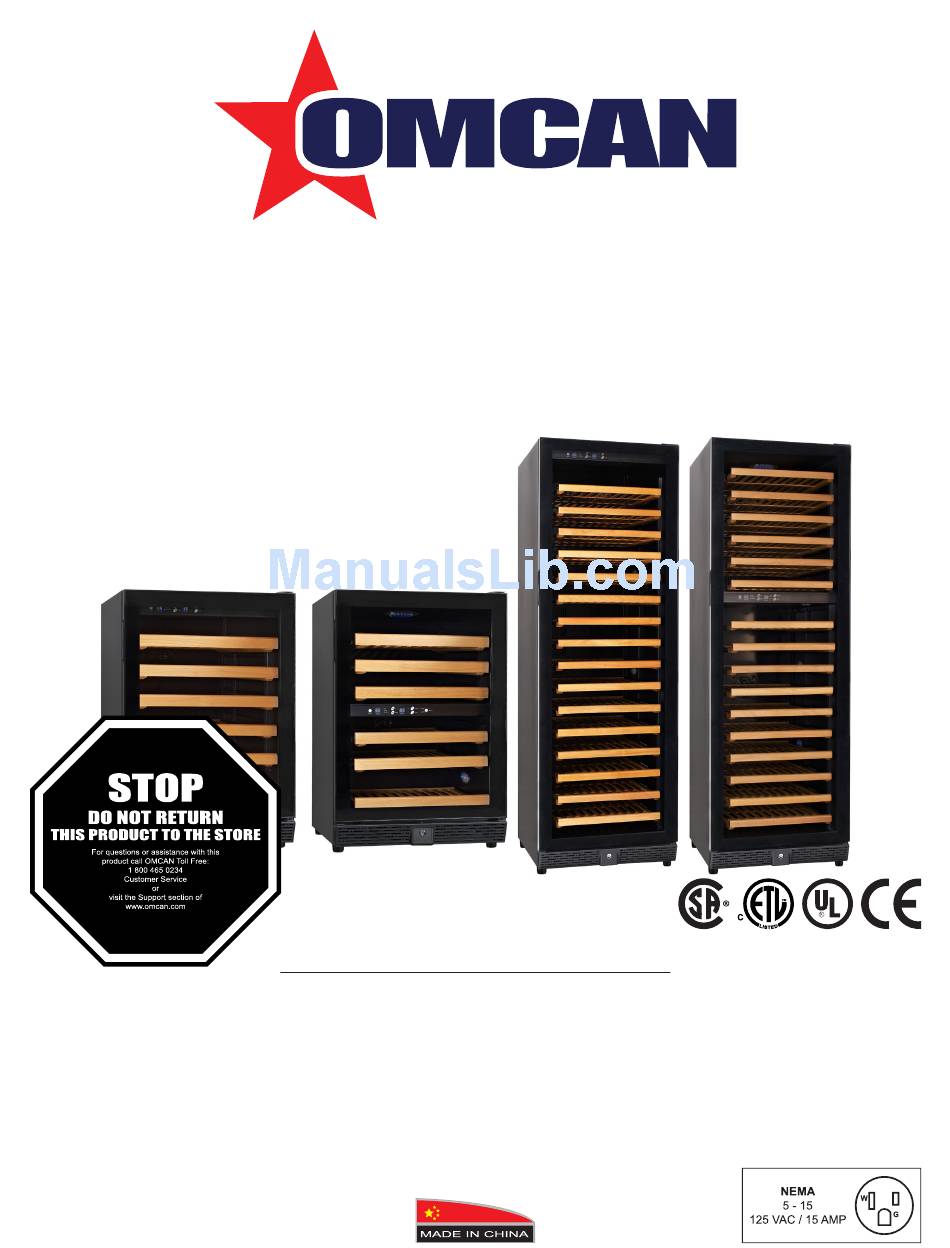

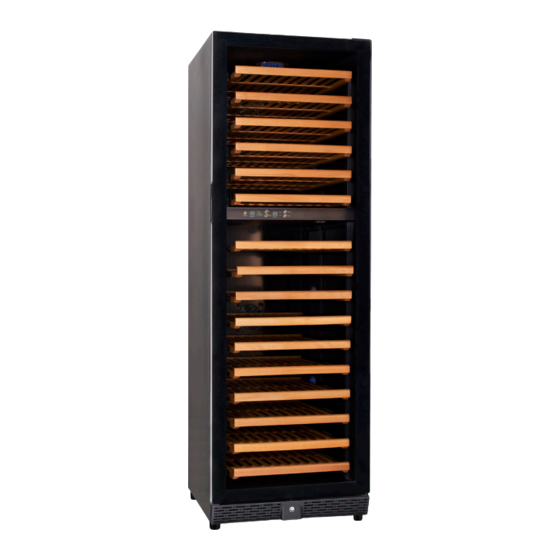

Wine Coolers
Models WC-CN-0045-S, 0045-D, 0171-S, 0171-D
Items 31877, 37493, 31878, 37494
Instruction Manual
Revised - 8/11/2015
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: sales@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC-CN-0045-S and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan WC-CN-0045-S

Summary of Contents for Omcan WC-CN-0045-S

  • Page 1 Wine Coolers Models WC-CN-0045-S, 0045-D, 0171-S, 0171-D Items 31877, 37493, 31878, 37494 Instruction Manual Revised - 8/11/2015 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: sales@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model WC-CN-0045-S / Model WC-CN-0045-D Model WC-CN-0171-S / Model WC-CN-0171-D Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 8 - 9 Operation --------------------------------------------------------------------------------------- 9 - 10...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty PLEASE BE CAREFUL WHILE USING Our Products use single-phase AC115 power supply. If AC power supply is not used, 1000W above automatic voltage regulator should be installed. This product must use a dedicated outlet and be properly grounded. The power cord is fitted with a standard three-wire plug.
  • Page 6 Once the castors are fitted, do not move the cabinet over rugged ground. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.

  • Page 7: Technical Specifications

    Single temperature models 5-18°C / 41-64.4°F. Dual temperature models: upper 5-10°C / 41-50°F, lower 10-18°C / 50-64.4°F. TECHNICAL PARAMETERS Model WC-CN-0171-S WC-CN-0045-S WC-CN-0171-D WC-CN-0045-D Upper Zone: 5 - 10°C / 41 - 50°F Temp Range 5 - 18°C / 41 - 64.4°F Bottom Zone: 10 - 18°C / 50 - 64.4°F...

  • Page 8: Installation

    Installation 1. Remove all packaging components Door handle, packaging base, adhesive tape used to fix accessories and protective pads should all be disassembled. Fix the screws according to the diagram (screws are kept in the instruction bag or have already been installed). 2.

  • Page 9: Operation

    Installation How to use the Shelves Warning: The shelves should be pulled out gently. Never withdraw more than 2 laden shelves at one time. Operation Running and Temperature Regulating 1. Insert the plug to power up the cabinet. 2. Press the on/off button to start the cabinet. 3.

  • Page 10: Maintenance

    Operation 8. For dual zone cabinets, the upper and lower zones are on separate controls. The upper zone can be set between 5-10°C (41-50°F). The lower zone can be set between 10-18°C (50-64°F). The desired temperatures for different wines are as follows. 13-18°C (55-64°F) for red wine, 8-12°C (46-54°F) for white wine, 5-7°C (41-45°F) for sparkling wine, 10-12°C (50-54°F) for ice wine.
  • Page 11 Maintenance Under normal circumstances, keep the cabinet running continuously. Never store your cabinet in the open air. If the power cord is damaged, ensure that it is replace by an approved specialist. Consult your distributor. RUNNING CHARACTERISTICS The following situations are normal •...

  • Page 12: Troubleshooting

    Troubleshooting Please check the following issues before maintenance Problem Likely cause Unit not operating The fuse condition. The voltage. Plug and connection components. The outer temperature is lower than the set temperature. The connection of the plug and outlet. Wine cellar running constantly Frequent opening or not being tightly closed in hot weather. Under direct sunlight, too close to heat source, such as stove.

  • Page 13: Parts Breakdown

    Parts Breakdown Model WC-CN-0045-S 31877...
  • Page 14 Parts Breakdown Model WC-CN-0045-S 31877 Item Item Item OMC ID Description Position OMC ID Description Position OMC ID Description Position 72060 OWC-54S-01 Cabinet for OWC-54S 72074 OWC-54S-15 Big Shelf for OWC-54S 72088 OWC-54S-29 Small Lamp for OWC-54S Big Lamp Holder for...
  • Page 15 Parts Breakdown Model WC-CN-0045-D 37493...
  • Page 16 Parts Breakdown Model WC-CN-0045-D 37493 Item Item Item OMC ID Description Position OMC ID Description Position OMC ID Description Position Small LED Components 72013 OWC-54D-01 Cabinet for OWC-54D 72029 OWC-54D-17 Lower Plate for OWC-54D 72045 OWC-54D-33 for OWC-54D Big Lamp Holder for 72014 OWC-54D-02 72030...
  • Page 17 Parts Breakdown Model WC-CN-0171-S 31878...
  • Page 18 Parts Breakdown Model WC-CN-0171-S 31878 Item Item Item OMC ID Description Position OMC ID Description Position OMC ID Description Position Small LED Components 72150 OWC-168S-01 Cabinet for OWC-168S 72165 OWC-168S-16 Big Shelf for OWC-168S 72180 OWC-168S-31 for OWC-168S Big Lamp Holder for Door Hinge for OWC- Small Lamp for OWC- 72151...
  • Page 19 Parts Breakdown Model WC-CN-0171-D 37494...
  • Page 20 Parts Breakdown Model WC-CN-0171-D 37494 Item Item Item OMC ID Description Position OMC ID Description Position OMC ID Description Position Control Panel for OWC- Small Lamp Holder for 72102 OWC-168D-01 Cabinet for OWC-168D 72118 OWC-168D-17 72134 OWC-168D-33 168D OWC-168D Big Lamp Holder for Plate in Lower Middle for Small LED Components 72103...

  • Page 21: Electrical Schematics

    Electrical Schematics Model WC-CN-0045-S 31877...
  • Page 22 Electrical Schematics Model WC-CN-0045-D 37493...
  • Page 23 Electrical Schematics Model WC-CN-0171-S 31878...
  • Page 24 Electrical Schematics Model WC-CN-0171-D 37494...

  • Page 25: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
