LawnMaster CLHT2452-01 Instruction Manual

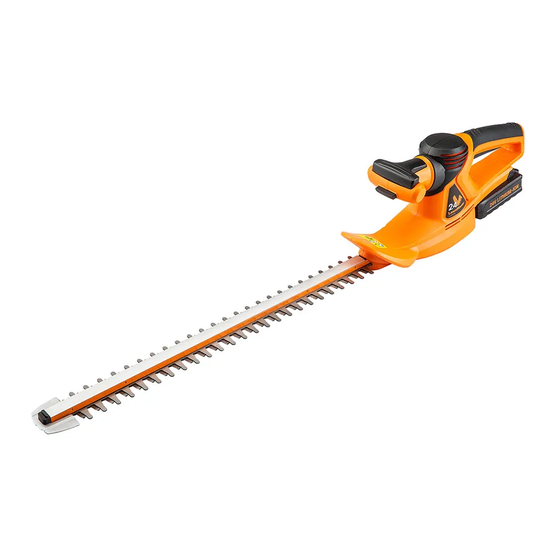

24v lithium-ion cordless hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

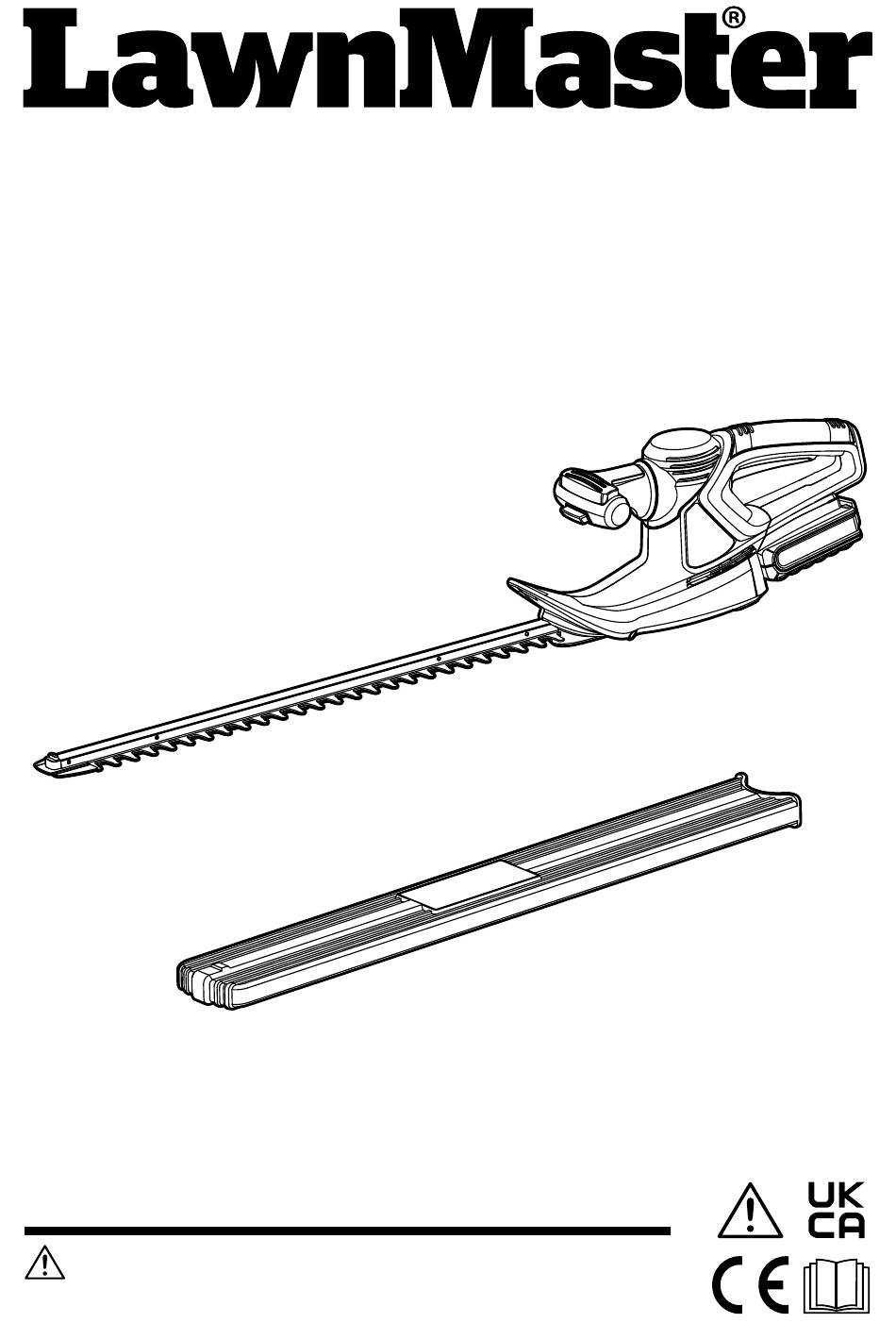

Instruction Manual
24V Lithium-Ion Cordless Hedge Trimmer CLHT2452
CLHT2452-01 (With Battery and Charger)
CLHT2452-BARE (Battery and Charger Not Included)
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLHT2452-01 and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster CLHT2452-01

Summary of Contents for LawnMaster CLHT2452-01

  • Page 1 Instruction Manual 24V Lithium-Ion Cordless Hedge Trimmer CLHT2452 CLHT2452-01 (With Battery and Charger) CLHT2452-BARE (Battery and Charger Not Included) Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 3 Not included with CLHT2452-BARE...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-16 In the Box Assembly Operation 18-21 Maintenance 22-23 Troubleshooting Technical Data Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution. Read instruction manual. Wear eye and ear protection. Do not use the hedge trimmer in the rain or on wet hedges. Noise level specification L in dB(A).
  • Page 6 SYMBOLS WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual. If you do not understand the warnings and instructions in the instruction manual, do not use this product.

  • Page 7: Safety Information

    SAFETY INFORMATION WARNING READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Work Area Safety ■ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 8 SAFETY INFORMATION protection. Protective equipment such as dust mask, nonslip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
  • Page 9 SAFETY INFORMATION injury and fire. ■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Page 10 SAFETY INFORMATION ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 11 SAFETY INFORMATION electric shock. ■ For your personal safety: Wear suitable work clothes such as boots with non-slip soles, sturdy long trousers, gloves and goggles. Do not use this tool while walking barefooted or while wearing open sandals. ■ Do not use the hedge trimmer in the rain. ■...
  • Page 12 SAFETY INFORMATION or are being instructed to operate the appliance by such a person. ■ Children must be supervised in order to ensure that they do not play with the equipment. Residual Risks Even if properly operating and handling this electric tool, some residual risks will remain.
  • Page 13 SAFETY INFORMATION Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
  • Page 14 SAFETY INFORMATION minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 15 SAFETY INFORMATION agent of the same or a fully qualified person in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce the risk of electric shock. ■...

  • Page 16: In The Box

    SAFETY INFORMATION the manufacturer from his or her legal liability. IN THE BOX 1. Rear Handle 9. Ventilation Slots 2. On/Off Switch, Rear 10. Blade Guard 3. Rear Safety Guard 11. MX 24V 2.0Ah Battery Pack* 4. Hand Protection 12. Release Button 5.

  • Page 17: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. Installing/Removing the Battery Pack (See Fig. 1) IMPORTANT! Before using the hedge trimmer, read all safety precautions and follow the instructions in the Battery Pack and Charger section.

  • Page 18: Operation

    OPERATION Battery Pack Operation WARNING ® Use only with 24V Lawnmaster Chargers: MX 24V HYCH0132400500B (EU), HYCH0132400500G (UK), 24LFC12-01 (UK) or 24LFC12-03 (EU). The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack.
  • Page 19 OPERATION ■ Charger LED ( 1 ) • If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation. •...
  • Page 20 OPERATION from the body. Ensure that the hedge trimmer is in contact with no other objects before switching This hedge trimmer features a two-hand power switch to ensure safe starting. ■ Make sure that the battery is installed properly. ■ Carefully remove the blade guard from the hedge trimmer blade (Fig. 3). ■...
  • Page 21 OPERATION Trimming (See Fig. 5 & 6) ■ Using a pruning tool to cut and remove branches exceeding the cutting width capacity of this product of 15 mm before operation. ■ Move the hedge trimmer lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub.

  • Page 22: Maintenance

    MAINTENANCE WARNING When servicing, use only recommended replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. WARNING Wear safety gloves when working on the cutting device and close to it.
  • Page 23 MAINTENANCE Lubricating the Blade WARNING Always allow the blades of the hedge trimmer to come to a stop and remove the battery pack before lubricating. Failure to do so could result in accidental starting causing possible serious personal injury. For easier operation and longer blade life, lubricate the hedge trimmer blade before and after each use.

  • Page 24: Troubleshooting

    TROUBLESHOOTING WARNING ONLY PERFORM THE STEPS DESCRIBED WITHIN THESE INSTRUCTIONS! WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Battery is discharged. Recharge the battery. Battery not in the hedge Insert the battery. trimmer. Turn on the hedge trimmer. Appliance won‘t start.

  • Page 25: Technical Data

    TECHNICAL DATA 24V Cordless Hedge Trimmer Type Cordless, Battery-powered Motor Cutting Device Dual-Action Reciprocating Blades Maximum Branch Cutting Width 15mm Cutting Bar Length 520mm Sound Pressure Level (L 78dB(A) K=3dB Sound Power Level (L ) Guaranteed 101dB(A) Sound Power Level (L ) Measured 98dB(A) K=3dB Vibration (a...

  • Page 26: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
  • Page 28 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6...
  • Page 30 CLHT2452 Suzhou Cleva Electric Appliance Co. Ltd 8 Ting Rong Street, Suzhou Industrial District 215122 Suzhou, Jiangsu Province, P.R.C www.cleva-europe.com...
  • Page 31 Instruction Manual 24V Lithium-Ion Cordless Blower CLBL2406-1 CLBL2406-1 01 (With Battery and Charger) CLBL2406-1-BARE (Battery and Charger Not Included) Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 33 Not included with CLBL2406-1-BARE...
  • Page 34 TABLE OF CONTENTS Section Page Symbols Safety Information 7-13 In the Box Assembly Operation 15-16 Maintenance Troubleshooting Technical Data Recycling and Disposal...

  • Page 35: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Wear eye protection. Wear hearing protection. Do not use as a step. Do not expose to rain.
  • Page 36 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist.

  • Page 37: Safety Information

    SAFETY INFORMATION WARNING READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Training ■ Read the instructions carefully. Be familiar with the controls and the correct use of the machine. ■ Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
  • Page 38 SAFETY INFORMATION where ejected material could cause injury. ■ Before using, always visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
  • Page 39 SAFETY INFORMATION blower. Make sure that all moving parts have come to a complete stop - whenever you leave the machine, - before checking, cleaning or working on the machine. ■ Handle the unit with care. Clean the ventilation slots regularly;...
  • Page 40 SAFETY INFORMATION Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
  • Page 41 SAFETY INFORMATION minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 42 SAFETY INFORMATION agent of the same or a fully qualified person in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce the risk of electric shock. ■...

  • Page 43: In The Box

    SAFETY INFORMATION considered unauthorised use and relieves the manufacturer from his or her legal liability. IN THE BOX 1. Handle 7. Release Button 2. Blower Tube 8. MX 24V Battery Charger with VDE plug 3. High Velocity Tip (included in mainland EU products only)* 4.

  • Page 44: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. Blower Assembly (See Fig. 1) ■ Align the widest end of the blower tube with the front opening on the blower. ■...

  • Page 45: Operation

    OPERATION Battery Pack Operation WARNING ® Use only with 24V Lawnmaster Chargers: MX 24V HYCH0132400500B (EU), HYCH0132400500G (UK), 24LFC12-01 (UK) or 24LFC12-03 (EU). The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack.
  • Page 46 OPERATION ■ Charger LED ( 1 ) • If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation. •...

  • Page 47: Maintenance

    MAINTENANCE WARNING When servicing, use only recommended replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. General Maintenance ■...

  • Page 48: Troubleshooting

    TROUBLESHOOTING WARNING ONLY PERFORM THE STEPS DESCRIBED WITHIN THESE INSTRUCTIONS! WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, Make sure the latches on the The battery is not secure. bottom of the battery pack snap into place.

  • Page 49: Technical Data

    TECHNICAL DATA 24V Cordless Blower Type Cordless, Battery-powered Voltage Max air volume 2.8m /min Max air speed 53m/s Sound Pressure Level (L 74dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A) Sound Power Level (L ) Measured 85.1dB(A) K=2dB Vibration (a ≤2.5m/s Weight (Without 2.0Ah Battery) 1.11kg...

  • Page 50: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
  • Page 52 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5...
  • Page 54 CLBL2406-1 Suzhou Cleva Electric Appliance Co. Ltd 8 Ting Rong Street, Suzhou Industrial District 215122 Suzhou, Jiangsu Province, P.R.C www.cleva-europe.com...
