Instruction Manual

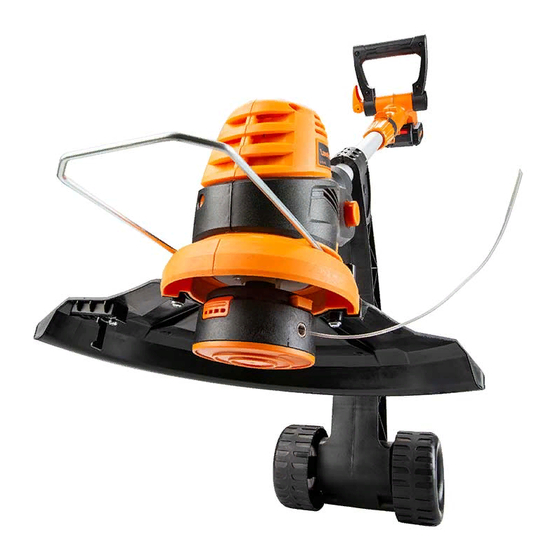

24V Lithium-ion Cordless Grass Trimmer CLGT2425S
CLGT2425S-01 (With Battery and Charger)
CLGT2425S-BARE (Battery and Charger Not Included)
Original Instructions
WARNING: Read all safety instructions carefully before assembling and operating this
machine. Ensure the machine has been assembled correctly and safely. Keep the instructions
safe and pass them on to any subsequent user so that the information is always available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLGT2425S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster CLGT2425S

Summary of Contents for LawnMaster CLGT2425S

  • Page 1 Instruction Manual 24V Lithium-ion Cordless Grass Trimmer CLGT2425S CLGT2425S-01 (With Battery and Charger) CLGT2425S-BARE (Battery and Charger Not Included) Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions...
  • Page 3 Not included with CLGT2425S-BARE Fig.2 Fig.1 Fig.3 Fig.4 Fig.5 Fig.6...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-13 In the Box Assembly Operation 15-20 Maintenance 21-22 Troubleshooting 23-24 Technical Data Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Do not expose to rain. Wear eye protection. Wear hearing protection.
  • Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not dispose of battery packs in rivers or immerse in water. Do not subject the battery to direct sunlight over long periods and do not leave Recycle electrical waste products in an environmentally safe way where facilities exist.

  • Page 7: Safety Information

    SAFETY INFORMATION WARNING Read the instructions carefully. Be familiar with the controls and the correct use of the appliance. Personal Safety capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 8 SAFETY INFORMATION Check for alignment of moving parts, binding of moving parts, breakage of parts, mountings and any other conditions that may affect its correct operation. Do not use the tool if any parts are damaged or defective. Have any damaged or defective parts repaired or replaced by a When not in use, tools should be stored in a dry, safe place out of the reach of children.
  • Page 9 SAFETY INFORMATION is designed only to be used with nylon cutting line. made for this machine by the manufacturer. Failure to do so can result in personal injury. out any maintenance or cleaning work, and while the product is not in use or storage. trimmer.
  • Page 10 SAFETY INFORMATION cutting line never comes into contact with the operator’s body, especially hands and feet. away from the user. wire or other foreign bodies before operating the trimmer. Battery Safety Information manufacturer. A charger that is suitable for one type of another battery pack.
  • Page 11 SAFETY INFORMATION leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets minutes, then seek immediate medical attention. other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 12 SAFETY INFORMATION which could cause shorting and electric shock. If damaged, immediately discontinue use. Replace the charger with the manual. If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service prevent hazards. outlets will reduce the risk of electric shock.

  • Page 13: In The Box

    20. MX 24V Battery Charger with BS Plug 9. Safety Guard with Line Cutting Blade 10. Trimming Line 21. MX 24V Battery Charger with VDE Plug 11. Trimmer Head with Line Spool 12. Plant Protector 22. Instruction Manual *Not included with CLGT2425S-BARE...

  • Page 14: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. Fitting the Safety Guard (See Fig. 1) WARNING with the blade. Failure to avoid contact can result in serious personal injury. Attaching the Auxiliary Handle (See Fig. 2) place, fold the knob inwards using moderate force. If it feels too tight when folding in, turn it Supporting Wheels (Optional Use) (See Figs.

  • Page 15: Operation

    Battery Pack Operation WARNING ® Use only with 24V Lawnmaster life. Protect the battery from heat, from continuous exposure to sun and keep away from radiation or other heat sources. Do not leave the battery in the trimmer in direct sunlight over long periods.
  • Page 16 OPERATION Charger LED ( 1 ) • If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation. • Charging: a continuous red LED on the charger indicates that the battery is charging normally.
  • Page 17 OPERATION WARNING After turning off the appliance, the trimmer head will continue to rotate for some time. Allow the Cutting Device - Advancing the Trimmer Line (See Fig. 9) NOTE: A short or worn trimming line will not cut well. If you notice reduced cutting performance, you should check if there is enough trimming line on the spool.
  • Page 18 OPERATION Safety Guard WARNING The line cutting blade on the safety guard is delivered with a protective covering. Ensure this is Auxiliary Handle (See Fig. 10) The auxiliary handle can be set to various positions. Set the handle in such a manner that the trimmer head is slightly tilting forwards when in the working position.
  • Page 19 OPERATION Pivoting Head (See Fig. 15) Plant Protector (See Fig. 16) WARNING Only adjust the plant protector position when the product is switched off and the trimmer head is at a complete stop. be hit by the trimmer head. Push the plant protector to its outer position for operation until it snaps into place. Push the plant protector to its inner position until it snaps into place after operation and when Trimming (See Figs.
  • Page 20 OPERATION switched off and the battery removed. sensitive bark, and damage fence posts. not come into contact with them. Use the plant protector to ensure that the cutting device does Vertical Cutting/Lawn Edge Trimming (See Figs. 22-23) WARNING Be particularly careful and attentive when holding the trimmer head vertically. To avoid injuries, keep enough distance to the trimmer head.

  • Page 21: Maintenance

    MAINTENANCE General Maintenance solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean, dry cloths to remove dirt, dust, oil, grease, etc. with a dry cloth occasionally. Do not use water as this may damage any electrical components. Storage cutting device with a soft, dry brush.
  • Page 22 MAINTENANCE WARNING Before replacing the spool line, make sure the battery is removed from the trimmer. The line cutting blade, located on the safety guard is sharp. Take extra care and wear protective gloves. the spool. Ensure the line is not held in the parking slot on the spool before replacing the spool cover referring to the Line Replacement section.

  • Page 23: Troubleshooting

    TROUBLESHOOTING WARNING WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION The battery pack is not properly Insert the battery pack properly. inserted. Remove and charge the battery The battery pack is discharged. pack. The product doesn’t start. The battery pack is damaged.
  • Page 24 TROUBLESHOOTING The battery contacts are inserting and removing the battery contaminated. battery. No-charging procedure Check the mains voltage and fuse, possible. Socket outlet, fuse, mains cable if necessary, contact the after or battery charger are defective. sales helpline. The battery has a fault. Contact the After Sales Helpline.

  • Page 25: Technical Data

    TECHNICAL DATA 24V Grass Trimmer Rated Voltage Cutting Width 25cm Speed 9200/min 3.4m/s Cutting Line Diameter 1.6mm 1.76kg CHARGER HYCH0132400500B Model No. HYCH0132400500G Charger Input 100-240V ~ 50/60Hz 0.32A Charger Output 0.5A Weight of Charger 0.2kg Insulation Protection of Charger BATTERY Model No.

  • Page 26: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
