Operator's Manual
10" 24V MAX* Lithium-ion Cordless Grass Trimmer CLGT2410H
Save this manual for future reference
* Maximum initial battery workload voltage (measured without a workload) is 24 volts.
Nominal voltage is 21.6 volts.
Battery Model Number is 24LB4005-C
Charger Model Number is 24LFC14-ETL
Read all safety rules and instructions carefully before operating this tool.
Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLGT2410H and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster CLGT2410H

Summary of Contents for LawnMaster CLGT2410H

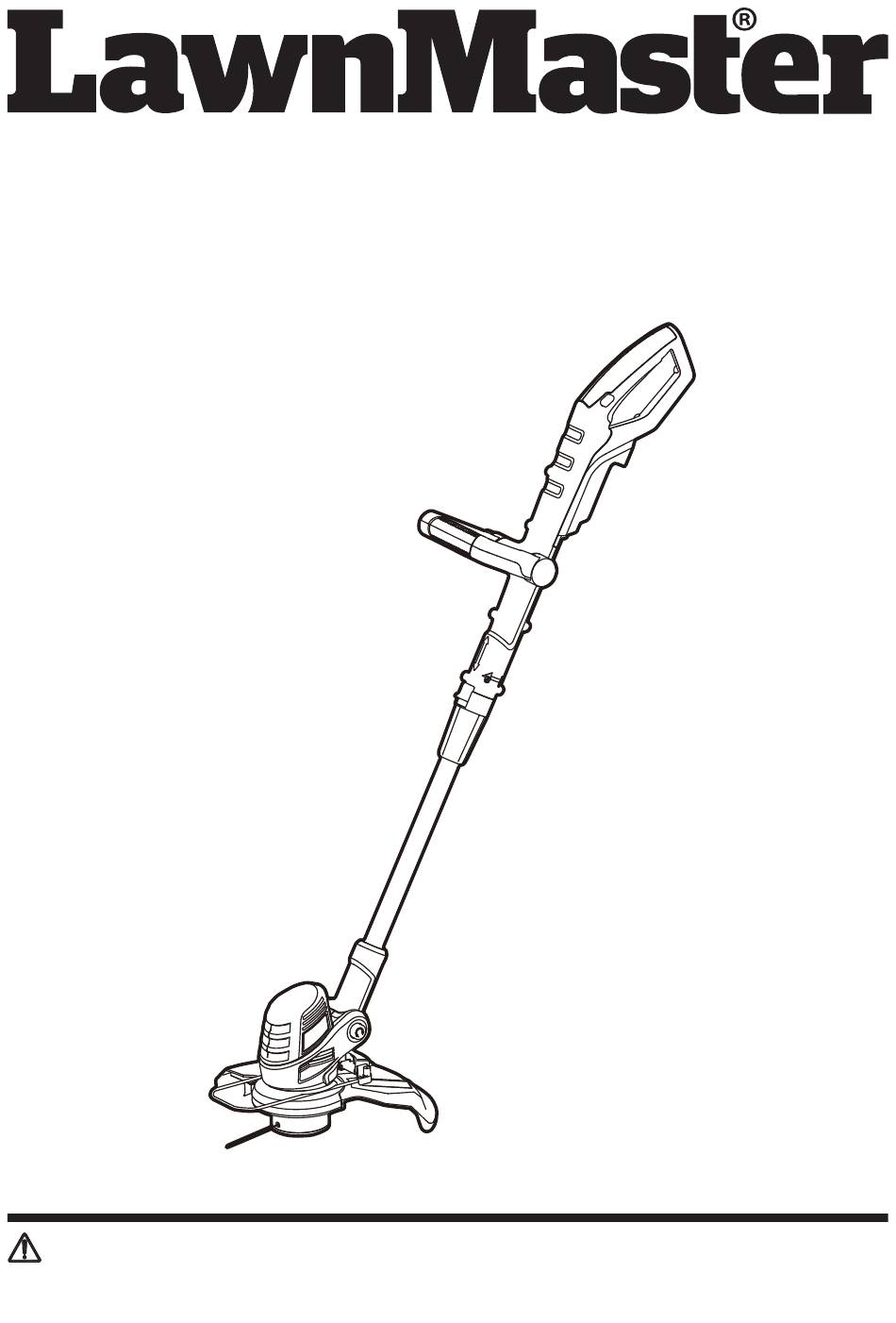

  • Page 1 Operator's Manual 10" 24V MAX* Lithium-ion Cordless Grass Trimmer CLGT2410H Save this manual for future reference * Maximum initial battery workload voltage (measured without a workload) is 24 volts. Nominal voltage is 21.6 volts. Battery Model Number is 24LB4005-C Charger Model Number is 24LFC14-ETL Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    Page TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS KNOW YOUR GRASS TRIMMER 9-10 ASSEMBLY 11-14 BATTERY PACK AND CHARGER 15-17 OPERATION 18-23 MAINTENANCE 24-26 ENVIRONMENTALLY SAFE BATTERY DISPOSAL TROUBLESHOOTING 28-29 ® LAWNMASTER WARRANTY EXPLODED VIEW PARTS LIST NOTES 33-34...

  • Page 3: Specifications

    SPECIFICATIONS 24V MAX* CORDLESS GRASS TRIMMER Type Cordless, Battery-powered No-load Speed 9200 RPM Line Diameter 0.065" (1.6 mm) Cutting Width 10" (250 mm) Unit Weight (With 4.0Ah Battery) 5.28 lbs (2.4 kg) BATTERY PACK Model Number 24LB4005-C Rated Voltage of Battery 24 V Max* D.C Capacity of Battery 4.0 Ah...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and / or serious personal injury. Avoid operating the tool in a dangerous environment. Do not use the tool in damp or wet locations. Do not use in the rain.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Do not handle plug or tool with wet hands. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction. Do not operate in poor lighting. Do not use tool if the switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS BATTERY CHARGER This charger is only compatible with 24LB4005-C, 24LB1304, 24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries. To reduce the risk of injury, charge only the specified lithium-ion rechargeable batteries. Other types of batteries may burst, causing personal injury or damage. Keep cord and charger away from heat to prevent damage to housing or internal parts.

  • Page 7: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency(cycles per second)
  • Page 8 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.

  • Page 9: Know Your Grass Trimmer

    KNOW YOUR GRASS TRIMMER...
  • Page 10 KNOW YOUR GRASS TRIMMER Components 1.Main Handle 8.Trimming Line 15.Lock-off Switch 2.On/Off Switch 9.Flower Guard 16.Battery Pack (X2) 3.Locking Collar 10.Trimming Line Cut-Off Blade 17.Battery Release 4.Shaft 11.Motor Housing Button 5.Pivot Button 12.Shaft Rotating Button 18.Battery Charger 6.Debris Guard 13.Auxiliary Handle 7.Trimmer Head 14.Auxiliary Handle Quick-release Knob KNOW YOUR PRODUCT...

  • Page 11: Assembly

    ASSEMBLY UNPACKING This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
  • Page 12 ASSEMBLY CONNECTING THE MAIN HANDLE AND SHAFT 1. Align the shaft with the main handle. Make sure that the protrusion on the shaft aligns with the notch inside the handle as shown in Fig. 1. 2. Assemble the shaft into the main handle and ensure it is fully engaged. 3.
  • Page 13 ASSEMBLY ATTACHING THE FLOWER GUARD NOTE: Attach the flower guard before attaching the auxiliary handle. 1. Put the flower guard over the top of the main handle. Then slide the flower guard all the way down to the motor housing area. Make sure that the plastic toe pad is facing upwards as shown (Fig. 3). Plastic Toe Pad Fig.
  • Page 14 ASSEMBLY 5. Tighten the quick-release knob clockwise to lock the auxiliary handle in place, and then fold the knob inwards using moderate force. If it feels too tight when folding in, turn it counter-clockwise to loosen. Do not use excessive force. Handle Support Fig.

  • Page 15: Battery Pack And Charger

    BATTERY PACK AND CHARGER BATTERY CHARGING ® 1. Use only with 24V LawnMaster battery chargers. The battery charger supplied is specifically designed for the lithium-ion battery used in this tool. 2. Check the power voltage! Battery chargers operate on 120V.
  • Page 16 BATTERY PACK AND CHARGER b) If the temperature range is correct and flashing red LED light continues, then remove and reinstall the battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery charges normally, dispose of the defective battery pack (see Environmental Safe Battery Disposal section).
  • Page 17 BATTERY PACK AND CHARGER WARNING If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label. 1.

  • Page 18: Operation

    OPERATION INTENDED USE This trimmer is intended for cutting weed, grass or similar soft vegetation in areas that are hard to reach, e.g. under bushes, on slopes and edges. It must not be used to work on unusual thick, dry or wet grass, e.g.
  • Page 19 OPERATION Advance Button Fig. 11 When no line end is visible: Replace the spool line (see Line Replacement instructions in the Maintenance section). SAFETY GUARD 1. The safety guard protects the operator against thrown objects during operation. 2. The safety guard is equipped with a trimming line cut-off blade that cuts excess trimming line. TRIMMER HEAD ANGLE Adjust the angle of the trimmer head according to the intended operation.
  • Page 20 OPERATION Shaft Rotating Button 180° Initial position 0° 90° Fig. 12 Fig. 13 Fig. 14 PIVOTING HEAD 1. To pivot the head, push the pivot button and adjust the shaft to any of the 7 positions (Fig. 15). 2. Adjust the angle of the trimmer head according to the intended operation. 3.
  • Page 21 OPERATION 1. Push the flower guard to its outer position for operation until it snaps into place (Fig. 16). 2. Push the flower guard to its inner position after operation and when storing (Fig. 16). Outer Position Inner Position Fig. 16 GENERAL OPERATION 1.
  • Page 22 OPERATION 4. Pay attention when operating the tool close to trees and bushes. The cutting device can damage softer bark and fence posts. 5. Work rhythmically. Stand firmly with your feet apart. Cut from right to left so clippings are thrown away from the trimmer head (Fig.
  • Page 23 OPERATION Fig. 20 NOTE: Let the cutting device do the work. Let it work at its own pace, never force it into the area to be cut. 9. Carefully maneuver the tool around objects, such as trees and bushes, ensuring it does not come into contact with them.

  • Page 24: Maintenance

    9. Pull the line extending from the eyelet so the line releases from the slot in the spool. 10. Reinstall the spool cover by depressing tabs into slot in the trimmer head and pushing down until spool cover clicks into place. NOTE: Use LawnMaster ® spool model # 221007116 for replacement.
  • Page 25 MAINTENANCE Spool Cover Tabs Spool Slot Eyelet Anchor Hole Fig. 23 Fig. 24 LINE REPLACEMENT 1. Remove the battery pack. 2. Remove the spool from the trimmer head. Remove any old line remaining on the spool. NOTE: Use only 0.065 in. (1.6 mm) diameter round monofilament line. 3.
  • Page 26 MAINTENANCE TRANSPORTATION 1. Switch the product off and remove the battery pack before transporting it anywhere. 2. Attach transportation guards, if applicable. 3. Always carry the product by its handles. 4. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.

  • Page 27: Environmentally Safe Battery Disposal

    ENVIRONMENTAL SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: lithium-ion, a toxic material. WARNING All toxic materials must be disposed of in a specific manner to prevent contamination of the environment.

  • Page 28: Troubleshooting

    TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! Problem Possible Cause...
  • Page 29 TROUBLESHOOTING Clean the battery contacts (e.g. by The battery contacts are inserting and removing the battery contaminated. several times) or replace the battery. Mains plug of battery Insert mains plug fully into the socket charger is not plugged in outlet. properly.

  • Page 30: Lawnmaster ® Warranty

    ® LAWNMASTER WARRANTY...

  • Page 31: Exploded View

    EXPLODED VIEW...

  • Page 32: Parts List

    PARTS LIST Key Number Drawing Number Description Quantity Handle Assy. Switch Button Assy. Compression Spring Safe-Locking Button Assy. Spring Auxiliary Handle Assy. Upper Aluminum Tube Assy. Locking Collar Lower Aluminum Tube Assy. Rotary Handle Assy. Motor Housing Assy. 221008109 Debris Guard Shaft Lock Button Assy.
