Operators Manual / Guide d'Utilisation
EN p. 2

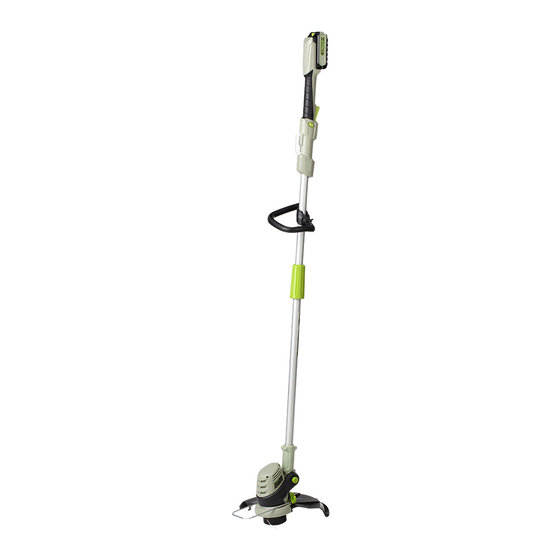

24V MAX*-12" Li-Ion Cordless Grass Trimmer CLGT2412
Coupe-gazon Sans Fil CLGT2412 De 30.48 CM (12 po) À
FR p. 28
Batterie Lithium-Ion 24V MAX*
** Maximum initial battery workload voltage
(measured without a workload) is 24 volts.
Nominal voltage is 21.6 volts
** Tension initiale maximale de la batterie de la charge de
travail (mesurée sans charge de travail) est de 24 volts
Tension nominale est de 21,6 volts
CLGT2412
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 1-384-8432
Lisez toutes les règles et consignes de sécurité avant d'utiliser cette tondeuse.
Distribuée par Cleva North America 601 Regency Park Court, Greenville, SC 29607 1-384-8432
Shoulder Strap Included
Advertisement
Table of Contents
Related Manuals for LawnMaster CLGT2412
Summary of Contents for LawnMaster CLGT2412
- Page 1 Operators Manual / Guide d'Utilisation EN p. 2 24V MAX*-12" Li-Ion Cordless Grass Trimmer CLGT2412 Coupe-gazon Sans Fil CLGT2412 De 30.48 CM (12 po) À FR p. 28 Batterie Lithium-Ion 24V MAX* Shoulder Strap Included ** Maximum initial battery workload voltage (measured without a workload) is 24 volts.
-
Page 2: Table Of Contents
CONTENTS CONTENTS PRODUCT SPECIFICATIONS GENERAL SAFETY RULES ELECTRICAL INFORMATION SYMBOLS KNOW YOUR CORDLESS GRASS TRIMMER ASSEMBLY 9-10 BATTERY CHARGER 12-13 OPERATION 13-19 MAINTENANCE 20-21 TROUBLESHOOTING ENVIRONMENTAL SAFE BATTERY DISPOSAL WARRANTY EXPLODED VIEW PARTS LIST NOTES PRODUCT SPECIFICATIONS 24V MAX** LITHIUM-ION CORDLESS GRASS TRIMMER Type Cordless, Battery-Powered Battery... -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING Read and understand all instructions before using this product. Failure to follow all • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. •... - Page 4 GENERAL SAFETY RULES • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. • Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION • If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk. • Do not point the grass trimmer in the direction of people or pets. •... -
Page 6: Symbols
SYMBOLS On the product, the rating label and within these instructions you will find among others he following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz... - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 8: Know Your Cordless Grass Trimmer
KNOW YOUR CORDLESS GRASS TRIMMER KNOW YOUR PRODUCT ( Fig. 1 ) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. -
Page 9: Assembly
ASSEMBLY WARNING: Before assembly, make sure that the grass trimmer is switched off and the battery is removed. FITTING THE AUXILIARY HANDLE ( See Figure 2.) ■ Loosen the wing nut form the auxiliary handle. ■ Align the auxiliary handle with the power head shaft. ■... - Page 10 ASSEMBLY SAFETY GUARD ■ Align the safety guard with the trimmer head . ■ Secure it by tightening the three mounting screws with a screwdriver (Fig. 4). Fig.4 SHOULDER STRAP The shoulder strap helps the operator to carry the product. ■...
-
Page 11: Battery Charger
BATTERY CHARGER BATTERY PACK AND CHARGER Attach/ Release ( See Figure 6.) ■ Align the battery pack to the slots on the charger and slide it in until it locks in place ■ Connect the charger to the power supply. ■... - Page 12 BATTERY CHARGER CHARGER LEDS • If the battery is not inserted, a continuous red LED light indicatesthat the mains plug is plugged into a mains socket and the battery charger is ready for operation. • Charging: a flashing green LED on the charger indicates that the battery is charging normally. •...
-
Page 13: Operation
OPERATION INTENDED USE This grass trimmer CLGT2412 is with rated battery voltage of 24 V . 24LSC01-ETL designates the respective charger with a charging voltage of 24 V . The product is intended for cutting weed, grass or similar soft vegetation in areas that are hard to reach, e.g. - Page 14 OPERATION SAFETY GUARD ■ The safety guard protects the operator against thrown objects during operation. ■ The safety guard is equipped with a trimmer line cutt-off blade that cuts excess trimming line (Fig.9). PIVOTING HEAD (See Figs 9-12) ■ To pivot the head, push the pivot button (A) and Fig.
- Page 15 ● Pull the line extending from the line head so the line releases from the slot in the spool. ● Reinstall the spool cover by depressing tabs into slot in the line head and pushing down until spool cover clicks into place. NOTE: Use LawnMaster spool model # RS0303 for replacement. Spool Spool Cover...
- Page 16 OPERATION ● Insert the line into the anchor hole in the upper part of the spool. Wind the line around the upper part of the spool counterclockwise, as shown by the arrows on the spool. Place line in the slot on upper spool flange, leaving about 6 in.
- Page 17 OPERATION ■ Switch the product off immediately if you ate disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down. ■ Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.
- Page 18 OPERATION ■ Keep the trimmer head at an angle of about 30° to the ground when trimming. Avoid pressing it against the ground as this can ruin the lawn and damage the product (Fig. 22). 30° Fig. 22 NOTE: Let the cutting device do the work. Let it work at its own pace, never force it into the area to be cut.
- Page 19 OPERATION AFTER USE ■ Switch the product off, remove the battery back and let it cool down. ■ Check, clean and store the product as described below. GENERAL CLEANING ■ Clean the product with a dry cloth. Use a brush for areas that are hard to reach. ■...
-
Page 20: Maintenance
MAINTENANCE REPAIR ■ This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. STORAGE ■ Clean the product as described above. ■ Store the product and its accessories in a dry, frost free place. ■... - Page 21 MAINTENANCE WARNING: In order to avoid personal injury and the risk of fire and electric shock, remove the batery pack before adjusting, inspecting, or cleaning the grass trimmer. CLEANING Remove The Battery Pack. ■ Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keepthe air vents free of obstructions, sawdust, and wood chips.
-
Page 22: Troubleshooting
TROUBLESHOOTING Suspected malfunctions, are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING: Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem Possible cause... -
Page 23: Environmental Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. WARNING: All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 24: Warranty
WARRANTY We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited two (2) years warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty will apply. -
Page 25: Exploded View
EXPLODED VIEW CLGT2412 EXPLODED VIEW... -
Page 26: Parts List
PARTS LIST CLGT2412 PARTS LIST PART NO. PART DESCRPTION GE70DC.00.16 Shoulder Strap GE95DC.10.03 Shoulder Strap Connector Point GE01BC.60.01.X1.01 Assistant Handle Assy BOA4WL.06.33 Bolt BOB1DX.06.BZ Wing Nut GE95DC.10.02.X1.01 Switch Button Assy TOTHYY.03.04 Spring for Switch Button GE95DC.10.01.X1.01 Button Assy TOTHYY.03.04 Spring For Button GE95DC.10.50.X1.01... -
Page 27: Notes
NOTES...
