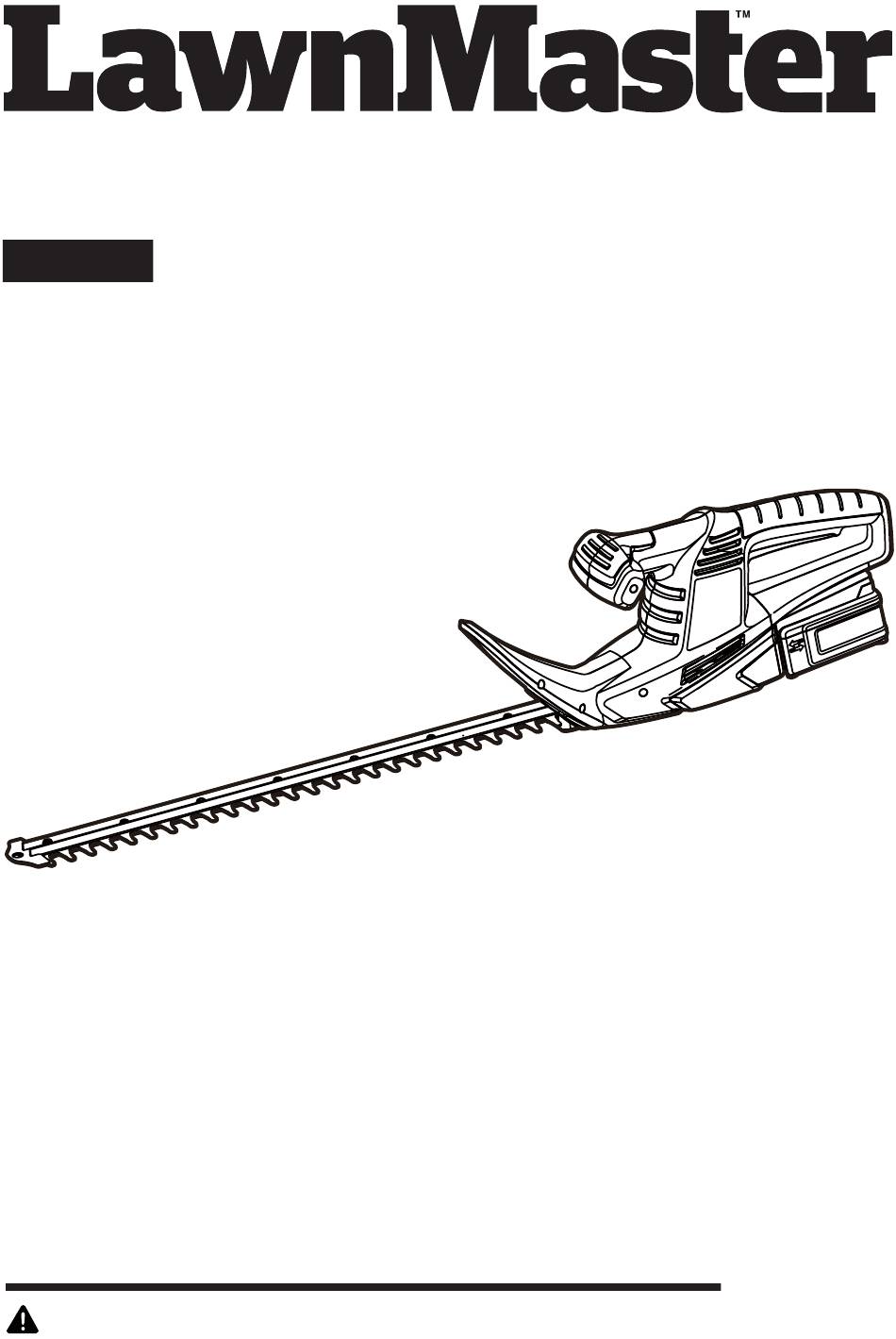

- Page 1 Operators Manual 18V Li - 22" Cordless Hedge Trimmer EN p. 2 CLHT2218B CLHT2218B_V1 Read all safety rules and instructions carefully before operating this tool. Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432...
- Page 2 CONTENTS Contents Product Specifications General Safety Rules Electrical Information Know Your Cordless Hedge Trimmer Charging Started 7-10 Operating 11-12 Warranty Exploded Diagram Parts List Notes PRODUCT SPECIFICATIONS 18V Li - 22" Cordless Hedge Trimmer Capacity 1.5 Ah Motor Voltage 18Vd.c Idling Speed 1100 min-1 (rpm) Cutting Capacity...
- Page 3 GENERAL SAFETY RULES WARNING Read and understand all instructions before using this product. Failure to follow all liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Do not allow children or untrained individuals to use this unit. Don’t expose power tools to rain or wet conditions.
- Page 4 GENERAL SAFETY RULES may create a hazard or cause product damage. risk of electric shock. therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when personal injury. they are always in operating condition. Be aware of possible hazards when not using your battery tool or when Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.
- Page 5 GENERAL SAFETY RULES If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk. Maintain tool with care. Keep fan and blade area clean for best and safest performance. Follow removing the battery pack.
- Page 6 SYMBOL S On the product, the rating label and within these instructions you will find among others he following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current...
- Page 7 KNOW YOUR CORDLESS HEDGE TRIMMER Function Product Description The cordless hedge trimmer features a laser-blade of special-grade steel. When trimming, cutting teeth move back and forth in a linear shearing motion. The protective tip at the top of the blade prevents unpleasant kickback reactions when hitting walls, fences, etc.
- Page 8 GENERAL STARTED Unpack Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 9 OPERATION Charging the Battery (See figs 4 - 5) The battery pack (10) for this product has been shipped in a low charge condition. Charge it fully before first use. WARNING! Always remove the battery pack from the product for charging! Charge in a safe location away from moisture, heat or any hazard to the charger or other danger! Align the battery pack (10) to the slots on the charger and slide it in until it locks in place (Fig.
- Page 10 OPERATION Charger Indicators The lights on the charger indicate the charger status. Symbol Spelling indicators (13) Status red, technical blinking defect red, connected to continuous power supply green, charging blinking fully green, charged continuous Battery LED Indicators (See figs. 6-7) Check the battery pack capacity pressing the button (15).
- Page 11 OPERATION Intended use This hedge trimmer CMHT2218B is with rated battery voltage of 18V. charger model no. CMHT2218B designates the respective charger with a charging voltage of 120V ~ 60Hz . The product is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity.
- Page 12 OPERATION Trimming (See figs. 9-10) before operation. shape of the hedge or shrub. optimum cutting performance. Fig. 9 Fig. 10 to hang your hedge trimmer out of the way until next use (Fig. 11). Fig. 11...
- Page 13 WARRANTY We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty will apply.
- Page 14 EXPLODED VIEW...
- Page 15 PART LIST ITEM NO. PART NO. DESCRIPTION TGDQ24.10.00 Connected Assembly GH70DC.00.02 Rear handle TODXL1.A4.UL Inner cable WODQ10.04.16 Switch BOD1YZ.15.19 GH13EP.00.04 Switch Plate TMDC50.01.11 Motor GH01EP.00.07 Switch washer GH13EP.00.07 Inner cable clamp GH80DC.00.01 Front handle TOTHYY.08.07 Spring GH85DC.10.01 Left housing assm. GH80DC.00.02 Left decorating cover TMDC50.01.20...
- Page 16 NOTES...
