HIKVISION DS-K1T680DW Quick Start Manual

DS-K1T680 Series Face Recognition Terminal
Quick Start Guide
UD21052B-C
©2023 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instruc�ons for using and managing the Product. Pictures, charts, images
and all other informa�on hereina�er are for descrip�on and explana�on only. The informa�on
contained in the Manual is subject to change, without no�ce, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website
(h�ps://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in suppor�ng
the Product.
Trademarks
and other Hikvision's trademarks and logos are the proper�es of Hikvision in various
jurisdic�ons.
Other trademarks and logos men�oned are the proper�es of their respec�ve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND
"WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS
FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO
EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE
LATER PREVAILS.
Data Protec�on
During the use of device, personal data will be collected, stored and processed. To protect data,
the development of Hikvision devices incorporates privacy by design principles. For example,
for device with facial recogni�on features, biometrics data is stored in your device with
encryp�on method; for fingerprint device, only fingerprint template will be saved, which is
impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance
with the applicable data protec�on laws and regula�ons, including without limita�on,
conduc�ng security controls to safeguard personal data, such as, implemen�ng reasonable
administra�ve and physical security controls, conduct periodic reviews and assessments of the
effec�veness of your security controls.
Scan the QR code to get the user manual for detailed informa�on.
1

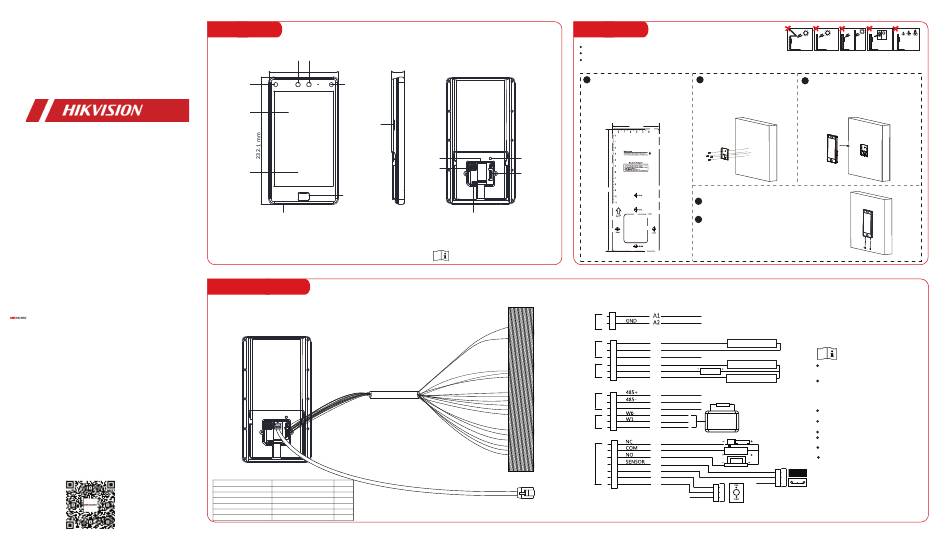

Appearance
Camera Camera
127.3 mm 23.5 mm
IR Light IR Light
Touch Screen
Loudspeaker
Card Reader
Fingerprint
Module
microUSB
3.1
Wiring (Normal)
Use only power supplies listed in the user instruc�ons:
Model Manufacture Standard
ADS-26FSG-12 12024EPG Shenzhen Honor Electronic Co.,Ltd PG
MSA-C2000IC12.0-24P-DE MOSO Technology Co.,Ltd PDE
ADS-26FSG-12 12024EPB Shenzhen Honor Electronic Co.,Ltd PB
ADS-26FSG-12 12024EPCU/EPC Shenzhen Honor Electronic Co.,Ltd PCU
ADS-26FSG-12 12024EPI-01 Shenzhen Honor Electronic Co.,Ltd PI
ADS-26FSG-12 12024EPBR Shenzhen Honor Electronic Co.,Ltd PBR
2
2
Installation Installation
Installa�on Environment:
Avoid backlight, direct sunlight, and indirect sunlight.
For be�er recogni�on, there should be light source in or near the installa�on environment.
If you have to install the device outdoors, you should install a protec�ve shield(op�onal) for
the device.
1 According to the datum line on the
mounting template, stick the mounting
template on the wall or other surfaces, 1.4
meters higher than the ground. Drill holes on
the wall or other surface according to the
Hole 1 and Hole 2 on the mounting template.
Network
Interface TAMPER
microSIM
Wiring
Card Slot
Terminal
Debugging Port
(For debugging using only)
The pictures here are for reference only.
Power Input
Alarm Input
Alarm Output
RS-485
Wiegand
Door Lock
Network Interface
2 Remove the cable hole on the
mounting plate with tools and align the
holes to the mounting plate and secure
the mounting plate on the wall with the
4 supplied screws (Pa4×25).
77.09mm
102025834
200.91mm
4 Use 2 supplied screw (KM3×6) to secure the device
and the mounting plate.
5 After installation, for the proper use of the device
(outdoor use), stick the protection film (parts of models
supplied) on the screen.
+12 V~24 VDC Red
Black
Group A
IN1 Yellow/Blue
B1
Alarm Input Device
GND Black
B2
Yellow/Orange
IN2
B3
(NC)
NC Yellow/Purple
B4
Alarm Output Device
Yellow/Brown
COM
B5
Power Supply
NO Yellow/Red
B6
Alarm Output Device
(NO)
Group B
Yellow
C1
Blue
12V Power Supply
C2
GND Black
C3
Green
C4
White Wiegand
C5
GND Black Card Reader
C6
Group C
Electric Dropbolt
White/Purple (NC)
D1
White/Yellow (COM)
D2
Power Supply
(NO)
White/Red
D3
Electric Strike
Yellow/Green
D4
GND
Black NO
D5
BTN Yellow/Grey
COM
D6
GND Yellow/Black NC
D7
NO
Group D COM
Exit Button
NC
Backlight Direct Direct Sunlight Indirect Sunlight Close to Light
Sunlight through Window through Window
3 Route the cable through the cable hole of the
mounting plate, and connect to corresponding
external devices' cables.
Align the device with the mounting plate and
hang the device on the mounting plate.
When connec�ng door contact and exit bu�on,
the device and the RS-485 card reader should
use the same common ground connec�on.
The Wiegand terminal here is a Wiegand input
terminal. You should set the device's Wiegand
direc�on to "input". If you should connect to
an access controller, you should set the
Wiegand direc�on to "Output". For details, see
the user manual.
The suggested external power supply for door
lock is 12 V, 1 A.
The suggested external power supply for
Wiegand card reader is 12 V, 1 A.
For wiring the fire system, see the user manul.
Do not wire the device to the electric supply
directly.
If the device support PoE, the network
interface supports power supply by PoE.
If the device supports power supply by PoE and
the network interface is connected, do not wire
Door Contact
the power input terminal.
