HIKVISION DS-K1T606 Quick Start Manual

Face Recognition Terminal
Quick Start Guide
UD09017B-F
©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software embodied in the
Product is governed by the user license agreement covering that Product.
About this Manual
This Manual is subject to domestic and international copyright protection.
Hangzhou Hikvision Digital Technology Co., Ltd. ("Hikvision") reserves all rights to
this manual. This manual cannot be reproduced, changed, translated, or distribut-
ed, partially or wholly, by any means, without the prior written permission of
Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and are
registered trademarks or the subject of applications for the same by Hikvision
and/or its affiliates. Other trademarks mentioned in this manual are the properties
of their respective owners. No right of license is given to use such trademarks
without express permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS
IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-IN-
FRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS,
OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG
OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR
LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT
SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY
RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION,
OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN
YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT
YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN
THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE
LAW, THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To
protect data, the development of Hikvision devices incorporates privacy by design
principles. For example, for device with facial recognition features, biometrics data
is stored in your device with encryption method; for fingerprint device, only
fingerprint template will be saved, which is impossible to reconstruct a fingerprint
image.
As data controller, you are advised to collect, store, process and transfer data in
accordance with the applicable data protection laws and regulations, including
without limitation, conducting security controls to safeguard personal data, such as,
implementing reasonable administrative and physical security controls, conduct
periodic reviews and assessments of the effectiveness of your security controls.
1

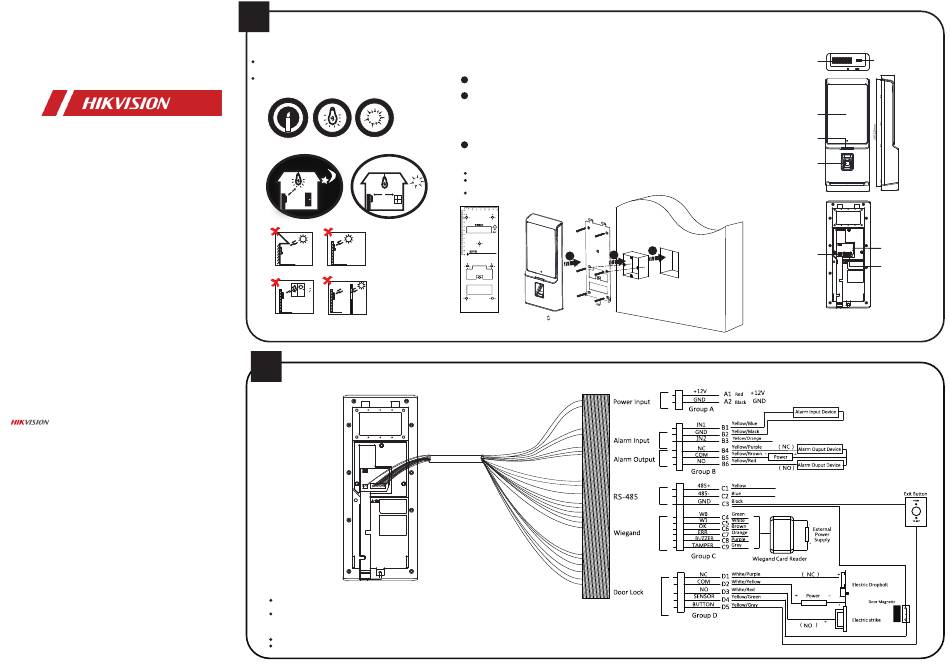

Installation
Installation Environment:
Install the device at least 2 meters away from the light, and at
least 3 meters away from the window or door.
Make sure the environment illumination is more than 100Lux.
10Lux 100~850Lux ＞1200Lux
2m
3m
Backlight Direct Sunlight
Indirect Sunlight Direct Sunlight
through Window
through Window
2
2.1
Device Wiring (Without Secure Door Control Unit)
Notes:
When connecting door contact and exit botton, the device and the RS-485 card reader
should use the common ground connection.
The Wiegand termianl here is a Wiegand input terminal. You should set the face recognition
terminal's Wiegand direction to "Input". If you should connect to an access controller, you
should set the Wiegand direction to "Output". For details, see Setting Wiegand Parameters in
Communication Settings.
The Min. power cable's diameter: 18 AWG.
The power cable's rated current is 3 A, while other cable's rated current is 1 A.
Before you start:
1. According to the baseline on the mounting template, stick the mounting template on
the wall or other surface, 1.4 meters higher than the ground.
2. Connect the supplied cable to the device terminals on the device rear panel.
Steps:
Drill holes on the wall or other surface according to the mounting template and install the
1
gang box (80 mm × 80 mm).
Use two supplied screws to secure the mounting plate on the gang box.
2
Use another four supplied screws to secure the mounting plate on the wall.
Route the cables through the cable hole of the mounting plate, and connect to the
corresponding external devices' cables.
Cover the interfaces with the supplied back sheet and secure the sheet with three screws.
Note: Apply Silicone sealant among the wiring hole to keep the raindrop from entering.
Remove the screw at the bottom of the device, and align the terminal with the mounting
3
plate and buckle them together.
Use a hex wrench to fasten the screw at the bottom.
Notes:
The installation height here is the recommended height. You can change it according to your actual needs.
You can also install the device on the wall or other places without the gang box. For details,
refer to the User Manual.
For easy installation, drill holes on mounting surface according
to the supplied mounting template.
孔1 孔1
将该贴纸贴在要安装的位置,根据图标来做打孔、布
线等操作；
产品最大尺寸为该贴纸最大轮廓边向外偏移10mm；
孔1：墙面固定孔；孔2：暗盒固定孔；孔3：出线孔。
孔2
2
3
推荐距地面1.40米，可根据身高进行调整。
孔2 孔2
孔3
孔2
孔3
孔1 孔1
Mounting Template Device Mounting Plate Gang Box

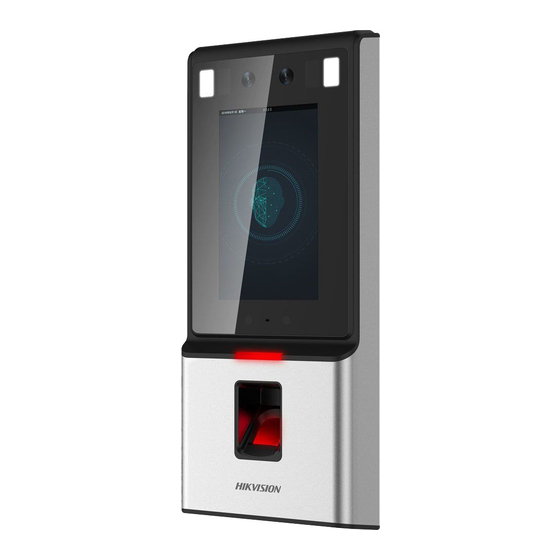

Dimensions:
Loudspeaker
Display Screen
Indicator
Fingerprint Module
and
Card Swiping Area
1
Power Interface
Note: The figures are for reference only.
Wall
USB Interface
35mm
45mm
113mm
Network Interface
Wiring Terminals
