Ultrasonic sensor
Technical Data
Output
Beam width
General information
Supplementary information

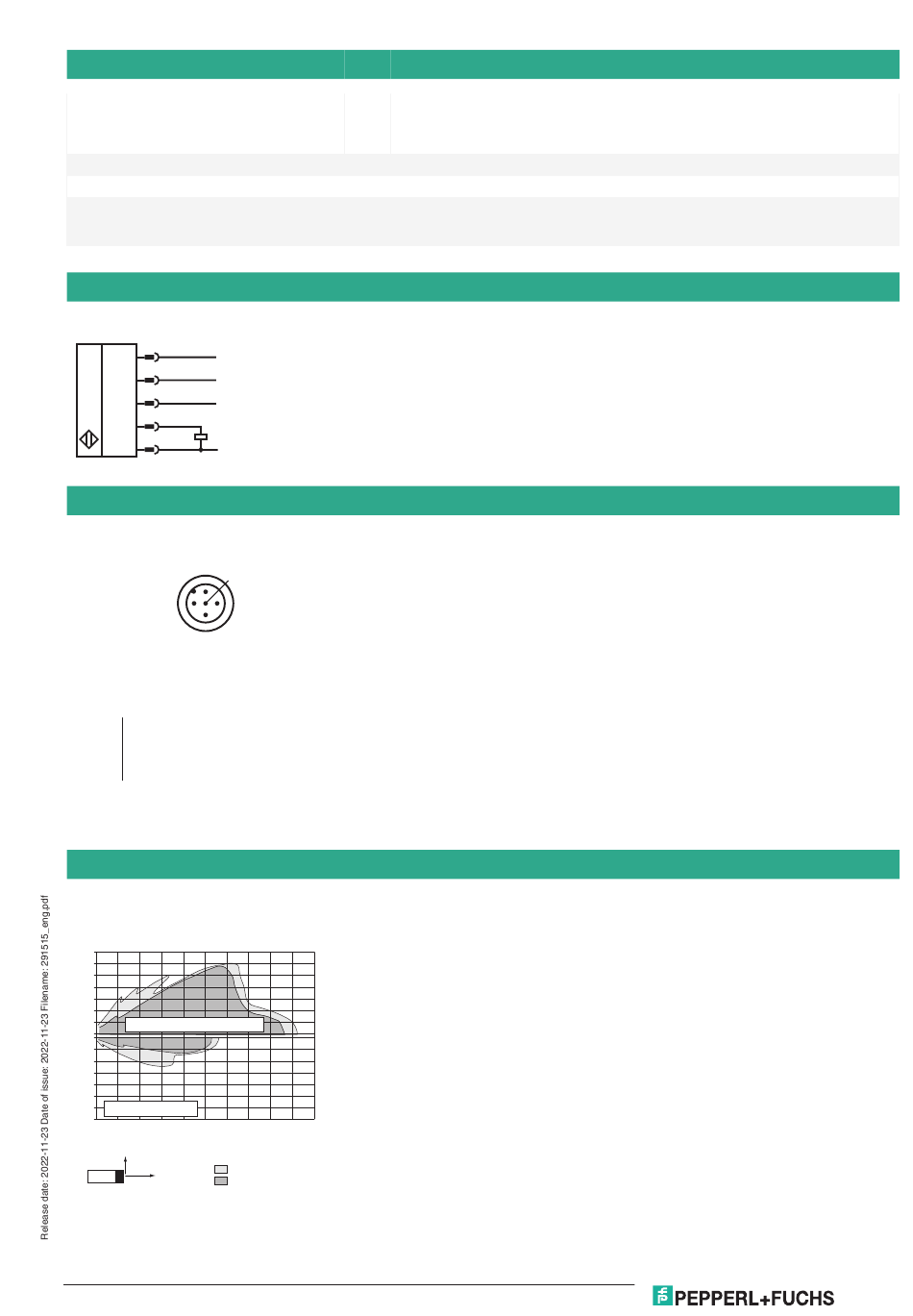

Connection
1
L+
2
Program input
5
Synchronization
4
Switch output
3
L-

Connection Assignment

1
5
2
3
Wire colors in accordance with EN 60947-5-2
1 BN (brown)
2 WH (white)
3 BU (blue)
4 BK (black)
5 GY (gray)

Characteristic Curve

Characteristic response curve
Distance Y [mm]
700
600
500
400
300
200
100
flat surface 100 mm x 100 mm
0
-100
-200
-300
-400
-500
-600
round bar, Ø 25 mm
-700
0 400 800 1200 1600 2000 2400 2800 3200
Y
wide sound lobe
X
narrow sound lobe
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
near switch point: 80 mm
far switch point: 2000 mm
output function: Window mode
output behavior: NO contact
wide
Switch settings of the external programming adapter:
"output load": pull-down
"output logic": inv
4
3200 3600 4000
Distance X [mm]
