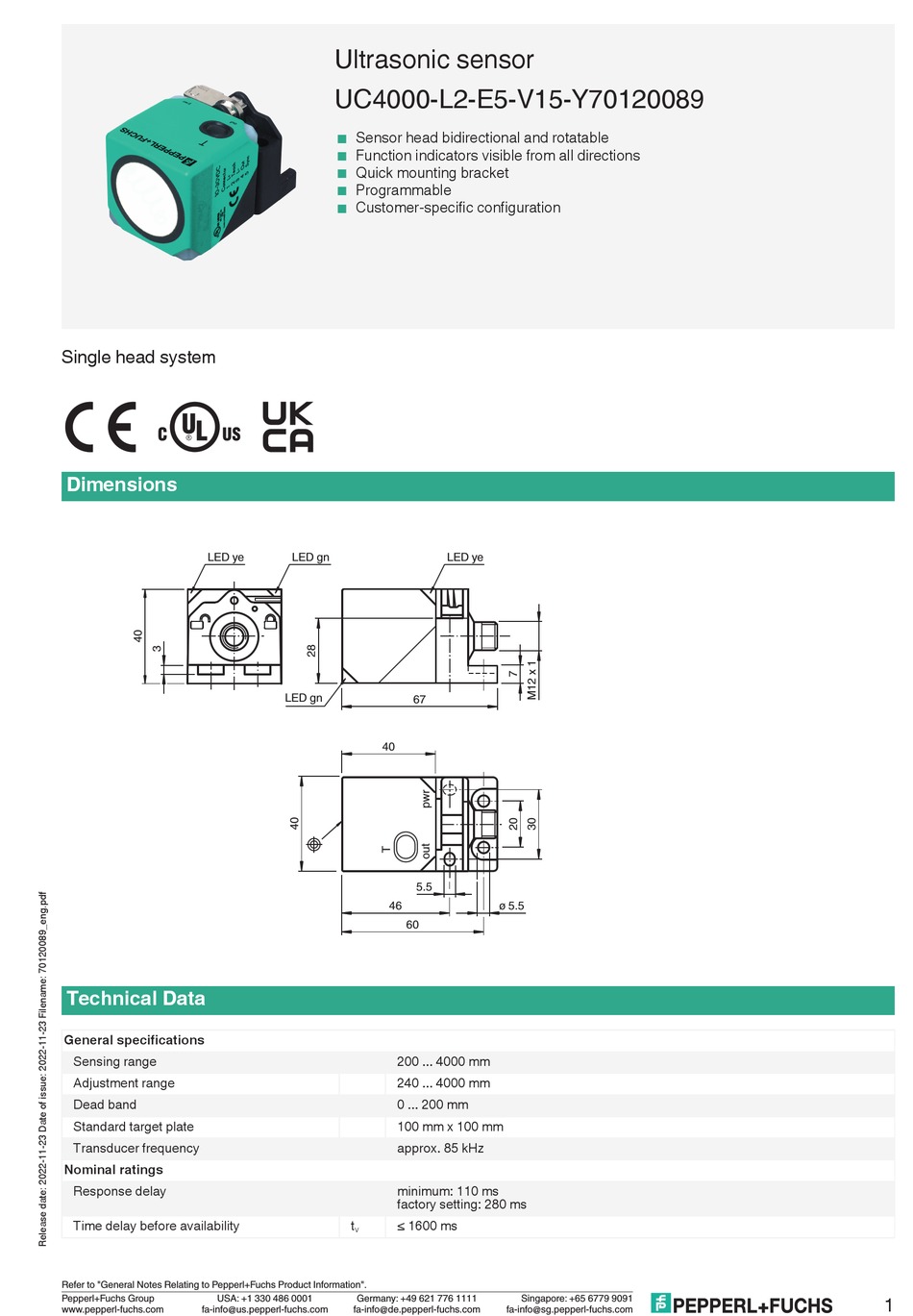

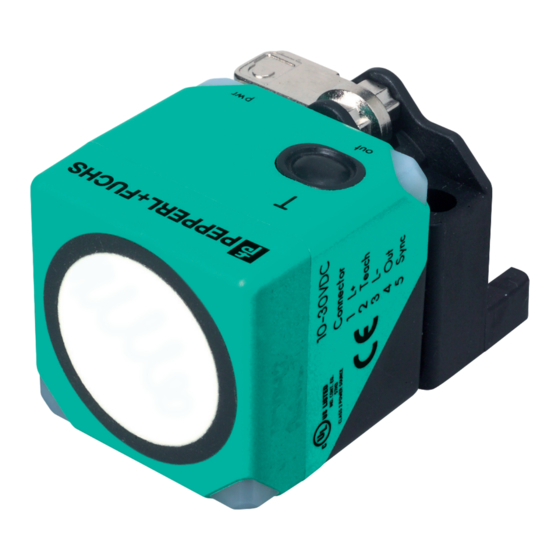

UC4000-L2-E5-V15-Y70120089
<
Sensor head bidirectional and rotatable
<
Function indicators visible from all directions
<
Quick mounting bracket
<
Programmable
<
Customer-specific configuration
LED gn
LED ye
LED gn
67
40
5.5
46
60
200 ... 4000 mm
240 ... 4000 mm
0 ... 200 mm
100 mm x 100 mm
approx. 85 kHz
minimum: 110 ms
factory setting: 280 ms
t
≤ 1600 ms
v
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
ø 5.5
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
Advertisement
Table of Contents
Related Manuals for Pepperl+Fuchs UC4000-L2-E5-V15-Y70120089
Summary of Contents for Pepperl+Fuchs UC4000-L2-E5-V15-Y70120089
- Page 1 Response delay minimum: 110 ms factory setting: 280 ms Time delay before availability ≤ 1600 ms Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
- Page 2 PA-GF35 Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam Mass 120 g Factory settings Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com...
- Page 3 3000 4000 5000 6000 Distance X [mm] wide sound lobe narrow sound lobe Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com...
- Page 4 Female cordset single-ended M12 straight A-coded, 5-pin, PVC cable grey UB-PROG2 Programming unit Microsoft .NET Connection Software Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
- Page 5 3. Press the Programming Button for 2 s to save and enter the programming routine for output behavior Programming the output behavior 1. The yellow LED flashes. The number of flashes indicates the current output behavior: Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001...
- Page 6 See software description. 4. A separate synchronization pulse can be sent to each individual sensor. In this mode the sensors operate in external multiplex mode. (See Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001...
- Page 7 n * high-level/input impedance (n = number of sensors to be synchronized) driver current against 0V n * output current (n = number of sensors to be synchronized). Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group...
