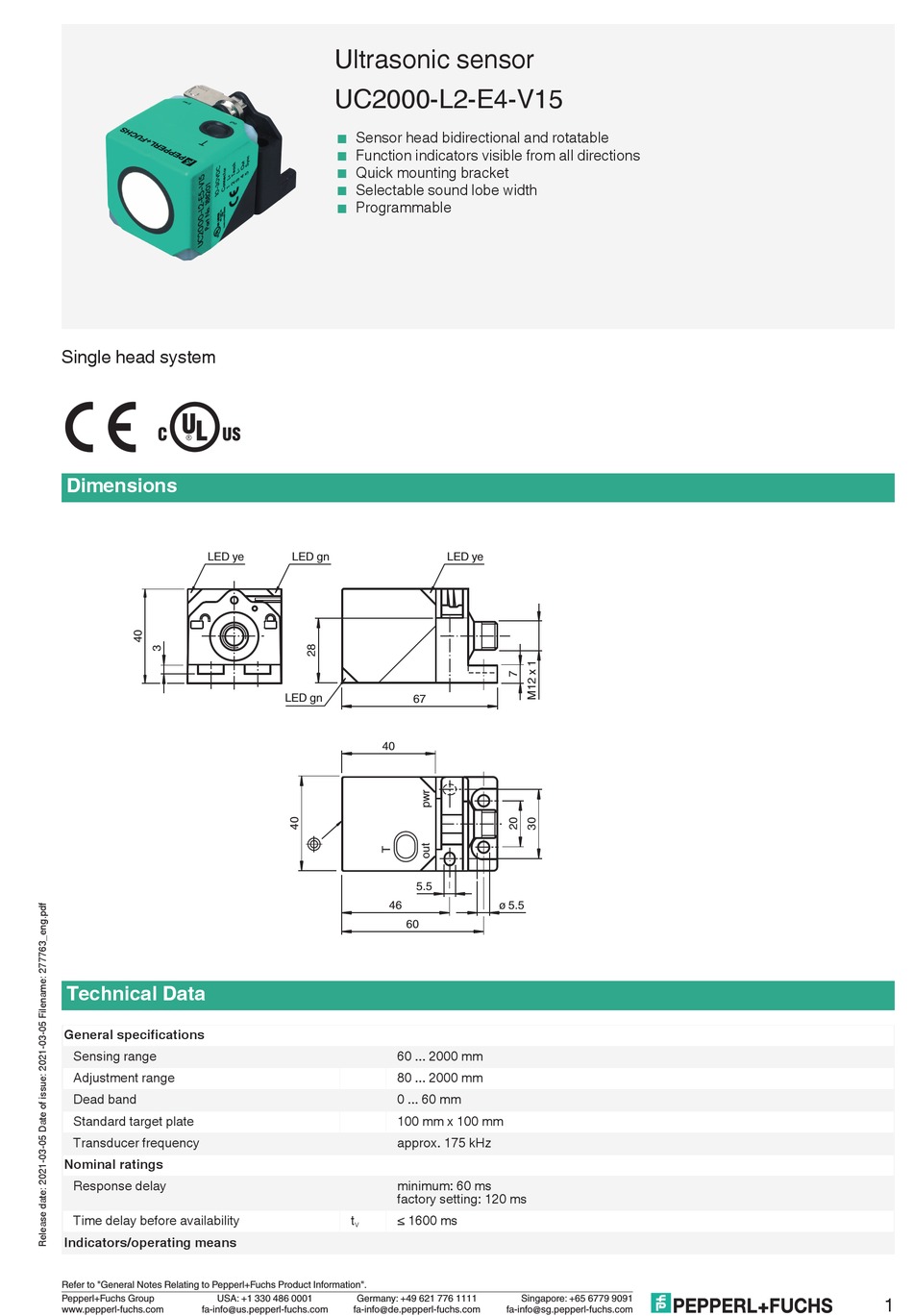

Pepperl+Fuchs UC2000-L2-E4-V15 Manual

Single head system
Dimensions
LED ye
Technical Data
General specifications
Sensing range
Adjustment range
Dead band
Standard target plate
Transducer frequency
Nominal ratings
Response delay
Time delay before availability
Indicators/operating means
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com

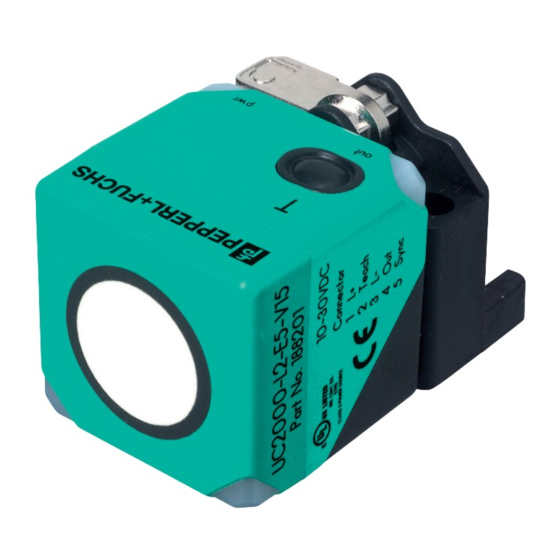

Ultrasonic sensor
UC2000-L2-E4-V15
< Sensor head bidirectional and rotatable
< Function indicators visible from all directions
<
Quick mounting bracket
<
Selectable sound lobe width
<
Programmable
LED gn LED ye
LED gn
67
40
5.5
46
60
60 ... 2000 mm
80 ... 2000 mm
0 ... 60 mm
100 mm x 100 mm
approx. 175 kHz
minimum: 60 ms
factory setting: 120 ms
t ≤ 1600 ms
v
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
ø 5.5
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
