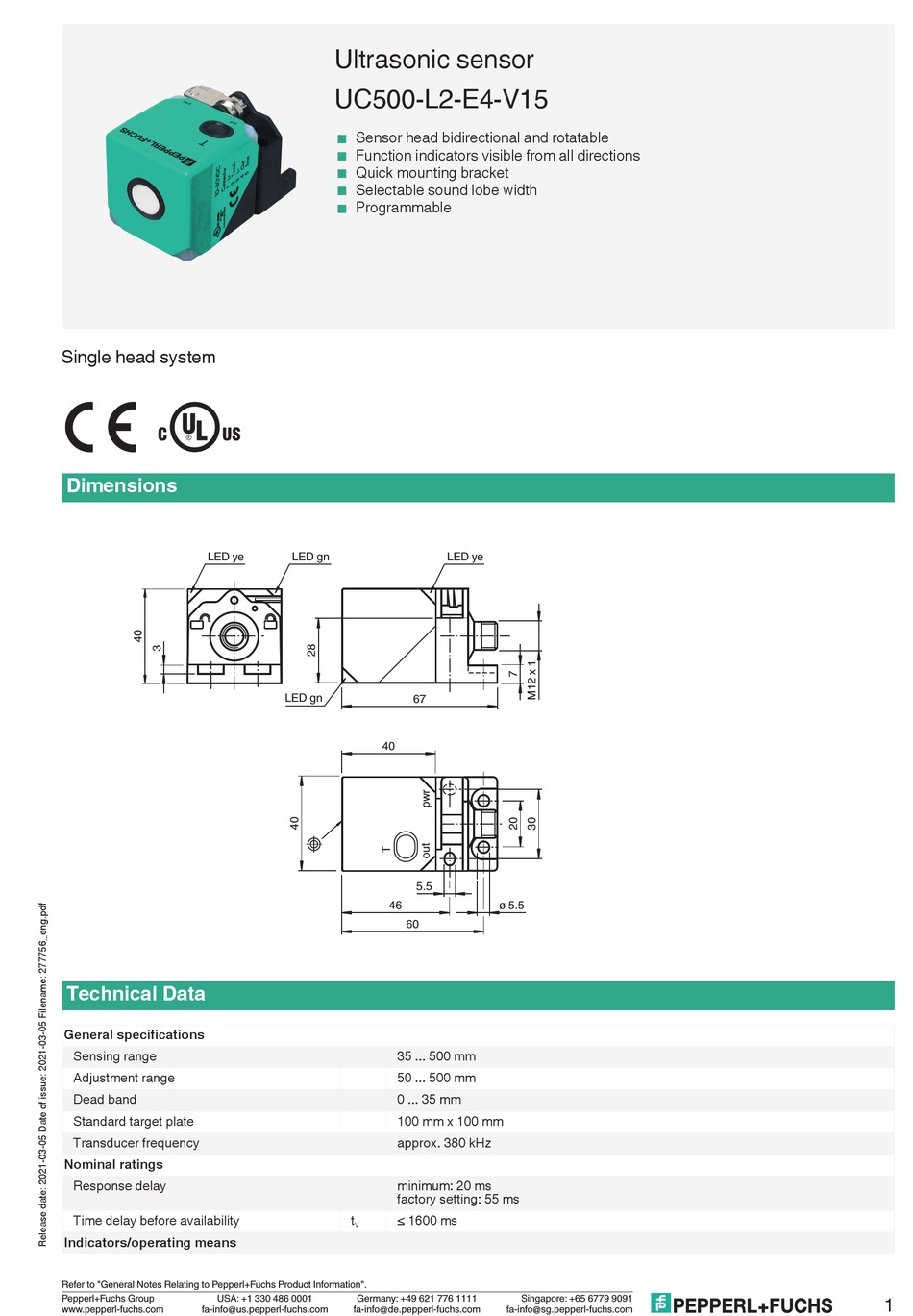

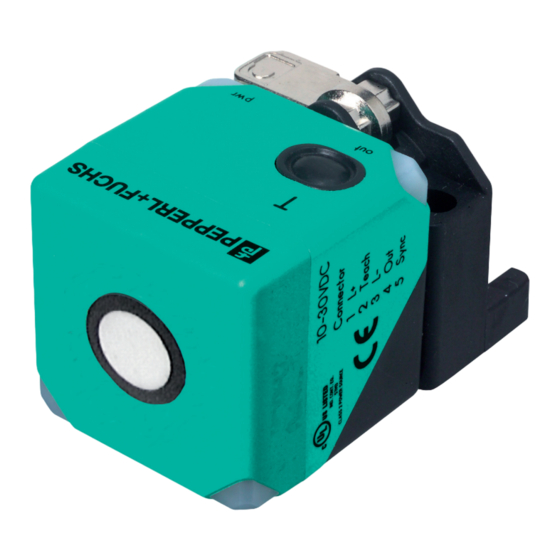

Ultrasonic sensor
UC500-L2-E4-V15
<
Sensor head bidirectional and rotatable
<
Function indicators visible from all directions
<
Quick mounting bracket
<
Selectable sound lobe width
<
Programmable
LED gn
LED ye
LED gn
67
40
5.5
46
60
35 ... 500 mm
50 ... 500 mm
0 ... 35 mm
100 mm x 100 mm
approx. 380 kHz
minimum: 20 ms
factory setting: 55 ms
t
≤ 1600 ms
v
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
ø 5.5
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pepperl+Fuchs UC500-L2-E4-V15
Summary of Contents for Pepperl+Fuchs UC500-L2-E4-V15
- Page 1 20 ms factory setting: 55 ms Time delay before availability ≤ 1600 ms Indicators/operating means Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
-
Page 2: Ultrasonic Sensor
PA-GF35 Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam Mass 115 g Factory settings Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com... -
Page 3: Connection Assignment
Connection Assignment Wire colors in accordance with EN 60947-5-2 (brown) (white) (blue) (black) (gray) Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com... -
Page 4: Characteristic Curve
Female cordset single-ended M12 straight A-coded, 5-pin, PVC cable grey UB-PROG2 Programming unit Microsoft .NET Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com... -
Page 5: Programming Procedure
3. Press the Programming Button for 2 s to save and enter the programming routine for output behavior Programming the output behavior 1. The yellow LED flashes. The number of flashes indicates the current output behavior: Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001... -
Page 6: Factory Setting
See software description. 4. A separate synchronization pulse can be sent to each individual sensor. In this mode the sensors operate in external multiplex mode. (See Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001... - Page 7 n * high-level/input impedance (n = number of sensors to be synchronized) driver current against 0V n * output current (n = number of sensors to be synchronized). Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group...
