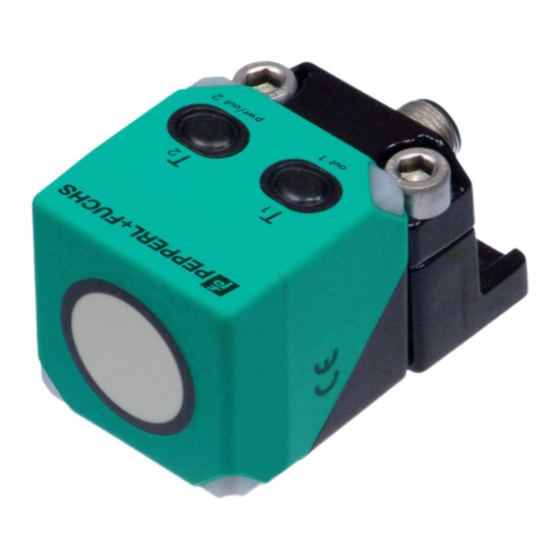

Pepperl+Fuchs UC2000-L2-E6-V15-Y277310 Manual

Ultrasonic sensor
Model Number
UC2000-L2-E6-V15-Y277310
Single head system
Features
• Sensor head bidirectional and ro-
tatable
• Function indicators visible from all
directions
• Selectable sound lobe width
• Programmable
• Rugged metal base
Diagrams
Characteristic response curve
Distance Y [mm]
700
600
500
400
300
200
100
flat surface 100 mm x 100 mm
0
-100
-200
-300
-400
-500
-600
round bar, Ø 25 mm
-700
0 400 800 1200 1600 2000 2400 2800 3200
Y
wide sound lobe
X
narrow sound lobe
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Technical data
General specifications
Sensing range
Adjustment range
Dead band
Standard target plate
Transducer frequency
Response delay
Indicators/operating means
LED green
LED yellow 1
LED yellow 2
LED red
Electrical specifications
Operating voltage U
No-load supply current I
Interface
Interface type
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Output rated operating current
Pulse length
Pulse interval
Synchronization frequency
Common mode operation
Multiplex operation
Output
Output type
Rated operating current I
Voltage drop U
Repeat accuracy
Switching frequency f
Range hysteresis H
Temperature influence
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
Degree of protection
Material
Housing
Transducer
Mass
Factory settings
Output 1
Output 2
Beam width
General information
Supplementary information
3200 3600 4000
Distance X [mm]
Compliance with standards and
directives
Standard conformity
Standards
Approvals and certificates
UL approval
CSA approval
CCC approval
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
60 ... 2000 mm
80 ... 2000 mm
0 ... 60 mm
100 mm x 100 mm
approx. 175 kHz
≤ 100 ms
Operating display
switching state switch output 1
switching state switch output 2
error
10 ... 30 V DC , ripple 10 %
B
≤ 50 mA
0
Serial interface (programming adapter required)
9600 BPS, no parity, 8 data bits, 1 stop bit
1 synchronization connection, bidirectional
0 ... 1 V
4 V ... U
> 12 kΩ
< 12 mA
0.5 ... 300 ms (level 1)
≥ 33 ms (level 0)
≤ 30 Hz
≤ 33 Hz / n , n = number of sensors , n ≤ 10
(factory setting: n = 5 )
2 switch outputs PNP, NO/NC, programmable
200 mA , short-circuit/overload protected
e
≤ 2 V
d
≤ 0.1 % of full-scale value
≤ 5 Hz
programmable , preset to 1 mm
< 1.5 % of full-scale value
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
Connector M12 x 1 , 5-pin
IP67
PA-GF35
epoxy resin/hollow glass sphere mixture; polyurethane foam
115 g
Switch point A1: 600 mm
output function: Switch point operation mode
output behavior: NO contact
Switch point A2: 850 mm
output function: Switch point operation mode
output behavior: NO contact
wide
Switch settings of the external programming adapter:
"output load": pull-down
"output logic": inv
EN 60947-5-2:2007 + A1:2012
IEC 60947-5-2:2007 + A1:2012
cULus Listed, General Purpose
cCSAus Listed, General Purpose
CCC approval / marking not required for products rated
≤36 V
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
UC2000-L2-E6-V15-Y277310
SS
B
1
