Ultrasonic sensor

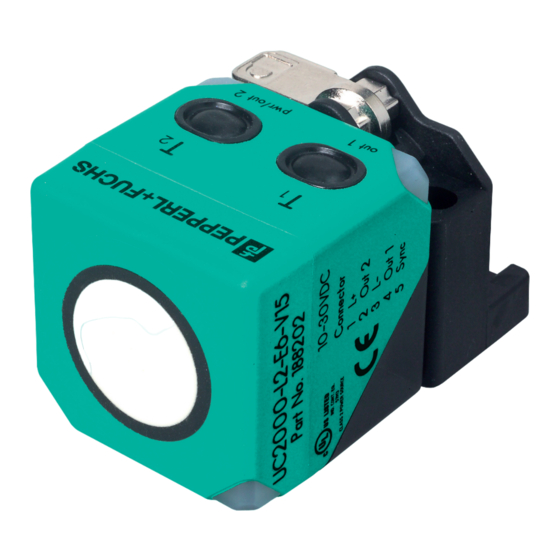

UC2000-L2-E7-V15
<
Sensor head bidirectional and rotatable
<
Function indicators visible from all directions
<
Quick mounting bracket
<
Selectable sound lobe width
<
Programmable
LED gn
LED ye
LED gn
67
40
5.5
46
60
60 ... 2000 mm
80 ... 2000 mm
0 ... 60 mm
100 mm x 100 mm
approx. 175 kHz
minimum: 60 ms
factory setting: 120 ms
t
≤ 1600 ms
v
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
ø 5.5
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pepperl+Fuchs UC2000-L2-E7-V15
Summary of Contents for Pepperl+Fuchs UC2000-L2-E7-V15

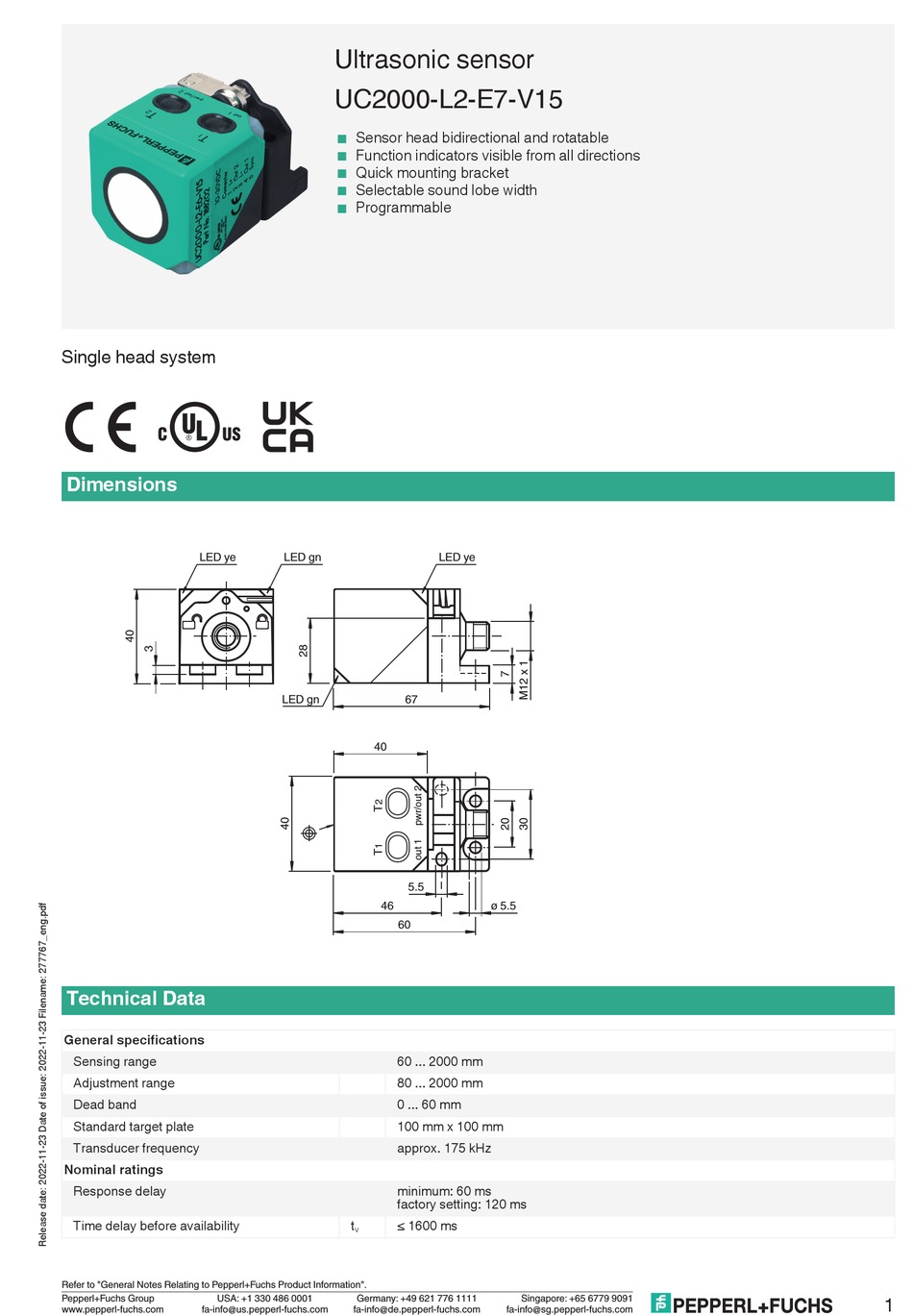

- Page 1 Response delay minimum: 60 ms factory setting: 120 ms Time delay before availability ≤ 1600 ms Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
-
