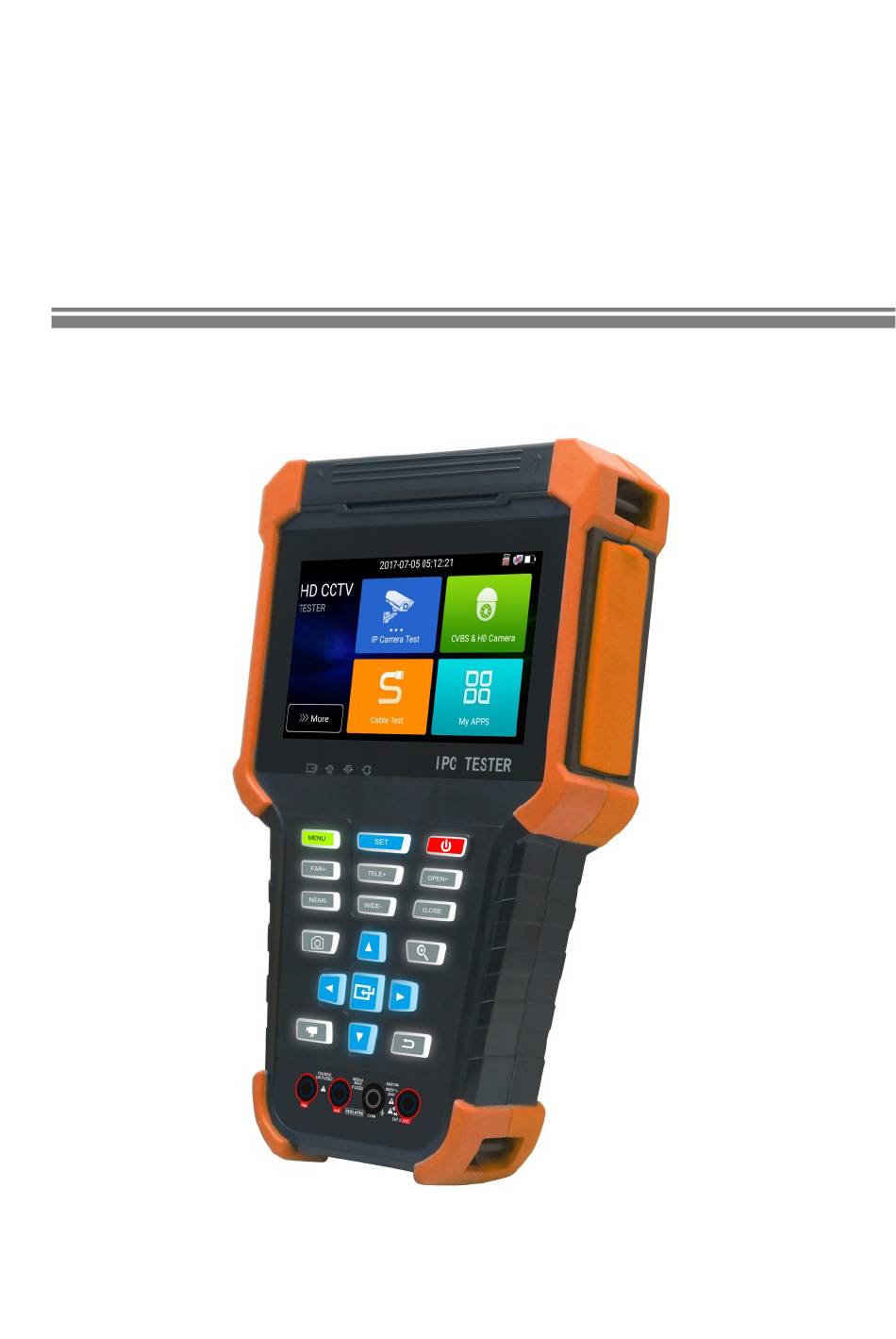

Page 1 IP camera tester User Manual （V01.00）...
Page 2 Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period.
Page 3: Table Of Contents
Content 1 .Safety information ..........................1 2. IP Camera Tester Introduction ......................2 2.1 General ............................2 2.2 Packing list ..........................2 2.3 Function interface ........................3 3. Operation ............................. 8 3.1 Installing the Battery ........................8 3.2 Instrument connection ........................ 9 3.2.1 IP camera connection ......................
Page 4 3.3.14 CVI camera test ( *Optional ) ................... 50 3.3.15 TVI camera test ( *Optional ) ................... 55 3.3.16 AHD camera test ( *Optional ) ................. 57 3.3.17 Network tool ....................... 59 （1）IP address scan ......................59 （2）PING Test ........................59 （3）Network test (Ethernet bandwidth test) ................
Page 5 3.3.36 Update ......................... 95 3.3.37 Office .......................... 96 3.3.38 LED Flashlight ......................96 3.3.39 Browser ........................97 3.3.40 Notepad: ........................97 3.3.41 System Setting......................98 3.3.42 File explorer ......................102 3.3.43 Theme ........................103 3. 4 Audio test ..........................106 3.5 PoE power output ........................
Page 6: Safety Information
1 .Safety information ◆ The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆...
Page 7: Ip Camera Tester Introduction
capacitance, diode, continuity, otherwise it will damage the meter. ◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully. ◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits. Visual laser sources When you turn on visual laser sources, please don’t stare at it, or will damage to eyes When not using it, please turn it off and cover the protective cap .
Page 8: Function Interface
1). Tester 2). Adaptor DC12V 2A 3) Network cable tester 4) Polymer lithium ion battery (7.4V DC 4000mAh) 5). BNC cable 6). RS485 cable 7). SC,ST connector（Only for optical power meter） 8). Multi-meter test leads one pair of red and black (only for the Multi-meter models) 9).
Page 9 Press more than 2 seconds, turn on or off the device, short press to turn on or off Page.4.
Page 10 the menu display Set key Menu key, press it to call shortcut- menu Near focus: Focus the image nearby Far focus: Focus the image faraway TELE: zoom in the image WIDE: zoom out the image Open/set, Confirm the setting of parameters, open or enlarge the aperture Return/Close: Return or cancel while setting parameters of the menu, close or decrease the aperture Upward, set function or add parameter.
Page 11 The RS485 data transmission indicator: it lights red while the data is being transmitted The data accepted indicator: it lights red while the data is being received The power indicator: it lights green while the tester is powered on by the adapter Top interface Left interface Right interface...
Page 12 RS485 Interface: RS485communication for the PTZ Optical power meter interface. Visible red laser source emits Interface (Optional) Video image signal input（BNC interface）/ AHD,CVI and TVI input (BNC interface) (Optional) Video image signal output（BNC interface）/ Cable tracer interface (Optional) SDI input (BNC interface) / TDR cable test interface (Optional) DC12V2A power output, for provisional DC power supply LED lamp UTP cable port: UTP cable tester port / Cable tracer port...
Page 13: Operation
PSE power sourcing equipment. Tests PoE voltage PoE power supply output or LAN test port (Use to test PoE or non-PoE IP camera) 3. Operation 3.1 Installing the Battery The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.
Page 14: Instrument Connection
3.2 Instrument connection 3.2.1 IP camera connection Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester’s LAN port, if the link indicator of the tester’s LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are communicating.
Page 15: Analog Camera Connection
IN” port, otherwise will damage the tester. 3.2.2 Analog camera connection (1) Connect the camera's video output to the IP tester’s VIDEO IN. The image will display on the tester after pushing the PTZ icon (2) CCTV IP Tester “VIDEO OUT” interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface (Note positive and negative connection of the cable).
Page 16: Hdmi In ( *Optional )
(1) Connect the SDI camera's video output to the IP tester’s “SDI IN” interface, the image will display on the tester. The tester only come with SDI input interface. There is no SDI output interface. (2) Connect the SDI camera or the speed dome RS485 controller cable to the tester RS485 interface. 3.2.4 HDMI IN ( *Optional ) DVR or other device’s HDMI in port connect to tester’s HDMI in port, the meter will display input Page.11.
Page 17: Osd Menu
image 3.3 OSD menu ◼ Press the key 2 seconds to turn on ◼ Press the key 2 seconds to turn off ◼ Short press the key to enter sleep mode, press it again to test if tester work abnormally and cannot be turned off , Press the key several seconds to turn off, the tester reset Lite mode &...
Page 18 Normal mode ◼ Tap the screen and slide left or right to change menu. Click SD card, install or remove SD card. Page.13.
Page 19: Drop-Down Menu
3.3.2 Drop-down Menu Press and slide at right top right corner twice to open shortcut menu. The shortcut menu includes POE power output, IP settings, HDMI IN, CVBS, TV OUT, LAN, settings etc. HDMI: Click HDMI IN to enter, in HDMI IN mode, it can converter test from analog to digital with dual test window IP &...
Page 20: Short Cut-Menu
LAN: Display network port or WIFI connection real-time upload and download speeds and other network parameters. Settings: Enter settings interface. IP: Enter IP Settings interface. POE power output: Turn on or off the tester “PoE power “app. 3.3.3 Short cut-menu You can call shortcut –menu by press tester’s “menu”...
Page 21: Screen Capture
Short cut-menu setting, you can long press any app in the all applications list, it will auto move to shortcut menu. If delete any app in the short cut – menu, please select a app and press several seconds, it will be deleted. 3.3.4 Screen capture Long press the key “enter”, can capture screen interface and save it in any time.
Page 22 PC screen projection： Install VLC player in the PC, turn on the VLC player "Media - Open Network Streaming", and input the RTSP address of on the top instrument two-dimensional code, click "play" to view the screen real-time projection. Page.17.
Page 23: Rapid Video
video 3.3.6 Rapid Press enter function, One key to detect all network cameras and auto play the images. Auto log in and display camera image. Detailed operation refer to ONVIF function Page.18.
Page 24: Ip Discovery
After exit ONVIF app, Click Refresh to search ip address. 3.3.7IP discovery Press IP discovery , tester auto-scan the whole network segment IP, as well as auto-modify the tester’s IP to the same network segment with the scanned camera's IP. Page.19.
Page 25: Rapid Onvif Test
Local IP： Tester’s IP address, Tester can auto-modify the tester’s IP to the same network segment with the scanned camera's IP Discovery IP： Connected tester equipment’s IP address. If the camera connected to the tester directly, tester will display the camera’s IP address, if tester connects to Local Area Network, it displays the current IP address.
Page 26 segments. It lists cameras name and IP address on the Left of screen. Tester can auto login camera and display camera image. Factory default use admin password to auto login, if you modified the password, then default use the modified password to login If you select ONVIF Rapid mode, the meter automatically scan different network segments for ONVIF cameras.
Page 27 Enter a new password for the camera When comes out “activate success” prompt, click login to display camera image. Pop-up settings menu when click the “ONVIF setting ” icon in the upper left corner Page.22.
Page 28 Across network segments scan: After open this function, Rapid ONVIF function can across network segments to scan camera’s IP. Auto Login: After open this function, tester can auto login camera and display camera image (The login password is the same with last time, the first time using password is the default password "admin") Video transmission protocol: UTP and TCP protocol Open password cracker: Cracks password of cameras...
Page 29 ONVIF PTZ control: Tap the image in the direction you want the PTZ camera to move. Tap the left side of the image to move left, right to go right, up to go up and down to go down. Compatible IP PTZ cameras will rotate accordingly.
Page 30 Image setting: Click “Imaging Set” to adjust image brightness, saturation, contrast, sharpness and backlight compensation mode. Profiles: Click “profiles", can view video streaming current configuration files, as well as switch between Major stream and minor stream . Page.25.
Page 31 Preview pictures: Quickly preview and zoom in or out pictures, automatically and manual refresh Identification: click “Identification” to view information of the camera Page.26.
Page 32 Time set: click “Time set”, Select " Manual set" to set up the time of camera Maintenance: For camera software reset or restore to factory settings. User Set: Modify camera user name, password etc parameters Page.27.
Page 33 Network setting：Click “Network Set” to change the IP address. Some cameras cannot support change IP address, so there is no change after saving. Zoom in image : press the key to enter the zoom mode. Press it again to exit zoom mode.When the image is enlarged tap left, right, up or down on the image to move the whole image on the screen When the image is enlarged, if not operate on touch screen, it can operate by the keyboard, press the...
Page 34 Image can only be enlarged on SD mode (The icon “ONVIF” is SD mode.) Select relative function on the bottom Toolbar to operate, “Snapshot” , “Record”, “Photos ”, “Video playback”, “Storage set”, “PTZ control” etc. Snapshot：Click bottom “snapshot” to screenshot the image and store it to SD card. if select manual storage, appears dialog box “Input Name”, user-defined the files name(by Chinese character, English letter ,or digit ) to save in SD card, if select “Auto- storage”，...
Page 35 Playback：Click the “Playback” icon to view saved videos. Double click the video you want to play. Click to return to the last menu To rename or delete a photo, click and hold on the file until this screen appears: Video files can play in the Video player on the main menu. Set preset position: Move the camera to preset position, enter the preset number on the Bottom right corner to complete position preset.
Page 36 Call the preset position: Select the preset number on the left, click "Call" to call preset PTZ Speed set: Horizontal and Vertical Speed set RTSP: Get RTSP address of the current camera Doc: Auto generate test reports document of camera, click "Create document”. Click Preview to view the report document Page.31.
Page 37 Enter the camera test information, click "Create Document" to complete the report. Click doc menu again, you can preview the report document. Icons description: the description of function icons on the bottom toolbar Page.32.
Page 38: Ip Camera Test
3.3.9 IP camera test Display image from the 4K H.265 camera by mainstream Click icon to enter IP camera test Note: Currently, the IPC Test App only supports some brands’ specific IP cameras,these include specific models made by ACTI, AXIS, Dahua, Hikvision, Samsung, and many more. If the camera is not fully integrated, please use the ONVIF or RTSP apps.
Page 39 Stream code: When test camera via RTSP, you can select mainstream or sub stream to test (if camera’s RTSP have not been start or without, it will tip “auto match fail, please witch to manually selecting” IP Camera's IP: Enter the IP camera’s IP address manually or click “Search” to auto-scan for the IP camera’s IP address.
Page 40: Hdmi In ( *Optional )
need to be changed. After all settings are completed, click “Enter” to view the live video If IP address setting has error or IP camera is not connected.. The tester prompts “Network Error” Click to quit from image display and return to IP camera test interface. Once you are viewing video on the IPC Test app, you will see the “Video Menu”...
Page 41 (1) Snapshot Click the icon “Snapshot”, when the video in, to take a picture and save the current video frame in the SD card as JPEG file. If the unit is set to the manual mode an “Input Name” pop up box will appear and you can enter a title for the snapshot.
Page 42 files name(by Chinese character, English letter ,or digit) to store in SD card , tester will hereby store the files in SD card after recording . if select “Auto-storage” ,tester will auto store the files in SD card after recording . (3)Photo Click the icon “photo”...
Page 43 Click to close and return to PTZ controller. (4) Recorded video playback Click the “Playback” icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears: Page.38.
Page 44: Video Monitor Test
Video files also can play in the main menu “Video Player". 3.3.11 Video monitor test Analog camera test and PTZ control, click icon to enter Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including “Photos”, “Snapshot”...
Page 45 Click the screen twice quickly, can be full zoom in on the touch screen. (1) PTZ controller parameter setting Select and click icon “PTZ”, to enter PTZ setting: A. Protocol Use the up and down arrow keys to move the yellow cursor to the “protocol ”, set corresponding Protocol and support more than thirty PTZ protocols.
Page 46 Click and select “Set PS”, set and save preset position number (1~128), click “sure” to save, Call some special preset number, can call the dome camera menu Check and set the protocols, address, interface and baud, all must be consistent with the dome camera, then the IPC tester can test .After setting the parameter, the tester can control the PTZ and lens.
Page 47 (3) 4 x zoom image display and Video out When image input, press to enter “zoom”, press it again to quit. Using the touch screen to control PTZ camera movement: Tap left, right, upward or downward on the video image to move the PTZ camera in a desired direction. Stretch two fingers outward or inward on the touch screen to zoom the image in or out.
Page 48 Click the icon “Snapshot”, when the video in, to take a picture and save the current video frame in the SD card as JPEG file. If the unit is set to the manual mode an “Input Name” pop up box will appear and you can enter a title for the snapshot.
Page 49 (6)Photo Click the icon “photo” to enter, click the selected thumbnail photo to display it on the screen. Double-tap the image you want to view to make it full screen. Double-click again the photo to return. To rename or delete an image, click and hold on the file until this screen below appears. (7) Recorded video playback Click the “Playback”...
Page 50 To rename or delete a video, click and hold on the file until this screen appears: Video files also can play in the main menu “Video Player". (8) Video level meter Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and processing technology, can perform both NTSC and PAL video amplitude signal measurements for PEAK to PEAK, SYNC levels and COLOR BURST chroma level.
Page 51 While in PAL format, the unit will be mV, While in NTSC format, it will be IRE. Video signal level 140±15IRE NTSC Chroma level( COLOR BURST) 40±5IRE SYNC signal level 40±5IRE Video signal level 1000±200mV Chroma level( COLOR BURST) 300±35mV SYNC signal level 300±35mV Video signal PEAK to PEAK level:...
Page 52: Color-Bar Generator (Tv Out)
cable. If the level is too high, it will distort the image. SYNC level: Tests the amplitude of the video sync pulse to verify if the video level is correct. For NTSC format, the SYNC level is 40 ± 5IRE For PAL format, the SYNC level is 300 ±...
Page 53: Sdi Camera Test ( *Optional )
Click the selected color-bars, testing image or single bar ( red, green, blue, white or black). Double click to full display on the screen and output, click to return main menu. BNC loop test: Tester can send and receive color bar generator through the tester’s “video out and video in”...
Page 54 When tester receives SDI camera image, it will display the image data. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25Hz 1280x720P 30Hz 1280x720P 50Hz 1280x720P 60Hz 1920x1080P 25Hz 1920x1080P 30Hz 1920x1080I 50Hz 1920x1080I 60Hz IPC tester’s HDMI output port can be use as SDI to HDMI converter, output HD SDI image to HD TV...
Page 55: Cvi Camera Test ( *Optional )
3.3.14 CVI camera test ( *Optional ) HD CVI camera, CVI dome camera test and PTZ control, click icon to enter When HD CVI signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows 1280x720P 25FPS / 1280x720P 30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS/2560x1440P 25FPS/2560x1440P 30FPS/3840 x 2160...
Page 56 （1）PTZ control 1.1 Coaxial PTZ control Click the icon“PTZ”on the right toolbar to do the corresponding setting. “Port”: select coaxial control Enter PTZ address to perform parameters setting Operation instructions, please refer to “3.3.1 PTZ (1) Video monitor test”. The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC tester can test .After setting the parameter, the tester can control the PTZ and lens.
Page 57 To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction, PTZ cameras will rotate accordingly. By two fingers move outward and inward on the touch screen to zoom in and out the PTZ.
Page 58 Call preset position: Tap the preset position area, input preset position number. Tap “call position” to complete call preset position. 1.2 RS485 control Operation instructions, please refer to “3.3.1 PTZ (1) PTZ control parameters setting” （2）Coaxial camera menu setting Tap icon “UTC”, select “menu setting” to enter the dome camera menu Page.53.
Page 59 Input calling dome camera menu address code, after finishing the parameter settings, you can press the or click the icon to call the dome camera menu. Press arrow keys to set Page.54.
Page 60: Tvi Camera Test ( *Optional )
(3) Snapshot, record, photo viewer and video play back, please refer to “3.3.1 PTZ (1) Video monitor test”. Tap “close menu” or press the key “ ” to close camera menu (4) Save setting Click icon “Set” on the right toolbar to enter storage setting. Support auto-storage and manual storage.
Page 61 When HD TVI signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS / 1920x1080P 50FPS / 1920x1080P 60FPS /2048x1536P 18FPS/2048x1536P 25FPS/2048x1536P 30FPS /2560x1440P 15 FPS/2560x1440P 25 FPS/2560x1440P 30 FPS/2688x1520P 15FPS/2592x1944P 12.5FPS/2592x1944P 20FPS...
Page 62: Ahd Camera Test ( *Optional )
Input calling dome camera menu address code, after finishing the parameter settings, you can press the or click the icon to call the dome camera menu More operation instructions (such as PTZ control, coaxial camera menu setting ,snapshot, recording and playback etc), please refer to“3.3.14 CVI camera test”...
Page 63 When AHD signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P 30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS/2048x1536P 18FPS/2048x1536P 25FPS/2048x1536P 30FPS /2560x1440P 15 FPS/2560x1440P 25 FPS/ 2560x1440P 30 FPS/2592x1944P 12.5FPS/2592x1944P 20FPS (1) Coaxial PTZ control...
Page 64: Network Tool
If to coaxial PTZ control the AHD camera, no parameters setting is needed. More operation instructions please refer to “3.3.14 CVI camera test” 3.3.17 Network tool （1）IP address scan Connect the cable to the LAN port, click icon to enter, Set your IP address search range by changing the Start and End IP addresses.
Page 65: 3）Network Test (Ethernet Bandwidth Test)
time and Timeout. Press “Start” to start pinging. If the IP camera or network device is not configured properly or not plugged in, it will say “Destination host unreachable” or have 100% packet loss. If the tester connects to the device, the send and receive packets will have a 0% packet loss. Application: PING testing is the most conventional network debugging tools.
Page 66 a).Start the server: Click “Start Server” button to use the tester as a Server. It will display its IP address at the top of the screen. b). Start send packet test: Using the other IP tester, type in the Server's IP address at the top right corner of the screen.
Page 67 Tester as Client, tester’s IP address is:192.168.0.238. The Server and the Client are at the same network segment, but with different IP address. Input Server’s IP address 192.168.0.237 in the tester and click “Start” to test network bandwidth. Or use tester as a Server, computer as test Client（select Client, input tester’s IP address to test） Page.62.
Page 68: 4）Port Flashing
When use tester as Server, shows results: （4）Port Flashing Connect a network cable to the meter’s “LAN” port, click the icon to open the Port Flashing app. Click “Start”. The IP tester sends a unique signal to make the connected LAN port of the switch flash.
Page 69: 5）Dhcp Server
Application: The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.
Page 70: 7）Link Monitor
Ethernet tester. Click on the Trace Route icon to enter trace route Input tracking IP address or domain name in the Remote Host IP. Set maximum hop count, normally default is 30. Click “start” to trace the goal address （7）Link monitor Click the icon to open the Link Monitor app.
Page 71: Rapid Ip Discovery
the IP address is occupied. If the IP address status shows an X the IP address is available. Click “Stop” to stop the testing Application: Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will result IP conflicts and stop the equipment normal working.
Page 72: Poe Power / Dc12V 2A Power Output
3.3.19 PoE power / DC12V 2A power output When the tester is turned on, the DC12V power output functions are automatically turned on. To use the PoE Power Output function, click on the icon and change the switch “ON” or “OFF”.
Page 73: Cable Test
3.3.20 Cable Test Click icon to enter Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed.
Page 74: Rj45 Cable Tdr Test
3.3.21 RJ45 cable TDR test Connect cable to tester’s LAN port, click icon “ ” to enter RJ45 cable TDR test app. Single test: Test cable status, length and attenuation. Repeat test: Continue to test cable status, length and attenuation. Status: After link up, screen display “online”, if not link up or open circuit, screen display ”open circuit”, if cable pair is short circuit, screen display “short circuit”...
Page 75 Advanced Test: Test cable pair status, length, attenuation, reflectivity, impedance, skew and other parameter. Attenuation reflectivity: After link up, if reflectivity value is 0, it is the best quality communication Impedance: After link up ,if the impedance value is 100 Ω,it is the best quality communication, the range is generally in 85-135 Ω...
Page 76: Cable Search ( *Optional )
Cable sequence diagram: A straight- through and cross-over cable diagram, the cable sequence display for reference Click “Help”, check the instruction of all parameters. 3.3.22 Cable Search ( *Optional ) Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the bottom.
Page 77 Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all the cables in the bundle . You are searching at the other end. The cable that gives off the loudest tone is the cable connected to the tester.
Page 78: Tdr Cable Test ( *Optional )
Note: While the cable tracer tester is receiving the audio signal from the tester, it may be influenced by other signals and make some noise. 3.3.23 TDR cable test ( *Optional ) Note: The testing cable can’t be connected to any equipment; otherwise it will damage the tester! Connect Alligator clip cable to the TDR port, and the cable must connect well before testing, otherwise it will influence the accuracy.
Page 79 User-defined calibration: Choose the cable 100 meters to 200 meters (more than 50 meters) , click “Cable” , “Type” to select user-defined 1 for calibration, 11 groups user-defined can be set. 1.Select user-defined and click “Calibration” to enter test , click “user-defined 1”can define cable name,such as:AiPu BNC-5 2.
Page 80 3.Click “+” or “-” to adjust wave speed ,while display length is the same with the actual Length ,click “Save” to save calibration data . It can be used for the same cable testing next time. Application: TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is open circuit or short-circuit, reflected pulse is generated, the tester receives and deals with the reflected wave, measurement results displayed on the screen.
Page 81: Poe Voltage And Power Measurement
3.3.24 PoE voltage and power measurement Click icon to enter PoE voltage measurement Connect a network cable from a PoE switch to the IP tester’s PSE IN port. Connect an IP camera or other PoE using node to IP tester’s LAN port, the PoE voltage and the cable’s pin connection status show on the screen.
Page 82: Power Input Test
3.3.25 12V power input test Connect 12V power adaptor to tester’s charging port, then click icon “PoE” to enter voltage measurement app ,screen show the current adaptor input voltage and power. Note: the current 12V input measured power is the battery charging power and the device working power,the measured power will change depending on the different of battery power and backlight brightness.
Page 83 2) SYMBOLS: U:DC Voltage Measuring A:DC Current Measuring Ω:Resistance Measuring :Diode Testing :AC Voltage Measuring :AC Current Measuring :Continuity Testing :Capacitance Measuring AC/DC Voltage and current measurement state display Auto- range The Multimeter auto adjust the range by input signal or tested components Data hold Hold data Display the relative measurement value...
Page 84 b. select U ~ , enter the AC voltage measurement. C.the tester default Auto range status, by click “AC auto range” d. Manual range can be select , press the key “NEAR” to restore Auto range e．Manual range: 0.000V → 6.600V range 00.00V →...
Page 85 ◆ The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage the operator. ◆ In“ AC ” mode, only can input “AC ”, if not, will damage the meter. Resistance Measuring WARNING! When measuring in-circuit resistance, be sure the circuit under test has all power removed and that all capacitors have discharged fully.
Page 86 Ω a. Connect the black test lead to the “COM” jack and the red test lead to the “V/ ” jack. (the red lead anode “+” ) b. to select , enter the diode testing. c. Connect test red lead across to the anode, the black lead to the cathode of the diode under testing. d.
Page 87 While testing the capacitance of a capacitor to 660uF, the Max time will be 6.6 seconds, if the capacitor is leaked or damaged, the data can’t be read. The tester will be normal after disconnecting the capacitor. Manual range and Auto range When testing, click “Range select "...
Page 88: Optical Power Meter ( *Optional )
if the current over the rated range ,fuse will melt to protect the meter .Pls use the same model when change the fuse, Pls opens the battery cover to change. Note: 10A socket without fuse protection, if over the current range Wrong using the 10A socket to measure the voltage, will damage the meter.
Page 89 While testing, set the wavelength for measurement. Click “relative”(difference) to test, the tester Auto save current fiber power value as the base reference value. Input another optical fiber to be measured, the displayed new measurement and relative value is red color. Press it again to quit. Data hold and Relative measuring use together, the data is yellow while the function is effect.
Page 90: Visual Fault Locator ( *Optional )
3.3.28 Visual Fault Locator ( *Optional ) Click icon to enter VFL four status can select——“Steady mode”, “Evasive 1Hz”,“Evasive 2Hz”and“Time off”. Click button “Steady mode” to enter steady status, click button “Evasive 1Hz” and “Evasive 2Hz, to enter pulse mode, click button “Time off”, VFL is turned off. Timed turn off can select (5 mins, 10 mins, 30 mins, 60 mins and 120 mins).
Page 91: Audio Record
Click icons “Evasive 1Hz”or “Evasive 2Hz” to enter pulse mode, the red laser source is emitted by a certain frequency, press it again to quit 3.3.29 Audio Record Connect an audio device to the IP tester’s audio input port. Click the icon to enter the Audio Recorder app.
Page 92: Audio Player
Click “Setting” to choose the baud rate of RS485/RS232; it must be the same as the DVR or the Control keyboard The DVR or Control keyboard send the code to the tester, if it can be read, the protocol will shown on the upper right, like Pelco D, if not, like P:--- While the tester receives the code, press the key to empty.
Page 93: Rtsp Player
The Media player can browse video and image files. It supports the video formats of MP4, H.264, MPEG4, and MKV. The IP tester recorded files can play directly via the Media player. The Media player will automatically display the video files from the SD card. Click on the desired file to play. Click RETURN to exit.
Page 94: Hik Test Tool
Local IP: This is the IP testers IP address. RTSP Add: This is where you can manually enter the IP camera’s RTSP URL or click on Search to search the network for cameras that use an RTSP stream. IPC Username: Enter the IP camera’s user name. IPC Password: Enter the IP camera’s password.
Page 95 2.Input password：Input new password, tap “ok” to activate 3. Confirm activation After activating the camera, the program default modifies the camera IP. Activated multiple cameras in the local area Network, and pop-up menu to modify IP, improve project efficiency. Page.90.
Page 96 Play: Display image from the camera Modify network information: Change the camera IP address, subnet mask and gateway etc. Modify user information: Modify the camera's user name and password. Factory Reset： Camera factory reset Page.91.
Page 97: Dahua Test Tool
3.3.35 Dahua test tool Dahua test tool is developed for installation and debugging of the Dahua IP camera, it can display image, and modify IP, user name and password etc. Making Dahua camera test more convenient and quickly. Click “DH” icon , to enter Dahua test tool.
Page 98 If the camera not supports non-verification login, pls select “camera” of online detection menu, and input correct user name and password, then click “log in”. After logging successful, you can test it. Play: select mainstream or seconded stream, IP camera live video display Modify network information: modify camera parameter, such as ip address, subnet mask, gateway etc.
Page 99 Modify user information: modify camera user name and password, which is onvif, Dahua test tool, IPC TESTE user name and password, not web user name and password. Factory reset setting: camera will be soft reset, and the device’s user name, password and network set be saved.
Page 100: Update
3.3.36 Update Copy the downloaded update file to SD card "update" directory, if no directory, please create one. Click the icon to open the Update menu. Select “Local Update” to update via the SD card or select “Online Update” to check for updates on the internet. If there are applications that need updating, the applications will be listed in the interface, click related applications, update to the latest version.
Page 101: Office
3.3.37 Office Quick office app (support excel, word, ppt format) doc. editable 3.3.38 LED Flashlight It is convenient for the installation or maintenance in the evening or in the dark. Click icon enter While in the flashlight app, click the red button to turn on the LED lamp. Press it again to turn it off. If you don’t press the red button to shut off the lamp and press the button to exit the app, the lamp will stay on.
Page 102: Browser
3.3.39 Browser Click icon to enter Type in the camera’s IP address and press “Go” to access the IP camera’s interface. NOTE: You will not be able to view live video in the web browser. For viewing video, use the IP tester’s live camera view Apps The IP camera and IP tester be on the same network segment for the browser to interface with the camera.
Page 103: System Setting
details. Press the record bar for several seconds, prompt whether delete it 3.3.41 System Setting Click icon to enter Language: Select your desired language: English, Chinese, Korean, Russian, Italian, Polish, Spanish, French or Japanese Typewriting: You can select typewriting or install other typewriting: Page.98.
Page 104 Date/Time: Set the Date/time of the IP tester IP setting: Manually set the IP address, Subnet Mask, Default Gateway and DNS address or select “Dynamic allocation” to use DHCP. WLAN Net: Turn WiFi off or on by pressing the “Open the wifi” button. Once WiFi is turned on, and click connected WIFI, it will scan for wireless networks in your area.
Page 105 Select and press “WIFI” several seconds, to set static IP address Wi-Fi hotspot: input “SSID” name and “password”, and then click “ok” to create Wi-Fi hotspot. Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings. Volume: Set volume level SD Card: Displays SD Card Capacity.
Page 106 Start the FTP server and then input the tester’s FTP address in the PC’s address bar. This will enable the PC to read, copy and edit the files from the SD card without the use of SD card reader. Version information: Shows applications version information, if press any apps icon several seconds to uninstall Screen display rotation: Click on “Screen Rotation”...
Page 107: File Explorer
screen or “NO” Password Lock Screen: Set password, you can input digitals, letters or characters as password, input it again to confirm .when the meter is in standby mode or turn it on, you can input your password to enter. Pattern Lock Screen: Drawing a pattern to lock.
Page 108: Theme
FTP server You can choose internal or external SD card. Other operation details, Pls refer to FTP settings 3.3.43 Theme Click Theme icon to enter themes setting. Desktop style : you can select Lite mode or normal mode. Theme: Pressing square area’s any color icon several seconds, the selected color icon will be auto move the Page.103.
Page 109 rectangle area, if you press selected color several seconds, and it will be auto deleted Theme colors include fixed order and random order, and click “set” to save Color When set background color, you can select colors from Color Phase, and also can input color’s RGB to set.
Page 110 Set as desktop background: Setting color as desktop background Set as application background: Set color as application background Set at the same time: Setting color as desktop background and application background. Cancel: Cancel current setting. Picture: Click Picture to select one, and set as temporarily background to view setting effect. Click “more” to select pictures from local file, and click set to set picture as background.
Page 111: Audio Test
3. 4 Audio test You can test the audio input from audio pickup devices by connecting the audio pickup device to the IP tester with the supplied audio cable. 3.5 PoE power output The IP tester supports PoE (Power over Ethernet) output to an IP camera via the LAN port. Data transmission and 48VDC use the network cable’s 1, 2, 3, and 6 pins to deliver power.
Page 112: Dc12V 2A Power Output
Notice a. Please make sure the cable connected to the tester’s Lan port is straight-line cable and has no short circuit, otherwise will damage the tester b. Before using PoE power output, pls check the IP camera whether supports POE powered. Otherwise it will damage the IP camera.
Page 113 Application Power output function is mainly used in the camera field demonstration and testing, meanwhile, for some camera installation sites, If there is no power outlet for the adapter to power the camera, the tester can offer temporary power for it. But we do not suggest tester supply power for a long time. Notice: Don’t input any power into the “DC12/2A OUTPUT”...
Page 114: Specifications
4. Specifications 4.1 General Specifications Model IP Camera Tester【*】models Optional Display New 4inch IPS touch screen cctv tester 800x480 resolution Network port 10/100/1000M auto adjust, RJ45 Built in WIFI, speeds150M, allows you to connect to a wireless network WIFI and view IP cameras H.265 Main stream New hardware decoding, 4K H.265/H.264 camera image display by test...
Page 115 1 channel AHD input（BNC interface）,resolution support 720p 25,30fps / AHD video signal test 1080p 25,30fps/2048x1536p 18,25,30fps , 2560x1440p 15,25,30fps/ *（Optional） 2592x1944p 12.5,20fps UTC control and call OSD menu Analog video test 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) Video level meter * PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for cvbs camera.
Page 116 Test UTP cable connection status and display on the screen. Read the UTP Cable tester number on the screen Captures and analyzes the command data from controlling device, also can Data monitor send hexadecimal IP address scan, link scan, and Ping test. Quickly search the for IP camera’s Network test IP address on your network Cable tracer*...
Page 117: Multi-Meter Specifications
Working -10℃---+50℃ Temperature Working Humidity 30%-90% Dimension/Weight 204mm x 123mm x 38mm / 0.6kg 4.2 Multi-meter specifications Counts:-6600～+6600 Conversion rate: 3times/s Current modes for clamp meter with ZERO function Isolation: the Multi-meter connector must be isolated with the other connector. DC voltage Range Accuracy...
Page 118 6.600mA 66.00mA 10uA ±（0.5%+3） 660.0mA 100uA 10.00A 10mA ±（1%+5） AC current Range Accuracy Resolution 6.600mA 66.00mA ±（0.5%+3） 10uA 660.0mA 100uA 10.00A ±（1%+5） 10mA Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±（0.8%+5） 6.600KΩ 1Ω 66.00KΩ 10Ω ±（0.8%+2） 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ ±（1.2%+5）...
Page 119: Optical Power Meter Specifications
Range Resolution Function Schottky diode:0.15~0.25V 2.0V rectifier diode:0.6~1.0V triode PN junction:0.5~0.8V Capacitance Range Accuracy Resolution 6.600nF ±（0.5%+20） 66.00nF 10pF 660.0nF 100pF ±（3.5%+8） 6.600μF 66.00μF 10nF 660.0μF 100nF 6.600mF 1μF ±（5%+8） 66.00mF 10μF 4.3 Optical power meter specifications -70～+10dBm Measure Range(dBm) Wavelength(nm) 850nm,1300nm,1310nm,1490nm,1550nm,1625nm Detector...
Page 120: Visual Fault Locator Specifications
-20～+70 Storage Temperature (℃) Connector type FC/PC 4.4 Visual fault locator specifications Laser type Wavelength Calibration 650nm Output power 5mW（Optional 10mW,20mW） Modulation mode CW/1Hz/2Hz Measurement Range 5KM（Optional 10-20KM） Connector FC/PC exchangeable Working Temperature －10℃～+50℃ Operating Temperature -20℃～+70℃ The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to call the Technical Department of our company.
