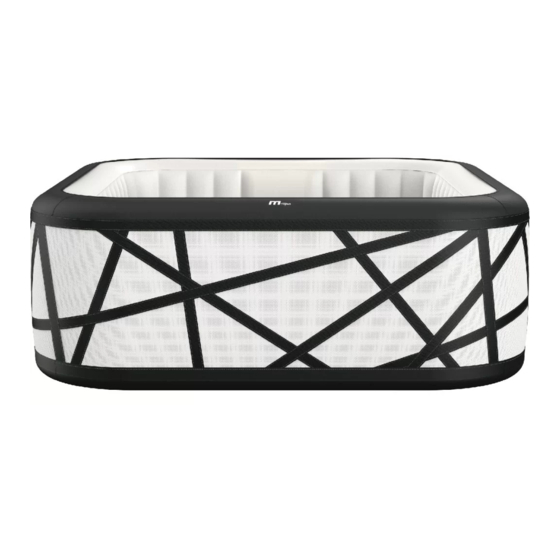

mspa Soho P-SH063 Owner's Manual
  1. Manuals
  2. Brands
  3. mspa Manuals
  4. Hot Tub
  5. Soho P-SH063
  6. Owner's manual

mspa Soho P-SH063 Owner's Manual

Hide thumbs Also See for Soho P-SH063:
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . t h e - m s p a . c o m
Owner's Manual
P-SH063 Soho
P-CA043/063
Camaro
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER
SALES SERVICE CENTER FOR ANY PRODUCT-RELATED QUESTIONS OR CONTACT MSPA AT
info@the-mspa.com
Due to MSpa continuous product improvement, MSpa reserves the right to change the product appearance and specifications, which
may result in updates to the instruction manual without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soho P-SH063 and is the answer not in the manual?

Questions and answers

Related Manuals for mspa Soho P-SH063

Summary of Contents for mspa Soho P-SH063

  • Page 1 SALES SERVICE CENTER FOR ANY PRODUCT-RELATED QUESTIONS OR CONTACT MSPA AT info@the-mspa.com Due to MSpa continuous product improvement, MSpa reserves the right to change the product appearance and specifications, which may result in updates to the instruction manual without notice.

  • Page 2: Table Of Contents

    To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please read this manual carefully before using the product for the first time. We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of our expertise.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS For your own safety and that of your product, please make sure to follow the safety precautions below. Failure to follow the instructions may result in serious injury, property damage or death. Improper installation or operation will void the warranty. PLEASE ENSURE THAT YOU READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE DANGER...
  • Page 4 ● Do not use the spa if it is damaged on delivery and/or if it malfunctions in any way. ● Contact the MSpa service center for further instructions. ● Keep all pets away from the spa to avoid any damage.
  • Page 5 ● Do not add bath oil or bath salt to the spa water. ● NEVER PUT HEAD UNDER WATER. ● Avoid swallowing the spa water. CAUTION ● Always add chemicals to water, never add water to chemicals. Adding water to chemicals may cause strong fumes or violent reactions and hazardous chemical spray.
  • Page 6 Warning: The appliance's water protection levels vary across different product zones, as shown in the following diagram. (The installation regulations comply with IEC 60364-7-702.) 2.5 m Zone 2 Zone 1 Zone 2 2.5 m Zone 0 Zone 0 1.5 m 2.0 m 2.0 m 1.5 m...

  • Page 7: Specifications

    SPECIFICATIONS BUBBLE SPA Seating Water Outside Inside Model No. Temp Increasing Shape Height Weight Capacity Capacity Dimensions Dimensions / Code Rate P-SH063 / 930Ltr 1.85m 1.45m 0.68m 34kg 1.5-2.0 °C/h Square SOHO (245gal) (73”) (57”) (27”) (75lbs) P-CA043 / 700Ltr 1.80m 1.40m 0.70m...

  • Page 8: First Use And Set-Up Preparation

    REF. NO. PARTS DESCRIPTION QTY. Spa cover with aluminum foil inside (Soho P-SH063 comes with a ground mat with the cover) Spa tub Wired controller Heat preservation bubble mat (For P-CA043/063) Digital lock (except for Soho P-SH063) Inflation hose for bladder...

  • Page 9: Spa Set-Up

    3. Spread the Heat Preservation Ground Mat over a cleared area. Spread out the spa liner over the ground mat. The heat Preservation Mat prevents heat loss from the bottom of the unit. ● NOTE: SOHO P-SH063: Spread out the square ground mat and this side place it to the selected site. Make sure the buckle of cover face down and mat is attached when the spa is not in use.
  • Page 10 4. Spa Inflation 4.1 Plug the spa into the grounded supply socket. 4.2 Press the RESET button on the PRCD, the screen on controller shows numbers. 4.3 Turn the inflation knob to the inflation status <ON> and long press (≥2 minutes) the bubble button on the controller to start inflating until the yellow section of the manometer is pushed out.
  • Page 11 WARNING: ● The water level must reach the Minimum water line but not exceed the Maximum line to avoid pump failure. ● Never pour water with a temperature higher than 40°C (104°F) directly into the spa. ● To avoid control system failure, do not operate the spa until water reaches the Minimum line. 6.3 After water filling, double check the spa pool air pressure to make sure the manometer points out to the Green section.

  • Page 12: Wired Controller Operation

    WIRED CONTROLLER OPERATION Heater Button Filter Button Timer Button Bubble Button Down Button Up Button LED display °C °F Once powered-up, press the RESET on the PRCD. The LED displays the current water temperature automatically. NOTE: The actual water temperature may vary from the temperature displayed on the LED screen by as much as approximately 1°C. HEATING HEATER button to turn the heating system on/off.

  • Page 13: Water Maintenance And Chemicals

    HEATING TIMER To set the number of hours FROM NOW when the heater will activate: TIMER TIMER button to enter pre-setting mode. The button displays green. 1. Press the 1-99H TIMER 2. Pressing the UP or DOWN button will cause the LED to flash. While it is flashing, you can adjust the number of hours before heater DOWN activation (from 1 to 99 hours).
  • Page 14 PARAMETER TEST FREQUENCY CORRECT LEVEL 7.2-7.6 when using Chlorine; Daily 7.2-7.8 when using Bromine Daily 3-5 ppm Free Chlorine Daily 2-4 ppm Bromine residual Weekly 80-120 ppm Total Alkalinity (TA) Weekly 200-500 ppm Total Hardness (TH) NOTE ● A low pH will damage the spa tub and pump. Any damage resulting from a chemical imbalance will void the warranty. ●...

  • Page 15: Drainage, Cleaning And Storage

    DRAINAGE, CLEANING AND STORAGE Spa Drainage 1. Turn off all the functions. 2. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area. 3. Remove the drain valve cap from the outside of the spa tub and attach the drain valve adaptor to the drain valve. 4.

  • Page 16: Precautions For Seasonal Use

    pin hole pin hole Storage and Preparation for Future Use 1. Drain and clean the spa by following the “Drainage” and “Spa Cleaning” sections. 2. Refer to the instructions to deflate the spa tub and air bladder. 3. Make sure all the spa components and accessories are thoroughly clean and dry before storage.

  • Page 17: Disposal And Environmental Protection

    ERROR CODE CHART LED READING CAUSE SOLUTION Water temperature is lower than 0°C degree or exceeds 55°C (131°F) Change the water or contact local MSpa Service Center. Temperature sensor failure Waterflow switch failure Contact local MSpa Service Center. Filter failure Add water above the minimum line.
  • Page 18 Increase filtration frequency WATER NOT CLEAN Dirty filter cartridge Clean or replace the filter cartridge in time Improper water maintenance Refer to the chemical manufacture's instruction CONTACT YOUR LOCAL MSPA DEALER OR SERVICE CENTER FOR ANY PRODUCT RELATED QUESTIONS OR PROBLEMS.

  • Page 19: Mspa Limited Warranty

    ● Warranty service outside the country of purchase is limited to the terms and conditions of the corresponding warranty in the country of service. Where the cost of repairs or replacement is not covered by this warranty, MSpa will advise the owners and the cost shall be charged to the owner.
