www.the-mspa.com
MSpa® Owner's Manual
and Warranty Card
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER
SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT
info@the-mspa.com
Due to MSpa continuous product improvement, MSpa reserves the right to change
specifications and product appearance, which may result in updates to the instruction
manual without notice.
®
Where Luxury Is Affordable

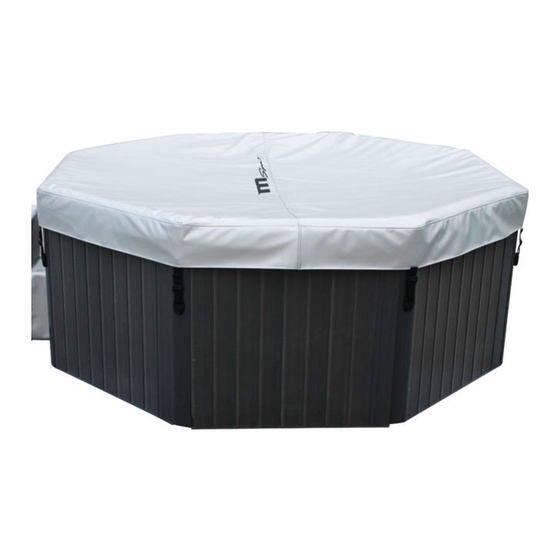

PM-610S Tuscany
PM-710S Tuscany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-610S Tuscany and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mspa PM-610S Tuscany

Summary of Contents for mspa PM-610S Tuscany

  • Page 1 Warranty Card PM-610S Tuscany PM-710S Tuscany DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT info@the-mspa.com Due to MSpa continuous product improvement, MSpa reserves the right to change specifications and product appearance, which may result in updates to the instruction manual without notice.

  • Page 2: Table Of Contents

    To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please carefully and thoroughly read this manual entirety before using the product for the first time. We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of our expertise.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS For your own safety and that of your product, make sure to follow the safety precautions below. Fail to follow the instruction may result in serious injury, property damage or death. Improper installation or operation will void the warranty. READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS DANGER ●...
  • Page 4 ● Residential electrical connection box must be located safely with a distance of at least 2m away from the spa. ● Electric installation should fulfill the local requirement or standards. ● Do not press down or uplift the control panel or put any heavy items on the control panel after installations.
  • Page 5 several degrees above the normal body temperature 37°C(98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia include failure to perceive heat; failure to recognize the need to exit spa; unawareness of impending hazard;...
  • Page 6 For water already used, discharge it in time or use water chemicals for cleaning. Usually,change water every 3-5 days. ● Use Mspa chemical kit for disinfection in accordance with manufacture's instructions. ● Do not leave or set up the spa in temperature lower than 4°C(39°F) if heater is not operating.
  • Page 7 Warning: Water protection levels of appliance at different product zones are different see the following scheme. ( Installation regulations comply to IEC 60364-7-702) 2.5 m Zone 2 Zone 1 Zone 2 2.5 m Zone 0 Zone 0 1.5 m 2.0 m 2.0 m 1.5 m NOTE-The measured zone dimensions are limited by walls and fixed partitions.

  • Page 8: Specifications And Product Overview

    SPECIFICATIONS BUBBLE SPA Outside Model No. Seating Shape Water Capacity Height Weight Dimensions Capacity / Code PM-610S 860 Ltr 1.62m 0.68m 59.5kg Octagon 4 - 5 / Tuscany (227 gal) (64”) (27”) (131.2lbs) PM-710S 1200 Ltr 1.93m 0.73m 71.5kg Octagon 5 - 6 / Tuscany (317 gal)
  • Page 9 PRODUCT OVERVIEW Packaging content ® ® ® L./M. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

  • Page 10: First Use And Set-Up Preparation

    REF. NO. PARTS DESCRIPTION QTY. Spa cover with aluminum foil inside Spa liner Control panel Corner beam Sponge rail Open-end panel Plastic wood panel Heat preservation ground mat Filter cartridge (twin pack) Spa drain valve adaptor Repair kit Spa cover inflatable bladder Inflation hose for bladder Wrench Control box without plug and leather cover...
  • Page 11 Additional requirements for outdoor installation ● Make sure to set up the spa on a firm, level and smooth surface that is strong enough to support the full weight of the filled spa and maximum occupants. ● Do not set up the spa on grass or dirt, as this increases the amount of debris entering the spa, and damage the spa floor.

  • Page 12: Spa Set-Up

    Lay out all the parts on the ground and make sure all parts are accounted for. (*For missing or damaged part, contact MSpa Service Center) Spread out and connect the 9 pcs foam mat at a cleared area. Heat Preservation Mat prevents heat loss from the bottom of the unit.
  • Page 13 5. Spa liner assembly 5.1 Take out the Spa Liner, put it inside the spa wall frame. Make sure the Connection Pipe Joint Side on the liner stuck out the "Open-end panel" and go through the open section on the panel. 5.2 Stretch the top trim of the liner (Silver or Brown Trim) over the Sponge Rails.
  • Page 14 6.5 Connect the control panel to the control box. Fasten and secure the rings to the pipe adapter on the spa tub. (Figure.6.5) Make sure the rubber O-rings are properly placed on the air pipes. Close the panel zipper cover once the Air pipe panel is installed.
  • Page 15 8.4 Turn on the Heater on the spa control panel, refer to the “Control Panel Operation” section. Maximum heating temperature is 42°C(108°F). Hourly heating rate is about 1.2°C-1.8°C (2°F-3°F) for PM-610S and 0.5°C-1.5°C (1.5°F-2°F) for PM-710S. 9. Buckle Operation Lock the Buckle ●...

  • Page 16: Control Panel Operation

    CONTROL PANEL OPERATION 1. ON/OFF Button 2. Bubble Button - Adjust the bubble level by pressing the button (L1:300W, L2: 500W, L3:720W) 3. Filter Button 4. Heater Button 5. Temperature UP & DOWN Button 6. Celsius/Fahrenheit Toggle Button 7. Ozonator Button ON/OFF Button: To activate the control panel.
  • Page 17 Step 2: Connect the power supply, press RESET button on the PRCD. Step 3: If E3 shows, contact the MSpa System failure Service Center. If E3 is flashing, press ON/OFF, C/F,TEMP+ buttons once insequence, enter to the self-checking system.

  • Page 18: Water Maintenance And Chemicals

    WATER MAINTAINCE AND CHEMICALS Water Sanitation The spa owner must regularly check and keep the spa water sanitized with scheduled maintenance (daily, if necessary). Adding sanitizer or other chemical will control bacteria and viruses present in the spa water. The maintenance of a proper water balance through appropriate use of sanitizers is the most important factor in maximizing the life and appearance of the spa as well as ensuring clean, healthy and safe water.
  • Page 19 MSpa Water Treatment Kit MSpa Water Treatment Kit (*Optional) ● B0301858 MSpa Chemical Starter Kit (20 X 20g Bromine Tablets + 500ml Algaecide + Floating Dispenser) Disinfectant for water spas and pools. disinfectant, algaecide and bactericide.

  • Page 20: Drainage, Cleaning And Storage

    DRAINAGE, CLEANING AND STORAGE Spa Drainage 1. Turn off all the buttons (heater, filter and bubble) on the control panel unit. 2. Connect the drain valve adapter to a garden hose and point the other end of the garden hose to a suitable draining area with local environmental regulations (Fig.1) 3.

  • Page 21: Disposal And Environmental Protection

    3. Smooth the surface to remove any air bubbles and allow it dry for 5-10 minutes NOTE: Glue is not included. pin hole pin hole Storage and Prepare for the Next Time Use 1. Drain and clean the spa by following the “Drainage”...

  • Page 22: Troubleshooting

    Insufficient filtering WATER NOT CLEAN Clean or replace the filter cartridge in time Dirty filter cartridge Improper water maintenance Refer to the chemical manufacture's instruction CONTACT YOUR LOCAL MSPA DEALER OR SERVICE CENTER FOR ANY PRODUCT RELATED QUESTIONS OR PROBLEMS.

  • Page 23: Mspa Limited Warranty Policy

    The warranty period begins on the date of purchase and MSpa requires presentation of the original proof to purchase to ascertain the date. During the warranty period, MSpa will either repair or replace, at its discretion, any defective products. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.
