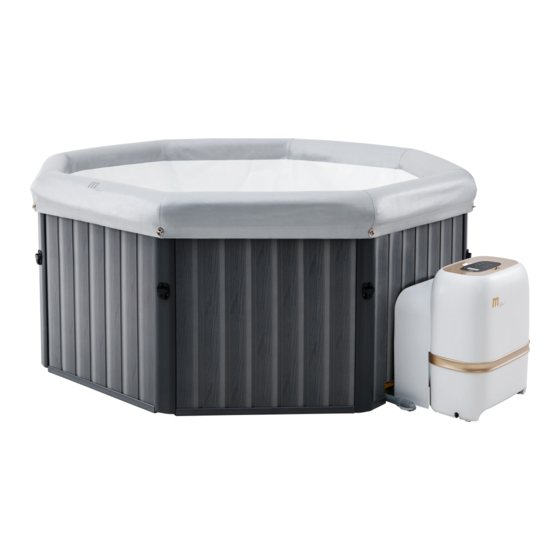

mspa TUSCANY Owner's Manual

Hide thumbs Also See for TUSCANY:

Advertisement

Table of Contents

Where Luxury Is Affordable
www.the-mspa.com
MSpa
®
Owner's Manual
TUSCANY
P-TU069 / P-TU069
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER
SALES SERVICE CENTER FOR ANY PRODUCT-RELATED QUESTIONS OR CONTACT MSPA AT
info@the-mspa.com
Due to MSpa continuous product improvement, MSpa reserves the right to change the
product appearance and specifications, which may result in updates to the instruction
manual without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSCANY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mspa TUSCANY

Summary of Contents for mspa TUSCANY

  • Page 1 SALES SERVICE CENTER FOR ANY PRODUCT-RELATED QUESTIONS OR CONTACT MSPA AT info@the-mspa.com Due to MSpa continuous product improvement, MSpa reserves the right to change the product appearance and specifications, which may result in updates to the instruction manual without notice.

  • Page 2: Table Of Contents

    To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please read this manual carefully before using the product for the first time. We are delighted to welcome you to the MSpa family, and we are looking forward to sharing with you the full spectrum of our expertise.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS For your own safety and that of your product, make sure to follow the safety precautions below. Fail to follow the instruction may result in serious injury, property damage or death. Improper installation or operation will void the warranty. READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS DANGER ●...
  • Page 4 socket-outlet of the fixed wiring. ● Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V, must be inaccessible to occupants in the spa. ● Parts incorporating electrical components, except remote control devices, must be located or fixed so that they cannot fall into the spa. ●...
  • Page 5 temperature regulating devices varies. d) The use of alcohol, drugs or medication before or during spa use may lead to unconsciousness with the possibility or drowning. e) The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in spas.
  • Page 6 ● For water already used, discharge it in time or use water chemicals for cleaning. Usually,change water every 3-5 days. ● Use Mspa chemical kit for disinfection in accordance with manufacture’s instructions. ● Do not leave or set up the spa in temperature lower than 4°C (39°F) if heater is not operating.
  • Page 7 ● Place the spa or hot tub only on a properly prepared site that can withstand the floor loading requirement of the spa. ● Do not leave the spa empty for extended period of time. Drain away water inside the pool thoroughly for long time disuse. Do not expose the spa under direct sunshine.
  • Page 8 Warning: The water protection levels of appliance at different product zones are different. See the following diagram. ( Installation regulations comply to IEC 60364-7-702) 2.5 m Zone 2 Zone 1 Zone 2 2.5 m Zone 0 Zone 0 1.5 m 2.0 m 2.0 m 1.5 m...

  • Page 9: Specifications And Product Overview

    / Code Capacity P-TU049 Octagon 4 - 5 860 Ltr (227 Gal) 1.62m (64”) 0.68m (27”) 59kg (130.1 lbs) / Tuscany P-TU069 Octagon 5 - 6 1200 Ltr (317 Gal) 1.93m (76”) 0.73m (29”) 71.5 kg (157.5 lbs) / Tuscany...
  • Page 10 PRODUCT OVERVIEW Packaging content ® NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

  • Page 11: First Use Preparation And Set-Up

    REF. NO. PARTS DESCRIPTION QTY. Spa cover with aluminum foil inside Spa liner all-in-one Control Box Corner beam Sponge rail Open-end panel Plastic wood panel Heat preservation ground mat Filter cartridge*2, cartridge base Spa drain valve adaptor Repair kit Inflatable bladder Wrench Foot pump and inflation hose for bladder NOTE: When ordering parts, be sure to quote the model number, part numbers and description.
  • Page 12 ● Humidity is a naturally side effect of indoor spa installation. The room shall be properly ventilated to allow moisture to escape. Install a ventilating system to prevent excess condensation moisture in the room. Additional requirements for outdoor installation ● Make sure to set up the spa on a firm, level and smooth surface that is strong enough to support the full weight of the filled spa and maximum occupants.

  • Page 13: Spa Set-Up

    2. Lay out all the parts on the ground and make sure all parts are accounted for. (*For missing or damaged part, contact MSpa Service Center) 3. Spread out and connect the 9 pcs foam mat at a cleared area. Heat Preservation Mat prevents heat loss from the bottom of the unit.
  • Page 14 5. Spa liner assembly 5.1 Take out the Spa Liner, put it inside the spa wall frame. Make sure the Connection Pipe Joint Side on the liner stuck out the "Open-end panel" and go through the open section on the panel. 5.2 Stretch the top trim of the liner over the Sponge Rails.
  • Page 15 NOTE: Deflation Instruction Spa Bladder Deflation 1. Pull the valve cap out and squeeze the valve at its base until deflated. 2. Close and recess the valve back. 8. Water Filling 8.1 Check the spa liner is at the selected area and point the drain valve toward a suitable draining area.

  • Page 16: Wired Controller Operation

    Unlock the Buckle ● Use the key to release the lock. Keep the keys properly. Unlock Lock ALL-IN-ONE CONTROL PANEL Heater Button Filter Button Timer Button Bubble Button - Adjust the bubble level by pressing the button Celsius/Fahrenheit (L1:300W, L2: 500W, L3:720W) Toggle Button Ozonator Button Down Button...
  • Page 17 Temperature display: press RESET on PRCD, read the current temperature on the screen. Heater Button: Press HEATER button to start or stop heating. The filter will automatically be running for 15 seconds to test the working condition once HEATER HEATER function is started.
  • Page 18 Celsius/Fahrenheit Toggle Button: The temperature can be displayed in either Celsius or Fahrenheit. Ozonator Button: Activate the Ozone. The Ozone icon should be constantly lighting when activated. For bathers' safety concern, the ozonator cannot be operated at the same time when the Bubbling function is on.

  • Page 19: Water Maintenance And Chemicals

    WATER MAINTENANCE AND CHEMICALS Water Sanitation The spa owner must regularly check and keep the spa water sanitized and maintained regularly (daily, if necessary). Adding sanitizer or other chemical will control bacteria and viruses reproduction in the spa water. The maintenance of a proper water balance through appropriate use of sanitizers is the most important factor in maximizing the life and appearance of the spa, as well as ensuring clean, healthy, and safe water.
  • Page 20 1.1 Install clean filter cartridge to water inlet. ● First install the cartridge base to the inlet by rotating it clockwise. Then install the filter cartridge to the base. Push and fix it. It should always stay in place when the spa is filled with water.

  • Page 21: Drainage, Cleaning And Storage

    DRAINAGE, CLEANING AND STORAGE Spa Drainage 1. Turn off all the buttons (heater, filter and bubble) on the wired controller. 2. Connect the drain valve adapter to a garden hose and point the other end of the garden hose to a suitable draining area with local environmental regulations (Fig.1) 3.

  • Page 22: Disposal And Environmental Protection

    1. Clean and dry the area to be repaired thoroughly 2. Apply the glue to the PVC patch and quickly attach it onto the damaged surface. 3. Smooth the surface to remove any air bubbles and allow it dry for 5-10 minutes NOTE: Glue is not included.

  • Page 23: Troubleshooting

    TROUBLESHOOTING ERROR CODE CHART LED READING CAUSE SOLUTION Water temperature is lower than 0°C Change the water or contact the MSpa degree or exceeds 55°C (131°F) Service Center. Temperature sensor failure Water flow switch failure Contact the MSpa Service Center.
  • Page 24 Increase filtration frequency WATER NOT CLEAN Dirty filter cartridge Clean or replace the filter cartridge in time Improper water maintenance Refer to the chemical manufacture's instruction CONTACT YOUR LOCAL MSPA DEALER OR SERVICE CENTER FOR ANY PRODUCT RELATED QUESTIONS OR PROBLEMS.

  • Page 25: Mspa Limited Warranty Policy

    The warranty period begins from the date of purchase and MSpa requires presentation of the original proof to purchase to ascertain the date. During the warranty period, MSpa will either repair or replace, at its discretion, any defective products. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.
