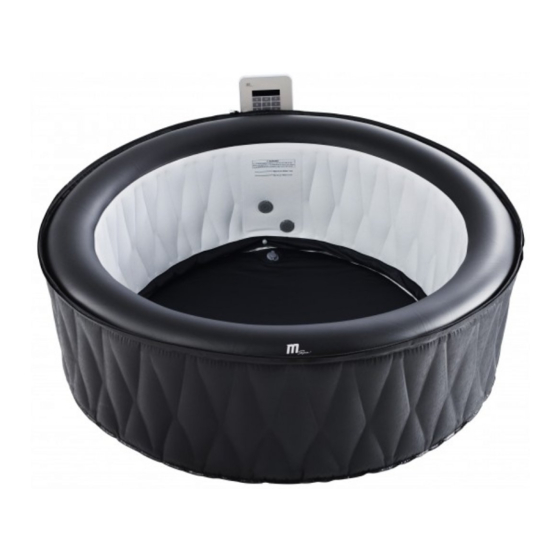

mspa Mont Blanc P-MB06 Owner's Manual
  1. Manuals
  2. Brands
  3. mspa Manuals
  4. Hot Tub
  5. Mont Blanc P-MB06
  6. Owner's manual

mspa Mont Blanc P-MB06 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

www.the-mspa.com
MSpa®
Owner's Manual
M-009LS / 019LS
M-011LS / 021LS
D-TE06
M-029S
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER
SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT
info@the-mspa.com
Due to MSpa continuous product improvement, MSpa reserves the right to change
specifications and product appearance, which may result in updates to the instruction
manual without notice.
Where Luxury Is Affordable
Alpine
Silver Cloud
Tekapo
Soho
M-031S
M-051S
M-113S / 115S
P-MB04 / MB06
Camaro
Super Camaro
Luxury Exotic
Mont Blanc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mont Blanc P-MB06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mspa Mont Blanc P-MB06

Summary of Contents for mspa Mont Blanc P-MB06

  • Page 1 Soho P-MB04 / MB06 Mont Blanc DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT info@the-mspa.com Due to MSpa continuous product improvement, MSpa reserves the right to change specifications and product appearance, which may result in updates to the instruction manual without notice.

  • Page 2: Table Of Contents

    To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please carefully and thoroughly read this manual entirety before using the product for the first time. We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of our expertise.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS For your own safety and that of your product, make sure to follow the safety precautions below. Fail to follow the instruction may result in serious injury, property damage or death. Improper installation or operation will void the warranty. READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS DANGER ●...
  • Page 4 ● Residential electrical connection box must be located safely with a distance of at least 2m away from the spa. ● Electric installation should fulfill the local requirement or standards. ● Do not press down or uplift the control panel or put any heavy items on the control panel after installations.
  • Page 5 several degrees above the normal body temperature 37°C(98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia include failure to perceive heat; failure to recognize the need to exit spa; unawareness of impending hazard;...
  • Page 6 For water already used, discharge it in time or use water chemicals for cleaning. Usually,change water every 3-5 days. ● Use Mspa chemical kit for disinfection in accordance with manufacture's instructions. ● Do not leave or set up the spa in temperature lower than 4°C(39°F) if heater is not operating.

  • Page 7: Specifications And Product Overview

    SPECIFICATIONS PREMIUM BUBBLE SPA Seating Water Outside Inside Model No. / Code Shape Height Weight Capacity Capacity Dimensions Dimensions 930Ltr 1.85m 1.45m 0.68m 34kg 4 + 2 Square M-029S / Soho (245gal) (73”) (57”) (27”) (75lbs) 700Ltr 1.80m 1.40m 0.70m 30.5kg Round P-MB04 / Mont Blanc...
  • Page 8 LITE BUBBLE SPA Seating Water Outside Inside Model No. / Code Shape Height Weight Capacity Capacity Dimensions Dimensions 650Ltr 1.58m 1.18m 0.68m 24kg 2 + 2 M-009LS / Alpine Square (171gal) (62”) (46.5”) (27”) (52.9lbs) 930Ltr 1.85m 1.45m 0.68m 27.5kg 4 + 2 M-019LS / Alpine Square...
  • Page 9 PRODUCT OVERVIEW Packaging content ® ® * Only for M-031S/M-051S P-MB04/P-MB06 ® round or square * optional M-009LS/019LS/029S / D-TE06 *Buckle spa cover *Ground mat NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

  • Page 10: First Use And Set-Up Preparation

    Spa cover with aluminum foil inside (M-009LS/019LS/029S/D-TE06 excluded) Spa tub Control panel with air pipe Heat preservation bubble mat (*optional for MSpa LITE products) Heat preservation foam mat (For M-113S/115S) Digital lock (except for M-009LS/019LS/029S/D-TE06) Inflation hose for spa tub and bladder...
  • Page 11 Additional requirements for outdoor installation ● Make sure to set up the spa on a firm, level and smooth surface that is strong enough to support the full weight of the filled spa and maximum occupants. ● Do not set up the spa on grass or dirt, as this increases the amount of debris entering the spa, and damage the spa floor.

  • Page 12: Spa Set-Up

    Heat Preservation Mat prevents heat loss from the bottom of the unit. NOTE: The heat preservation ground mat is not included for MSpa LITE package. It is recommended to apply a ground mat for the spa tub to prevent scratches or heat loss.
  • Page 13 Spa Inflation 6.1 Unscrew the air valve cap (a) on the control panel to reveal the air blower inflation outlet and connect one end of the inflation hose (b) to the outlet. See Figure 5.1 6.2 Unscrew the air valve cap on the spa pool and reveal the stem for inflation. 6.3 Connect the other end of the inflation hose (b) to the manometer (c) first and then insert to the air valve.
  • Page 14 Water Filling 7.1 Check the spa liner is at the selected area and point the drain valve toward a suitable draining area before inflation. 7.2 Fill the spa tub with fresh water to a level between Minimum and Maximum line marked on the inner spa wall.
  • Page 15 8.1.(1) 8.1.(2) 8.1.(3) ® ® ® 8.2 Square Spa Buckle Lock Operation Lock the Buckle ● Insert the buckle on the Ground Mat into the Spa cover buckle, until you hear a “Click” sound. Unlock the Buckle ● Pinch both sides of the locked buckle, and press down the round dot in center in the same time. Press down the center button and release the lock.

  • Page 16: Control Panel Operation

    CONTROL PANEL OPERATION 4 3 2 1. ON/OFF Button 2. Bubble Button 3. Filter Button 4. Heater Button 5. UP & DOWN Button ON/OFF Button: To activate the control panel. ON/OFF Default stand by mode shows red when the power is on. Press again, the control reaches operative mode and turns to green.

  • Page 17: Water Maintenance And Chemicals

    Step 2: Connect the power supply, press REST button on the RCD. System failure Step 3: If E3 shows, contact the MSpa Service Center. If E3 is flashing, press ON/OFF and BUBBLE buttons together, enter the self-checking system.If no error...
  • Page 18 ● High pH (hard water) will result in white coagulations inside the filter pump; which may lead to pump damage. IMPORTANT: ● MSpa Water Treatment kit is strongly recommended for spa use. ● Press the Bubble button on the spa control panel to turn on the bubble air blower and help to dissolve the chemicals into the water.

  • Page 19: Drainage, Cleaning And Storage

    DRAINAGE, CLEANING AND STORAGE Spa Drainage 1. Turn off all the buttons (heater, filter and bubble) on the control panel unit. 2. Connect the drain valve adapter to a garden hose and point the other end of the garden hose to a suitable draining area according to local environmental regulations (Fig.1) 3.

  • Page 20: Disposal And Environmental Protection

    NOTE: Glue is not included. pin hole pin hole Storage and Prepare for the Next Time Use 1. Drain and clean the spa by following the “Drainage” and “Spa Cleaning” sections 2. Reserve the set up instructions to deflate and disassemble the spa tub, spa control unit and air bladder (*Optional) 3.

  • Page 21: Troubleshooting

    Increase filtration time WATER NOT CLEAN Dirty filter cartridge Clean or replace the filter cartridge in time Improper water maintenance Refer to the chemical manufacture’s instruction CONTACT YOUR LOCAL MSPA DEALER OR SERVICE CENTER FOR ANY PRODUCT RELATED QUESTIONS OR PROBLEMS.

  • Page 22: Mspa Limited Warranty Policy

    The warranty period begins on the date of purchase and MSpa requires presentation of the original proof to purchase to ascertain the date. During the warranty period, MSpa will either repair or replace, at its discretion, any defective products. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.

  • Page 23: Mspa Lite Limited Warranty Policy

    The warranty period begins on the date of purchase and MSpa requires presentation of the original proof to purchase to ascertain the date. During the warranty period, MSpa will either repair or replace, at its discretion, any defective products. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.
