- Page 1 MANUAL ENGLISH Pure-10 Passive 10” Full Range Order code: D3740 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Pure-10 Passive 10” Full Range Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................7 Back .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Pure-10 Passive 10” Full Range ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: ●... - Page 4 Only use device indoors, avoid contact with water or other liquids. ● Prevent distortion! Make sure that all components connected to the Pure-10 have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits.
-
Page 5: Operating Determinations
You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The Pure-10 speaker can be placed on a flat stage floor or be hung from a ceiling by means of the Speaker hanging eye (D8436). -
Page 6: Return Procedure
Pure-10 Passive 10” Full Range Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

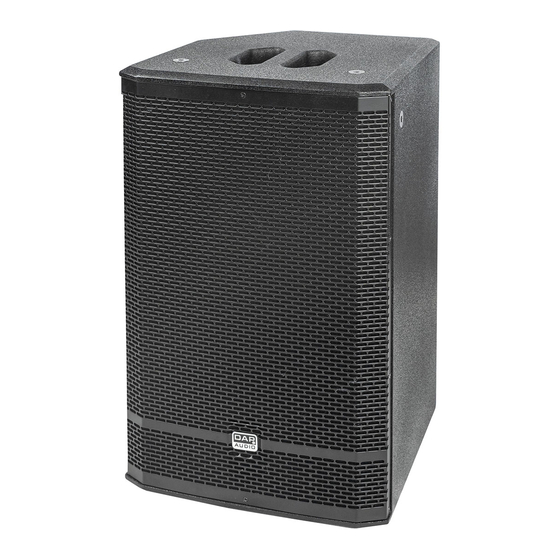

Description of the device Features The DAP Audio Pure-10 is a passive full range 10" speaker. It is a very compact, powerful and versatile cabinet, suitable for mobile applications as well as rental companies or fixed installations. The cabinet is constructed out of birch plywood with a scratch-resistant finish that can handle the rough life on the road. -
Page 8: Overview
Pure-10 Passive 10” Full Range Overview Fig. 01 Back Fig. 02 01) Speakon NL-4 IN 02) Speakon NL-4 OUT Order code: D3740... -
Page 9: Installation
Pure-10 Passive 10” Full Range Installation Remove all packing materials from the Pure-10. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Setup And Operation
Pure-10 Passive 10” Full Range Setup and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 110 V specification product on 230 V power, or vice versa. -
Page 11: Connection Cables
03) If all appears to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not open the Pure-10, as this may damage the unit and the warranty will become void. -
Page 12: Product Specifications
Pure-10 Passive 10” Full Range Product Specifications Model: Pure-10 Passive 10” Full Range System: 2-way bass-reflex Power RMS: 250 W Power peak: 500 W Speaker low: 10", 8 Ω, 50 mm Voice coil Frequency response (-3 dB): 55 Hz–19 kHz Frequency response (-10 dB): 48 Hz–20 kHz... -
Page 13: Notes
Pure-10 Passive 10” Full Range Notes Order code: D3740... - Page 14 Pure-10 Passive 10” Full Range Order code: D3740...
- Page 15 Pure-10 Passive 10” Full Range Order code: D3740...
- Page 16 ©2020 DAP Audio...
