- Page 1 MANUAL ENGLISH Pure Club 12 Order code: D3760 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Pure Club 12 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................6 Subwoofer ..................................7 Satellite .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Pure Club 12 ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: ●... - Page 4 Pure Club 12 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Always disconnect power from the mains, when system is not used. Only handle the power cord by the plug.
-
Page 5: Operating Determinations
Pure Club 12 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device
Description of the device Features The Pure Club 12 set consists of two 6,5/1” satellites and a 12” subwoofer with a built-in amplifier. The satellites are equipped with neodymium high drivers and a special wave guide for frequencies up to 20 kHz. -
Page 7: Overview
Pure Club 12 Overview Fig. 01 Order code: D3760... -

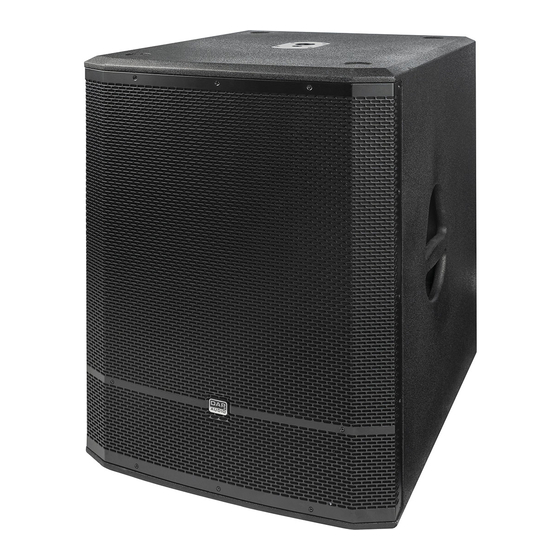

Page 8: Subwoofer
Pure Club 12 Subwoofer Fig. 02 01) LED protection indicator 02) Subwoofer volume control 03) Phase switch Press the button to select the desired phase. 04) LED power indicator 05) Main volume control 06) Combo 3-pin XLR/6,3 mm jack connector, LEFT INPUT Connect a line level device or a microphone. -
Page 9: Satellite
Connect the included subwoofer cabinet. (Pin connection: 1+, 1-) Installation Remove all packing materials from the Pure Club 12. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Setup And Operation
Pure Club 12 Setup and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 110 V specification product on 230 V power, or vice versa. -
Page 11: Connection Cables
Pure Club 12 Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 12: Maintenance
Pin 1- = Ground (-) Maintenance The Pure Club 12 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 13: Troubleshooting
Pure Club 12 Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation. -
Page 14: Product Specifications
Pure Club 12 Product Specifications Model: Pure Club 12 Power supply: 120/230 V AC, 50/60 Hz Power amp low: 350 W RMS @ 8 Ω Power amp high: 2 x 120 W RMS @ 8 Ω Speaker low: 12", 2" Voice coil Speaker high: 6,5/1"... - Page 15 Pure Club 12 Order code: D3760...
