- Page 1 MANUAL ENGLISH Pure-12A 12” Full Range Top Cabin Order code: D3721 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Back ....................................6 Installation ................................... 8 Setup and Operation ................................ 9 Connection Example 1 (2 x Pure-12A and 2 x Pure-18AS) ..................9 Connection Example 2 (2 x Pure-12A and 1 x Pure-18AS) ..................10 Control Panel ................................11 Main Menu Options ..............................11 1. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Pure-12A 12” Full Range Top Cabin ● Pro power cable (1,5 m) ●... - Page 4 Only use device indoors, avoid contact with water or other liquids. ● Prevent distortion! Make sure that all components connected to the Pure-12A have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits.
-
Page 5: Operating Determinations
Pure-12A 12” Full Range Top Cabin Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

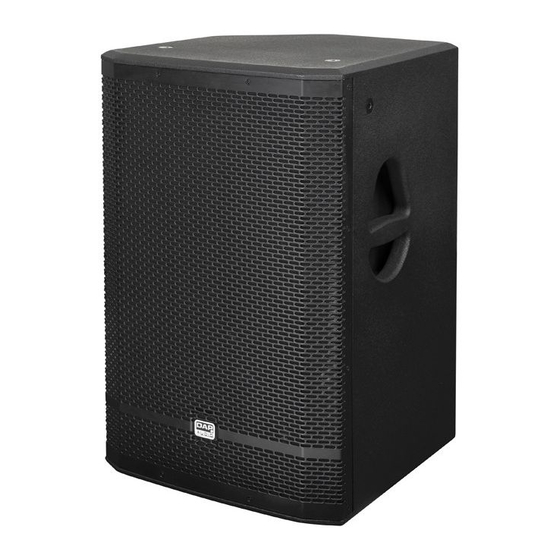

Description of the device Features The DAP Audio Pure-12A is an active full range 12" speaker which can be tweaked perfectly via the 24-bit DSP module. It is a very compact, powerful and versatile cabinet, suitable for mobile applications as well as rental companies or fixed installations. -
Page 7: Back
Move the switch to select one of the 3 ‘link’ modes: ● CH1: The Pure-12A will send the signal received on input 1 to the connected speaker. ● CH2: The Pure-12A will send the signal received on input 2 to the connected speaker. - Page 8 Pure-12A 12” Full Range Top Cabin Fig. 03 13) Combo 3-pin XLR/6,3 mm jack connector, INPUT 2 Connect a line level device or a microphone. 14) Gain control, INPUT 2 Turn the control to set gain for input 2. 15) Sensitivity selector, INPUT 2 Press the button to select the sensitivity of the input 2.
-
Page 9: Installation
Pure-12A 12” Full Range Top Cabin Installation Remove all packing materials from the Pure-12A. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Setup And Operation
Follow the steps below. 01) Connect the outputs on your mixer with the inputs on the Pure-18AS. 02) Connect the Link connectors on the Pure-18AS with the input connectors on the Pure-12A. 03) Turn on your mixer first, then the speakers. -
Page 11: Connection Example 2 (2 X Pure-12A And 1 X Pure-18As)
Follow the steps below. 01) Connect the outputs on your mixer with the inputs on the Pure-18AS. 02) Connect the Link connectors on the Pure-18AS with the input connectors on the Pure-12A. 03) Turn on your mixer first, then the speakers. -
Page 12: Control Panel
Pure-12A 12” Full Range Top Cabin Control Panel Press and turn the control to navigate through the menu options. Fig. 07 Display Off after 60 seconds When the control (19) is neither pressed or turned for 60 seconds, the display will turn off. -
Page 13: Preset
Pure-12A 12” Full Range Top Cabin 1. Preset In this menu you can set the desired preset. 01) Turn the control (19) to select one of the 5 presets: 02) Press the control (19) to confirm. 2. LowEQ In this menu you can set the low equalizer. -
Page 14: Highpass
Pure-12A 12” Full Range Top Cabin 5. Highpass In this menu you can set the high pass filter frequency. 01) Turn the control (19) to select one of the 6 options: 02) Press the control (19) to confirm. 6. Delay In this menu you can set the delay. -
Page 15: Frontled
Pure-12A 12” Full Range Top Cabin 9. FrontLED In this menu you can set the function of the front LED located underneath the grill. 01) Turn the control (19) to select one of the 3 options: ● CLIP: If a received signal is too strong, the LED will light in red. -
Page 16: Lock
Pure-12A 12” Full Range Top Cabin 13. Lock In this menu you can set the menu lock. 01) Turn the control (19) to select one of the 2 options: ● OFF: The menu lock is inactive. ● ON: If the control is not pressed/turned for 60 seconds, the display will turn off. In order to access the main menu, turn and press the control (19) to insert the password. -
Page 17: Store
Pure-12A 12” Full Range Top Cabin 16. Store In this menu you can store the device’s current settings. 01) Turn the control (19) to select a desired slot. There are 6 slots. 02) Press the control (19) to confirm. 03) Turn the control (19) to select the character that needs to be edited. The NAME indicator will show its number (01–18). -
Page 18: Reset
Pure-12A 12” Full Range Top Cabin 18. Reset In this menu you can restore the factory default settings. 01) Turn the control (19) to select one of the 2 options: ● NO: Return to the main menu. ● YES: Restore the factory default settings. -
Page 19: Connection Cables
Pure-12A 12” Full Range Top Cabin Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. -
Page 20: Maintenance
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Pure-12A, as this may damage the unit and the warranty will become void. -
Page 21: Product Specifications
Pure-12A 12” Full Range Top Cabin Product Specifications Model: Pure-12A 12” Full Range Top Cabin System: 2-way active full range Power supply: 120/230 V AC, 50/60 Hz Power consumption: Max. 600 W AMP power: 600 W Continuous, Bi-AMP(Class D 500 W LF, 100 W HF), 1200 W Peak Speaker: 12”... -
Page 22: Notes
Pure-12A 12” Full Range Top Cabin Notes Order code: D3721... - Page 23 Pure-12A 12” Full Range Top Cabin Order code: D3721...
