Summary of Contents for DAPAudio Pure-18AS

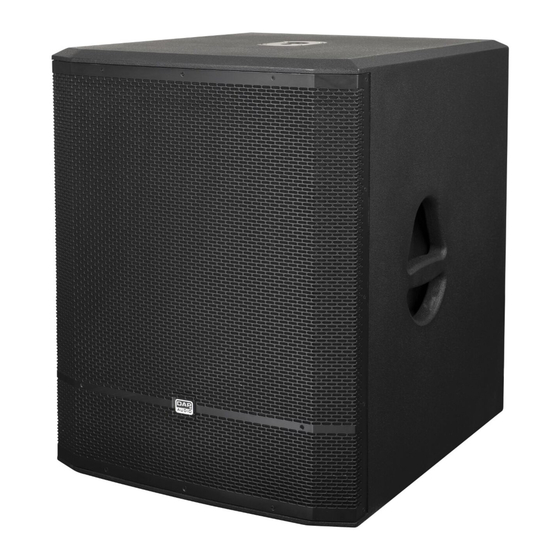

- Page 1 MANUAL ENGLISH Pure-18AS 18” Subwoofer with DSP Order code: D3725 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Back ....................................6 Installation ................................... 8 Setup and Operation ................................ 9 Connection Example 1 (2 x Pure-10A/Pure-12A/Pure-15A and 2 x Pure-15AS/Pure-18AS) ......9 Connection Example 2 (2 x Pure-10A/Pure-12A/Pure-15A and 1 x Pure-15AS/Pure-18AS) ......10 Control Panel ................................11 Main Menu Options ..............................11 1. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DAP Audio Pure-18AS 18” Subwoofer with DSP ● Pro power cable (1,5 m) ●... - Page 4 Only use device indoors, avoid contact with water or other liquids. ● Prevent distortion! Make sure that all components connected to the Pure-18AS have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits.
-
Page 5: Operating Determinations
Pure-18AS 18” Subwoofer with DSP Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device
12" and 15" units. The subwoofer is equipped with a 24-bit DSP module with an LCD display. You have the possibility to set up the sound that matches the requirements of your venue. If you are looking for a way to add Pure bass to your venue, then the Pure-18AS is your answer. ●... -
Page 7: Back
Pure-18AS 18” Subwoofer with DSP Back Fig. 02 01) LCD display 02) Combo 3-pin XLR/6,3 mm jack connector, INPUT 1 Connect a line level device or a microphone. 03) Combo 3-pin XLR/6,3 mm jack connector, INPUT 2 Connect a line level device or a microphone. - Page 8 Pure-18AS 18” Subwoofer with DSP Fig. 03 14) Gain control, INPUT 1 Turn the control to set gain for input 1. 15) 3-pin XLR connector, LINK 1 Connect a speaker. 16) Menu control Turn/press the control to navigate through the main menu.
-
Page 9: Installation
Pure-18AS 18” Subwoofer with DSP Installation Remove all packing materials from the Pure-18AS. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Setup And Operation
Follow the steps below. 01) Connect the outputs on your mixer with the inputs on the Pure-15AS/Pure-18AS. 02) Connect the Link connectors on the Pure-15AS/Pure-18AS with the input connectors on the Pure- 10A/Pure-12A/Pure-15A. -
Page 11: Connection Example 2 (2 X Pure-10A/Pure-12A/Pure-15A And 1 X Pure-15As/Pure-18As)
Follow the steps below. 01) Connect the outputs on your mixer with the inputs on the Pure-15AS/Pure-18AS. 02) Connect the Link connectors on the Pure-15AS/Pure-18AS with the input connectors on the Pure- 10A/Pure-12A/Pure-15A. -
Page 12: Control Panel
Pure-18AS 18” Subwoofer with DSP Control Panel Press and turn the control to navigate through the menu options. Fig. 07 Display Off after 60 seconds When the control (16) is neither pressed or turned for 60 seconds, the display will turn off. -
Page 13: Lowpass
Pure-18AS 18” Subwoofer with DSP 1. Lowpass In this menu you can set the low pass filter frequency. 01) Turn the control (16) to select one of the 6 options: 02) Press the control (16) to confirm. 2. Limit In this menu you can set the signal threshold. -
Page 14: Contrast
Pure-18AS 18” Subwoofer with DSP 5. Contrast In this menu you can set the display contrast. 01) Turn the control (16) to set the display contrast. The adjustment range is between 0–20, from dark to brightest. 02) Press the control (16) to confirm. -
Page 15: Passwordset
Pure-18AS 18” Subwoofer with DSP 9. PasswordSet In this menu you can change the password. 01) Turn and press the control (16) to insert the current password. 02) Press the control (16) to confirm. 03) Turn and press the control (16) to insert the new password. -
Page 16: Recall
Pure-18AS 18” Subwoofer with DSP 06) Press the control (16) to confirm. 07) Repeat steps 3–6 to edit the remaining characters. 08) When done, turn the control (16) until the NAME indicator shows SAVE (to save the settings) or EXIT (to quit without saving). -
Page 17: Connection Cables
Pure-18AS 18” Subwoofer with DSP Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 18: Maintenance
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Pure-18AS, as this may damage the unit and the warranty will become void. -
Page 19: Product Specifications
Pure-18AS 18” Subwoofer with DSP Product Specifications Model: Pure-18AS 18” Subwoofer with DSP System: Active subwoofer Power supply: 120/230 V AC, 50/60 Hz Power RMS: 722 W RMS Speaker: 18” Heavy duty Woofer with 4” Voicecoil Frequency response (+/-6 dB): 35 Hz–150 Hz (High-pass dependent) - Page 20 ©2020 DAP Audio...
